SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

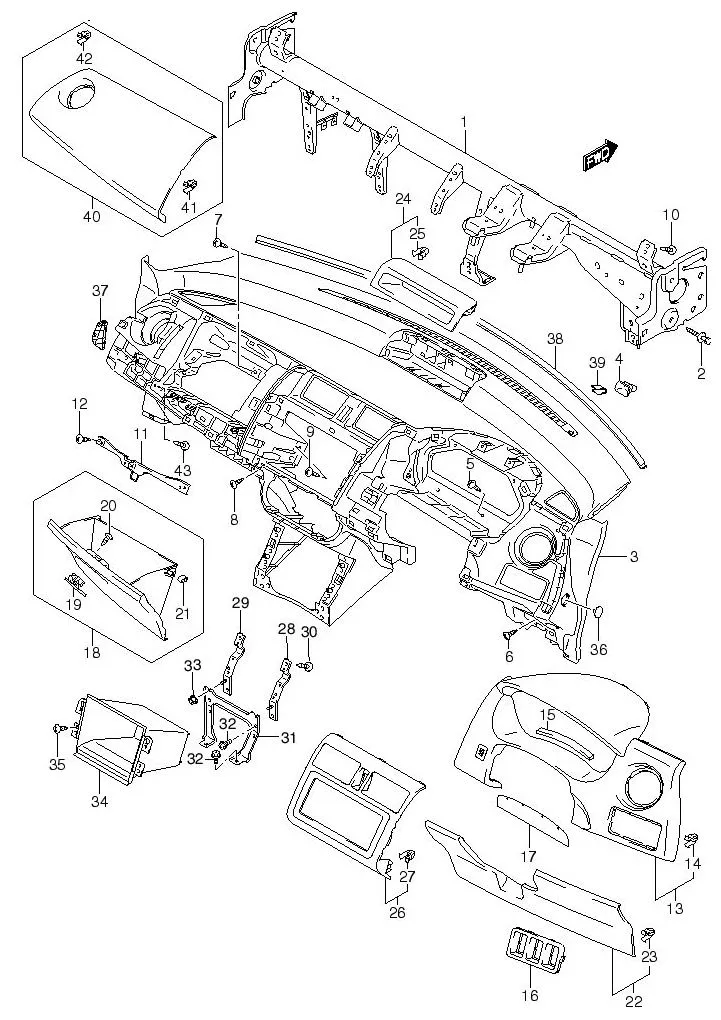

FIG.87 INSTRUMENT PANEL

FIG.87 INSTRUMENT PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 73200-63J00-000		 MEMBER, STEERING SUPPORT 1 -
2 73291-50G20-000
SUB: 73291-50G03-000		 BOLT 4 Rp42.500
3 DISCONTINUE
SUB: 73111B63J00NP4Z		 PANEL, INSTRUMENT MAIN (GRAY) 1 -
4 73123-51K00-000
SUB: 73123-65J00-000		 SOCKET, PIN 5 Rp43.000
5 03241-0512A-000
SUB: 03241B0512AN000		 SCREW, METER HOLE 2 Rp3.500
6 03241-0512A-000
SUB: 03241B0512AN000		 SCREW, DRIVER SIDE 2 Rp3.500
7 03241-0512A-000
SUB: 03241B0512AN000		 SCREW, AIR BAG HOLE 1 Rp3.500
8 03241-0512A-000
SUB: 03241B0512AN000		 SCREW, GLOVE BOX SIDE 2 Rp3.500
9 03241-0512A-000
SUB: 03241B0512AN000		 SCREW, CTR 2 Rp3.500
10 03541-0516A-000
SUB: 03541B0516AN000		 SCREW, UPPER 2 Rp3.500
11 DISCONTINUE
SUB: 73250-62J00-000		 REINF, GLOVE BOX UPPER 1 -
12 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 3 Rp3.500
13 DISCONTINUE
SUB: 73311-62J00-P4Z		 PANEL, CLUSTER (GRAY) 1 -
14 09409-08326-000
SUB: 09409B08326N000		 CLIP 8 Rp8.000
15 73314-62J00-000 SEAL, INSTRUMENT PANEL CLUSTER 1 Rp34.000
16 DISCONTINUE
SUB: 73312-62J00-P4Z		 BEZEL, SWITCH (GRAY) 1 -
17 73313-80J00-000
SUB: 73313-63J00-000		 BLIND, STRG COLUMN HOLE 1 Rp84.500
18 73410-63J02-P4Z
SUB: 73410-63J00-P4Z		 BOX, GLOVE (GRAY) 1 Rp1.257.500
19 73430-63J02-P4Z
SUB: 73430-63J00-P4Z		 LOCK, GROVE BOX (GRAY) 1 Rp361.000
20 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 2 Rp3.500
21 73413-63J00-000 CUSHION, GROVE BOX 2 Rp33.000
22 73811-62J00-P4Z COVER, STRG COLUMN HOLE (GRAY) 1 Rp516.000
23 09409-08326-000
SUB: 09409B08326N000		 CLIP 6 Rp8.000
24 DISCONTINUE
SUB: 73831-62J00-P4Z		 GARNISH, DISPLAY (GRAY) 1 -
25 09409-08326-000
SUB: 09409B08326N000		 CLIP 4 Rp8.000
26 73821-63J10-P4Z GARNISH, CTR (GRAY) 1 Rp434.500
27 09409-08326-000
SUB: 09409B08326N000		 CLIP 4 Rp8.000
28 DISCONTINUE
SUB: 73261-62J00-000		 REINF, CTR LOWER RH 1 -
29 DISCONTINUE
SUB: 73262-62J00-000		 REINF, CTR LOWER LH 1 -
30 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
31 DISCONTINUE
SUB: 73271-62J00-000		 BRACKET, CTR LOWER 1 -
32 02162-0612A-000 SCREW 4 Rp11.000
33 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
34 DISCONTINUE
SUB: 73840-63J01-P4Z		 BOX, CTR LOWER (GRAY) 1 -
35 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
36 73871-73H00-P4Z
SUB: 73871B73H00NP4Z		 CAP, SIDE RH (GRAY) 1 Rp9.000
37 DISCONTINUE
SUB: 73871-62J00-P4Z		 CAP, SIDE LH (GRAY) 1 -
38 73121-65J11-000 SILENCER, TOP 1 Rp216.500
39 DISCONTINUE
SUB: 56313B20E00N000		 PAD 3 -
40 73921M75J10-P4Z
SUB: 73921M75J00-P4Z		 COVER, AIR BAG HOLE (GRAY) 1 Rp302.000
41 09409-08326-000
SUB: 09409B08326N000		 CLIP 4 Rp8.000
42 09409-08332-000 CLIP 4 Rp18.000
43 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
