SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

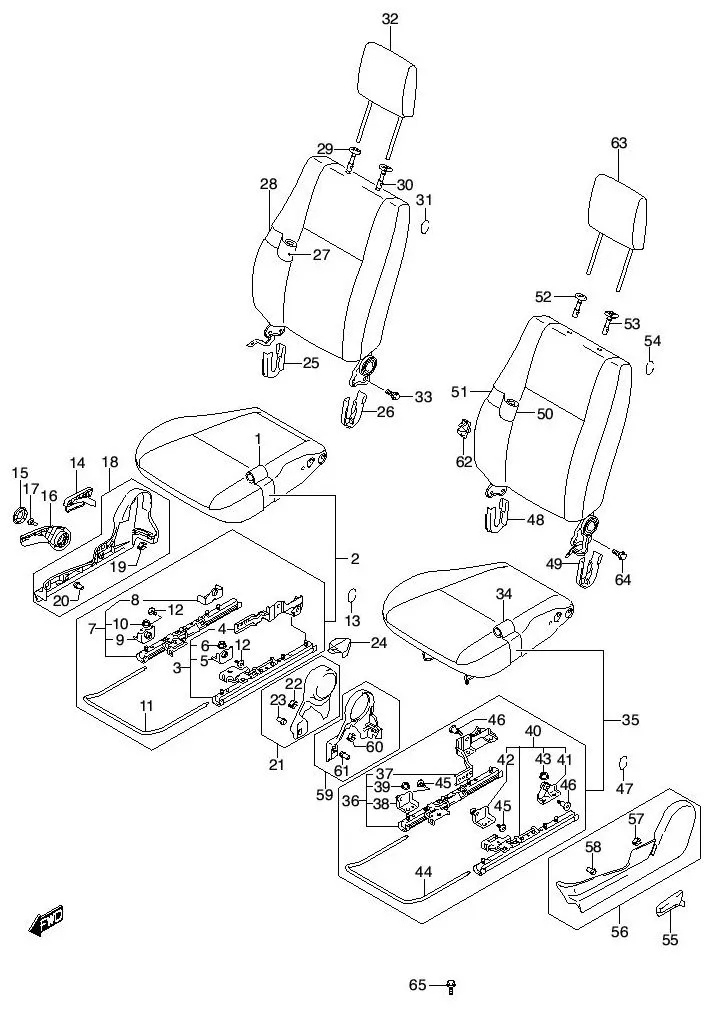

FIG.111 FRONT SEAT

FIG.111 FRONT SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 85180-63J70-EUE		 TRIM, FR CUSHION RH 1 -
2 DISCONTINUE
SUB: 85105-63JJ0-000		 CUSHION SUB ASSY, FR RH 1 -
3 DISCONTINUE
SUB: 86601-63J70-000		 ADJUSTER SUB ASSY, INSIDE 1 -
4 DISCONTINUE
SUB: 86712-63J70-000		 RISER 1 -
5 DISCONTINUE
SUB: 86721-63J70-000		 RISER 1 -
6 08316-1010A-000
SUB: 08316B1010AN000		 NUT 3 Rp3.500
7 DISCONTINUE
SUB: 86603-63J70-000		 ADJUSTER SUB ASSY, OUTSIDE 1 -
8 DISCONTINUE
SUB: 86641-63J70-000		 RISER 1 -
9 DISCONTINUE
SUB: 86710-63J70-000		 RISER 1 -
10 08316-1010A-000
SUB: 08316B1010AN000		 NUT 3 Rp3.500
11 DISCONTINUE
SUB: 86691-63J00-000		 HANDLE, ADJUSTER 1 -
12 DISCONTINUE
SUB: 86717-63J70-000		 BOLT 4 -
13 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 11 Rp9.000
14 85211-65JA0-P4Z
SUB: 85211-65J00-P4Z		 KNOB, RECLINING RH (GRAY) 1 Rp90.000
15 DISCONTINUE
SUB: 85214-63J20-P4Z		 CAP, LIFTER LEVER (GRAY) 1 -
16 DISCONTINUE
SUB: 85213-65J00-P4Z		 LEVER, SEAT LIFTER (GRAY) 1 -
17 09132-05043-000
SUB: 09132B05043N000		 SCREW 2 Rp17.500
18 85220-63J20-P4Z COVER, OUTSIDE RH (GRAY) 1 Rp488.000
19 09409-10308-000
SUB: 09409B10308N000		 CLIP 1 Rp6.500
20 09409-10313-000 CLIP 2 Rp16.500
21 85240-65J00-P4Z COVER, INSIDE LH (GRAY) 1 Rp141.000
22 09409-10308-000
SUB: 09409B10308N000		 CLIP 1 Rp6.500
23 09409-10313-000 CLIP 1 Rp16.500
24 DISCONTINUE
SUB: 85243-63J70-000		 COVER, RISER INSIDE 1 -
25 DISCONTINUE
SUB: 85222M63J00-P4Z		 COVER, BACK FRAME RH (GRAY) 1 -
26 DISCONTINUE
SUB: 85242-63J00-P4Z		 COVER, BACK FRAME LH (GRAY) 1 -
27 DISCONTINUE
SUB: 85380-63J00-EUE		 TRIM, FR BACK RH 1 -
28 DISCONTINUE
SUB: 85305B63JG0N000		 BACK SUB ASSY, FR RH 1 -
29 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 -
30 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 -
31 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 2 Rp9.000
32 DISCONTINUE
SUB: 86401-65J00-NL5		 HEADRESTRAINT ASSY (BLACK) 1 -
33 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 4 Rp5.500
34 DISCONTINUE
SUB: 85680-63J50-EUE		 TRIM, FR CUSHION LH 1 -
35 DISCONTINUE
SUB: 85106-63JS0-000		 CUSHION SUB ASSY, FR LH 1 -
36 DISCONTINUE
SUB: 86602-63J50-000		 ADJUSTER SUB ASSY, INSIDE 1 -
37 DISCONTINUE
SUB: 86762-63J50-000		 RISER 1 -
38 DISCONTINUE
SUB: 86721-63J50-000		 RISER 1 -
39 08316-1010A-000
SUB: 08316B1010AN000		 NUT 3 Rp3.500
40 DISCONTINUE
SUB: 86604-63J50-000		 ADJUSTER SUB ASSY, OUTSIDE 1 -
41 DISCONTINUE
SUB: 86641-63J50-000		 RISER 1 -
42 DISCONTINUE
SUB: 86711-63J50-000		 RISER 1 -
43 08316-1010A-000
SUB: 08316B1010AN000		 NUT 3 Rp3.500
44 DISCONTINUE
SUB: 86691-63J00-000		 HANDLE, ADJUSTER 1 -
45 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 2 Rp5.500
46 01550-1035A-000
SUB: 01550B1035AN000		 BOLT 2 Rp5.500
47 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 11 Rp9.000
48 DISCONTINUE
SUB: 85222M63J00-P4Z		 COVER, BACK FRAME RH (GRAY) 1 -
49 DISCONTINUE
SUB: 85242-63J00-P4Z		 COVER, BACK FRAME LH (GRAY) 1 -
50 DISCONTINUE
SUB: 85880-63J50-EUE		 TRIM, FR BACK 1 -
51 DISCONTINUE
SUB: 85306-63JL0-000		 BACK SUB ASSY, FR LH 1 -
52 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 -
53 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 -
54 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 2 Rp9.000
55 85711-65JA0-P4Z
SUB: 85711-65J00-P4Z		 KNOB, RECLINING LH (GRAY) 1 Rp81.500
56 DISCONTINUE
SUB: 85720-63J20-P4Z		 COVER, OUTSIDE LH (GRAY) 1 -
57 09409-10308-000
SUB: 09409B10308N000		 CLIP 1 Rp6.500
58 09409-10313-000 CLIP 2 Rp16.500
59 85740-65J00-P4Z COVER, INSIDE LH (GRAY) 1 Rp170.500
60 09409-10308-000
SUB: 09409B10308N000		 CLIP 1 Rp6.500
61 09409-10313-000 CLIP 1 Rp16.500
62 86590-58J01-P4Z HOOK 1 Rp110.500
63 DISCONTINUE
SUB: 86401-65J00-NL5		 HEADRESTRAINT ASSY (BLACK) 1 -
64 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 4 Rp5.500
65 09119-08097-000 BOLT 8 Rp32.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
