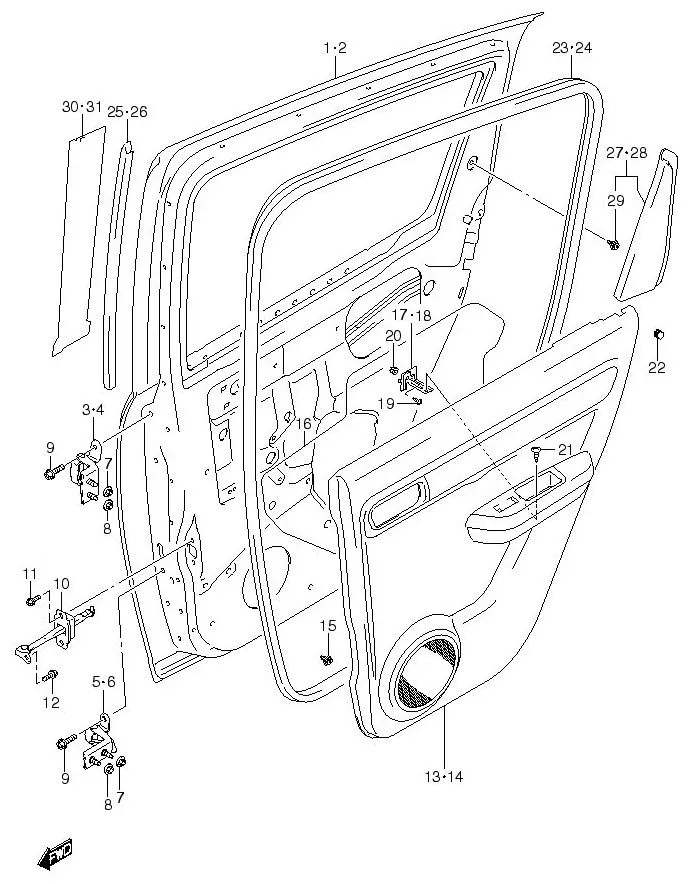

FIG.104 REAR DOOR PANEL

FIG.104 REAR DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68003-63J00-000 PANEL ASSY, REAR DOOR RH 1 Rp7.453.000
2 68004-63J00-000 PANEL ASSY, REAR DOOR LH 1 Rp7.453.000
3 69410-63J00-000 HINGE, REAR DOOR UPPER RH 1 Rp528.000
4 69420-63J00-000 HINGE, REAR DOOR UPPER LH 1 Rp528.000
5 69430-63J00-000 HINGE, REAR DOOR LOWER RH 1 Rp528.000
6 69440-63J00-000 HINGE, REAR DOOR LOWER LH 1 Rp528.000
7 09159-08132-000 NUT, PILLAR 4 Rp19.500
8 08361-2508A-000 NUT, PILLAR 4 Rp16.500
9 09103M08557-000
SUB: 09103M08389-000		 BOLT, DOOR (8X24) 8 Rp8.500
10 81810-54G04-000
SUB: 81810-54G01-000		 STOP, REAR DOOR OPEN 2 Rp447.500
11 09122-86004-000 SCREW (6X20) 4 Rp15.000
12 09112-08004-000 SCREW (8X25) 2 Rp26.000
13 DISCONTINUE
SUB: 83730-63J00-EUG		 TRIM, REAR DOOR RH 1 -
14 DISCONTINUE
SUB: 83740-63J00-EUG		 TRIM, REAR DOOR LH 1 -
15 09409-10327-000
SUB: 09409B10312N000		 CLIP 12 Rp5.000
16 DISCONTINUE
SUB: 83913-63J00-000		 COVER, DOOR SEALING 2 -
17 DISCONTINUE
SUB: 83751-63J00-000		 BRACKET, DOOR TRIM RH 1 -
18 DISCONTINUE
SUB: 83756-63J00-000		 BRACKET, DOOR TRIM LH 1 -
19 03241M0612A-000 SCREW 2 Rp6.500
20 71851M70F00-000
SUB: 09148M06007-000		 NUT 2 Rp4.000
21 09132-05058-000 SCREW 2 Rp14.000
22 82711-65J00-000 STOPPER, DOOR 2 Rp34.000
23 84661-63J00-000 WEATHERSTRIP, DOOR OPENING RH 1 Rp914.000
24 84671-63J00-000 WEATHERSTRIP, DOOR OPENING LH 1 Rp914.000
25 84669-63J00-000 WEATHERSTRIP, CTR PLR RH 1 Rp293.500
26 84679-63J00-000 WEATHERSTRIP, CTR PLR LH 1 Rp284.000
27 83796-63J00-5PK GARNISH, DOOR INNER RH (BLACK) 1 Rp183.000
28 83797-63J00-5PK GARNISH, DOOR INNER LH (BLACK) 1 Rp183.000
29 09409-10327-000
SUB: 09409B10312N000		 CLIP (BLACK) 4 Rp5.000
30 83931-63J00-0CE TAPE, DOOR OUT FR RH (BLACK) 1 Rp733.000 BODY COLOR:ZCT,ZCW,ZKB,ZXA,Z2S
31 DISCONTINUE
SUB: 83932-63J00-0CE		 TAPE, DOOR OUT FR LH (BLACK) 1 - BODY COLOR:ZCT,ZCW,ZKB,ZXA,Z2S

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
