SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

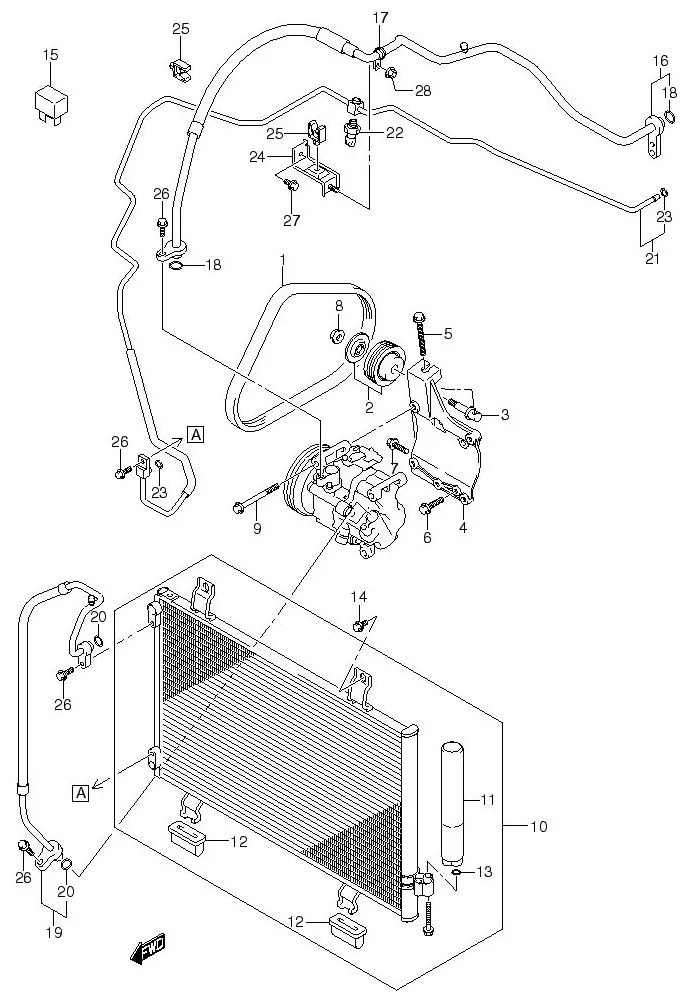

FIG.115 AIR CONDITIONER

FIG.115 AIR CONDITIONER
No No. Part Description Qty Price Per Pcs Remarks
1 17521-86550-000
SUB: 17521-86500L000		 V BELT (4PK815) 1 Rp64.500
2 49160-70AA0-000 PULLEY ASSY, BELT TENSION 1 Rp949.000
3 49161-60B10-000 BOLT 1 Rp128.500
4 95111-63J00-000 BRACKET, COMPRESSOR 1 Rp916.500
5 95126-58J00-000
SUB: 09103-08352-000		 BOLT 1 Rp48.500
6 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 3 Rp4.000
7 01550-0855A-000 BOLT 1 Rp3.500
8 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
9 01550-0875A-000 BOLT 4 Rp6.000
10 95310-63J10-000 CONDENSER ASSY 1 Rp4.147.000
11 95330-68H10-000
SUB: 95330-68H00-000		 DRYER, RECEIVER 1 Rp1.003.000
12 DISCONTINUE
SUB: 95851-75F00L000		 BUSH 2 -
13 95891-50G00-000
SUB: 95891B50G00N000		 O RING 4 Rp12.500
14 02162-0612A-000 BOLT 2 Rp11.000
15 38860-76F01-000
SUB: 38860B76F01N000		 RELAY 1 Rp47.000
16 95710-63J50-000 HOSE, SUCTION 1 Rp1.144.000
17 95771-70G10-000
SUB: 95771B70G10N000		 CLAMP 1 Rp22.500
18 95896-50G00-000
SUB: 95896B50G00N000		 O RING 2 Rp19.000
19 95720-63J00-000 HOSE, DISCHARGE 1 Rp862.000
20 95895-50G00-000
SUB: 95895B50G00N000		 O RING 2 Rp12.500
21 95731-63J50-000 PIPE, LIQUID 1 Rp1.568.000
22 95546-58J00-000
SUB: 95546B58J00N000		 SENSOR, PRESSURE 1 Rp326.000
23 95891-50G00-000
SUB: 95891B50G00N000		 O RING 2 Rp12.500
24 DISCONTINUE
SUB: 95781-63J00-000		 STAY, SUCTION HOSE 1 -
25 09403M08331-000 CLAMP 4 Rp6.500
26 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 5 Rp3.500
27 02162-0612A-000 SCREW 1 Rp11.000
28 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
