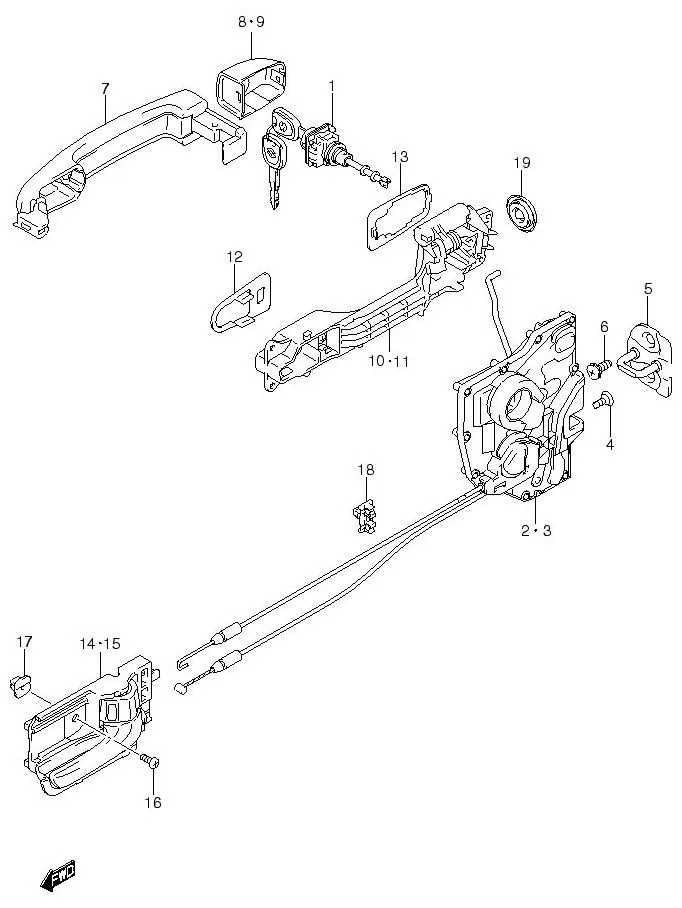

FIG.103 FRONT DOOR LOCK

FIG.103 FRONT DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1-Sep 82813-63J10-ZBD CAP, DOOR OUT LH (BLACK) 1 -
1-Jul 82812-63J00-ZBD HANDLE, DOOR OUT (BLACK) 2 -
1 DISCONTINUE
SUB: 82270-63810-000		 CYLINDER, FRONT DOOR LOCK RH 1 -
1-Aug 82813-63J00-ZBD CAP, DOOR OUT RH (BLACK) 1 -
2 82201-63J15-000
SUB: 82201-63J10-000		 LATCH ASSY, FRONT DOOR RH 1 Rp1.973.000
2-Sep 82813-63J10-ZCT CAP, DOOR OUT LH (BLUE) 1 -
2-Jul 82812-63J00-ZCT HANDLE, DOOR OUT (BLUE) 2 -
2-Aug 82813-63J00-ZCT CAP, DOOR OUT RH (BLUE) 1 -
3 82202-63J25-000
SUB: 82202-63J20-000		 LATCH ASSY, FRONT DOOR LH 1 Rp2.019.000
3-Sep 82813-63J10-ZCW CAP, DOOR OUT LH (BLUE) 1 Rp230.500
3-Jul 82812-63J00-ZCW HANDLE, DOOR OUT (BLUE) 2 Rp539.000
3-Aug DISCONTINUE
SUB: 82813-63J00-ZCW		 CAP, DOOR OUT RH (BLUE) 1 -
4-Sep 82813-63J10-ZKB CAP, DOOR OUT LH (RED) 1 -
4-Aug 82813-63J00-ZKB CAP, DOOR OUT RH (RED) 1 -
4-Jul 82812-63J00-ZKB HANDLE, DOOR OUT (RED) 2 -
4 09137-06028-000 SCREW (6X18) 6 Rp18.500
5-Sep 82813-63J10-ZXA CAP, DOOR OUT LH (LOCAL COLOR) 1 - PAINT TO MATCH
5-Jul 82812-63J00-ZXA HANDLE, DOOR OUT (LOCAL COLOR) 2 - PAINT TO MATCH
5-Aug 82813-63J00-ZXA CAP, DOOR OUT RH (LOCAL COLOR) 1 - PAINT TO MATCH
5 82610-63J00-000 STRIKER, DOOR LATCH 2 Rp174.500
6-Sep 82813-63J10-Z2S CAP, DOOR OUT LH (SILVER) 1 Rp203.000
6-Aug 82813-63J00-Z2S CAP, DOOR OUT RH (SILVER) 1 Rp199.500
6-Jul 82812-63J00-Z2S HANDLE, DOOR OUT (SILVER) 2 Rp476.000
6 DISCONTINUE
SUB: 09137M08004-000		 SCREW (8X18) 4 -
10 82811-63J00-000 FRAME, DOOR OUT RH 1 Rp452.500
11 82821-63J00-000 FRAME, DOOR OUT LH 1 Rp452.500
12 82814-63J00-000 PAD, DOOR OUT 2 Rp46.500
13 82815-63J00-000 CUSHION, SDIDE DOOR OUT 2 Rp48.500
14 83110-63J01-P4Z
SUB: 83110-63J00-P4Z		 HANDLE, DOOR INSIDE RH (GRAY) 1 Rp315.500
15 83130-63J01-P4Z
SUB: 83130-63J00-P4Z		 HANDLE, DOOR INSIDE LH (GRAY) 1 Rp315.500
16 09132-05058-000 SCREW (5X12) 2 Rp14.000
17 09148-05031-000 NUT 2 Rp18.000
18 83271M50E00-000 CLIP 2 Rp6.500
19 09250-25007-000 PLUG, HANDLE HOLE (OD:33.5) 2 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
