SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

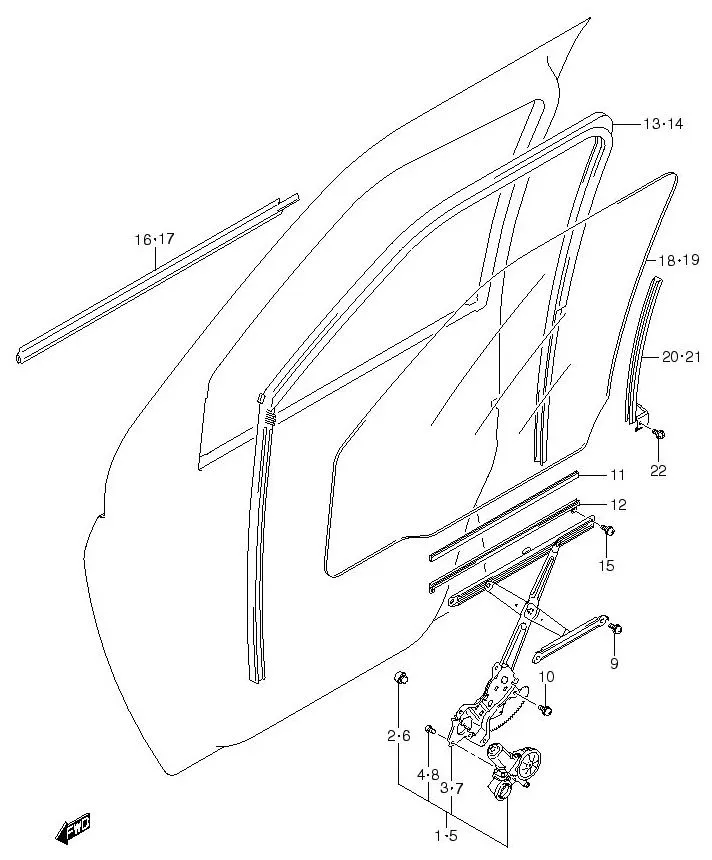

FIG.102 FRONT DOOR REGURALATOR

FIG.102 FRONT DOOR REGURALATOR
No No. Part Description Qty Price Per Pcs Remarks
1 83401-63J51-000
SUB: 83401-63J50-000		 REGULATOR ASSY, WINDOW RH 1 Rp3.145.500
2 82711-65J00-000 PAD 1 Rp34.000
3 DISCONTINUE
SUB: 83410-63J50-000		 REGULATOR, WINDOW RH 1 -
4 09139-05063-000 SCREW (5X11) 3 Rp16.000
5 DISCONTINUE
SUB: 83402-63J50-000		 REGULATOR ASSY, WINDOW LH 1 -
6 82711-65J00-000 PAD 1 Rp34.000
7 83440-63J50-000 REGULATOR, WINDOW LH 1 Rp985.500
8 09139-05063-000 SCREW (5X11) 3 Rp16.000
9 DISCONTINUE
SUB: 01580-0612A-000		 SCREW 4 -
10 DISCONTINUE
SUB: 01580-0612A-000		 SCREW 4 -
11 83691M76G00-000 RUBBER, GLASS BOTTOM 4 Rp8.000
12 83610-77A00-000 CHANNEL, GLASS BOTTOM 2 Rp151.500
13 83661-63J12-000
SUB: 83661-63J11-000		 RUN, FRONT DOOR GLASS RH 1 Rp779.500
14 83665-63J12-000
SUB: 83665-63J11-000		 RUN, FRONT DOOR GLASS LH 1 Rp779.500
15 02112M7612A-000 SCREW 4 Rp5.500
16 83811-63J00-000 WEATHERSTRIP, DOOR OUT RH 1 Rp402.000
17 83821-63J00-000 WEATHERSTRIP, DOOR OUT LH 1 Rp402.000
18 DISCONTINUE
SUB: 84531B63J00N000		 GLASS, FRONT DOOR WINDOW RH 1 -
19 DISCONTINUE
SUB: 84536B63J00N000		 GLASS, FRONT DOOR WINDOW LH 1 -
20 DISCONTINUE
SUB: 81730-63J00-000		 SASH, FR DOOR RR RH 1 -
21 DISCONTINUE
SUB: 81740-63J00-000		 SASH, FR DOOR RR LH 1 -
22 09122-76003-000 SCREW (6X16) 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
