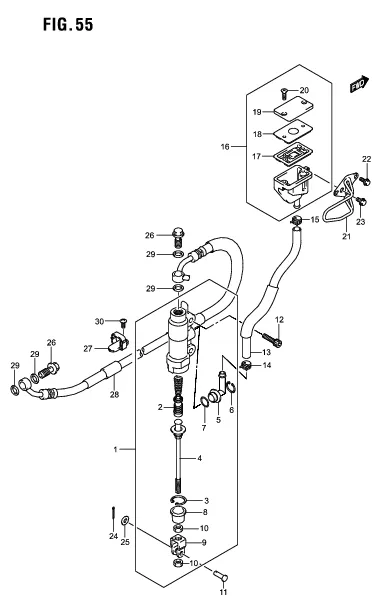

FIG. 55 REAR MASTER CYLINDER

FIG. 55 REAR MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 69600-48H00-000 CYLINDER ASSY, REAR MASTER 1 Rp1.506.500
2 69600-34810-000 .PISTON/CUP SET 1 Rp267.000
3 69665-47H00-000 .CIRCLIP 1 Rp32.000
4 69670-24A00-000 .ROD, PUSH 1 Rp552.500
5 69672-00B20-000 .CONNECTOR 1 Rp18.000
6 DISCONTINUE
SUB: 69674-00B20-000		 .CIRCLIP 1 -
7 69686-34200-000 .O RING 1 Rp8.000
8 69691-00A00-000 .BOOT 1 Rp13.500
9 69692-44H00-000 .YOKE 1 Rp41.000
10 69693-05A00-000 .NUT 2 Rp5.500
11 69697-48H00-000 PIN, REAR MASTER CYLINDER 1 Rp22.500
12 69698-48H00-000 BOLT, REAR MASTER CYLINDER 1 Rp30.500
13 69730-48H00-X07
SUB: 69730-48H00-000		 HOSE, REAR RESERVOIR TANK 1 Rp181.000
14 69735-48H00-000 CLIP, HOSE LOWER 1 Rp23.000
15 69735-48H10-000 CLIP, HOSE UPPER 1 Rp23.000
16 69740-48H00-000 TANK ASSY, REAR RESERVOIR 1 Rp561.500
17 DISCONTINUE
SUB: 59667-04700-000		 .DIAPHRAGM 1 -
18 59668-14F00-000 .PLATE 1 Rp73.000
19 59669-48H00-000 .CAP 1 Rp109.500
20 69689-48H00-000 .SCREW 2 Rp17.000
21 69760-48H20-000
SUB: 69760-48H10-000		 GUARD, REAR RESERVOIR TANK 1 Rp85.000
22 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000
23 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 1 Rp6.500
24 04111-2015A-000 PIN 1 Rp4.500
25 08322-0106A-000 WASHER 1 Rp2.500
26 59492-48H00-000 BOLT, BRAKE FLUID 2 Rp33.000
27 61196-48H00-000 GUIDE, REAR BRAKE HOSE 2 Rp23.500
28 69480-48H00-000 HOSE, REAR BRAKE 1 Rp635.500
29 59464-48H00-000 WASHER, BRAKE FLUID 4 Rp18.000
30 02142-0616A-000 SCREW 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
