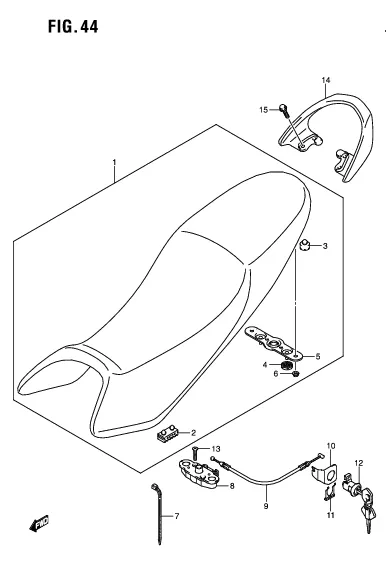

FIG. 44 SEAT

FIG. 44 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-48H00-PEH SEAT ASSY (BLACK) 1 Rp1.317.500
2 45147-12FB0-000 .CUSHION, SEAT MOUNT 4 Rp26.000
3 45148-20G50-000 .CUSHION, SEAT MOUNT 2 Rp20.000
4 45213-13601-000 .CUSHION, SEAT LOCK STRIKER 2 Rp21.000
5 DISCONTINUE
SUB: 45290-28D00-000		 .STRIKER, SEAT LOCK 1 -
6 08316-1006A-000
SUB: 08316-1006B-000		 .NUT 1 Rp2.000
7 36990-32G10-000 CLAMP, SEAT LOCK CABLE 1 Rp17.500
8 45220-45F10-000 BRACKET, SEAT SUPPORT 1 Rp84.500
9 45280-48HB0-000
SUB: 45280-48H00-000		 CABLE, SEAT LOCK 1 Rp182.500
10 45288-09GB0-000 GUIDE, SEAT LOCK CABLE 1 Rp23.000
11 45289-09GB0-000 PLATE, SEAT LOCK ASSY 1 Rp19.000
12 95700-09GC0-000 LOCK ASSY, SEAT 1 Rp175.000
13 02122-0630B-000 SCREW 2 Rp15.500
14 46211-48H00-YLN HANDLE, PILLION RIDER (SILVER) 1 Rp1.253.500
15 01550-0825A-000 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
