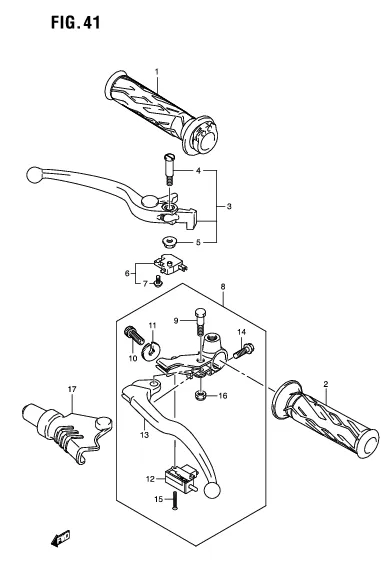

FIG. 41 HANDLE LEVER

FIG. 41 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-21H02-000
SUB: 57110-48H00-000		 GRIP, THROTTLE 1 Rp128.000
2 57211-21H01-000
SUB: 57211-48H00-000		 GRIP LH 1 Rp86.000
3 57300-48H01-000
SUB: 57300-48H00-000		 LEVER ASSY, BRAKE 1 Rp1.152.500
4 57431-17H02-000
SUB: 57431-48H00-000		 .BOLT, LEVER PIVOT 1 Rp55.500
5 08319-2106A-000 .NUT 1 Rp5.000
6 57460-14J02-000
SUB: 57460-14J01-000		 SWITCH ASSY, FRONT BRAKE 1 Rp265.000
7 DISCONTINUE
SUB: 57465-17C00-000		 .SCREW 1 -
8 57500-48H01-000
SUB: 57500-48H00-000		 LEVER ASSY, CLUTCH 1 Rp498.000
9 57431-17H02-000
SUB: 57431-48H00-000		 .BOLT, LEVER PIVOT 1 Rp55.500
10 57441-48H00-000 .ADJUSTER, WIRE 1 Rp239.500
11 57442-48H00-000 .NUT, LOCK 1 Rp35.000
12 57560-48H00-000 .SWITCH ASSY, CLUTCH 1 Rp150.000
13 57621-48H01-000
SUB: 57621-48H00-000		 .LEVER, CLUTCH 1 Rp270.000
14 01547-0620B-000 .BOLT 1 Rp6.500
15 02122-0320A-000 .SCREW 1 Rp14.500
16 08319-2106A-000 .NUT 1 Rp5.000
17 57661-48H01-000
SUB: 57661-48H00-000		 COVER, CLUTCH LEVER 1 Rp29.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
