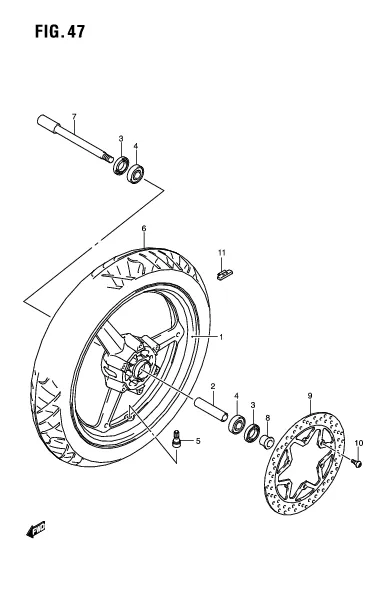

FIG. 47 FRONT WHEEL

FIG. 47 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54111-48H00-YGA WHEEL, FRONT(17M/CXMT3.00) (BLACK) 1 Rp2.762.000
1-Nov 55411-22H00-000
SUB: 55411-48H00-000		 BALANCER, WHEEL NO.1 0 Rp46.000
2 54731-48H00-000 SPACER, FRONT HUB BEARING 1 Rp61.500
2-Nov 55412-22H00-000
SUB: 55412-48H00-000		 BALANCER, WHEEL NO.2 0 Rp55.000
3 DISCONTINUE
SUB: 54742-12FH0-000		 SEAL, FRONT WHEEL BEARING 2 -
3-Nov 55413-22H00-000
SUB: 55413-48H00-000		 BALANCER, WHEEL NO.3 0 Rp62.000
4 08123-63027-000 BEARING 2 Rp34.500
5 43130-24A00-000 VALVE ASSY, WHEEL RIM (TR412) 1 Rp50.500
6 DISCONTINUE
SUB: 55110-48H00-000		 TIRE, FRONT (110/80-17M/C 57H) 1 -
7 54711-48H20-000
SUB: 54711-48H00-000		 AXLE, FRONT 1 Rp185.500
8 54751-48H00-000 SPACER, FRONT AXLE LH 1 Rp44.500
9 59221-48H00-000 DISC, FRONT BRAKE 1 Rp1.357.500
10 59421-48H00-000 BOLT, FRONT BRAKE DISC 6 Rp25.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
