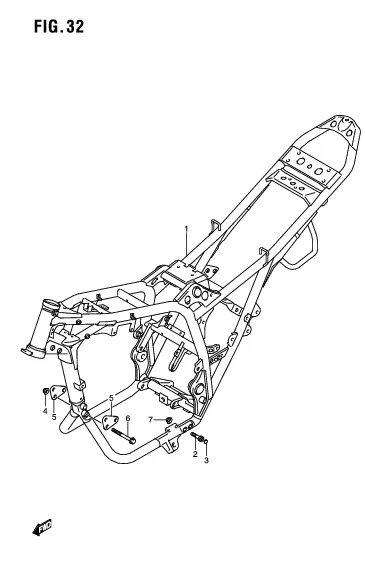

FIG. 32 FRAME

FIG. 32 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 41100-48H20-000 FRAME 1 Rp9.258.500
2 09106-10068-000 BOLT (10X37) 2 Rp21.500
3 DISCONTINUE
SUB: 09250-08012-000		 CAP (OD:12) 2 -
4 08319-3110A-000
SUB: 08319-3110B-000		 NUT 2 Rp4.500
5 41942-48H00-000 BRACKT, ENGINE MOUNTING FRONT 2 Rp25.000
6 09103-10445-000 BOLT (10X85) 2 Rp33.000
7 08319-3110A-000
SUB: 08319-3110B-000		 NUT 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
