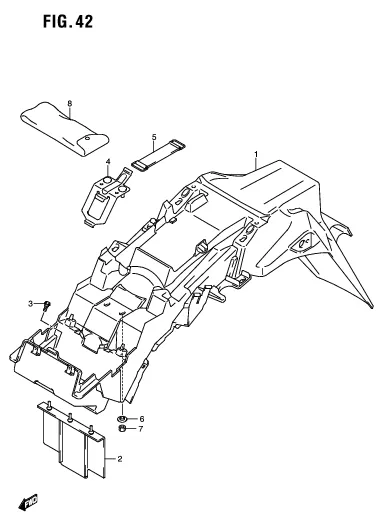

FIG. 42 REAR FENDER

FIG. 42 REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-48H02-000
SUB: 63111-48H00-000		 FENDER, REAR 1 Rp465.500
2 63113-48H01-000
SUB: 63113-48H00-000		 MUDGUARD, REAR FENDER 1 Rp56.500
3 09111-06107-000 BOLT (6X12) 6 Rp4.000
4 41550-48H00-000 HOLDER, TOOL 1 Rp58.000
5 47435-48H01-000
SUB: 47435-48H00-000		 BAND, TOOL 1 Rp57.000
6 47445-48H00-000 WASHER, TOOL HOLDER 2 Rp21.000
7 08316-1006A-000 NUT 2 Rp2.000
8 96510-48H01-000
SUB: 96510-48H00-000		 TOOL ASSY 1 Rp275.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
