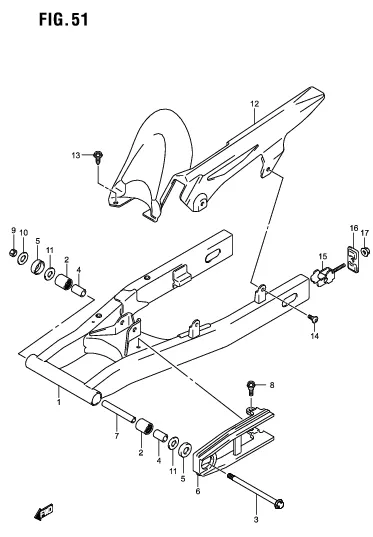

FIG. 51 REAR SWINGINGARM

FIG. 51 REAR SWINGINGARM
No No. Part Description Qty Price Per Pcs Remarks
1 61100-48H00-YGA SWINGINGARM, REAR (BLACK) 1 Rp1.789.500
2 09263-22078-000
SUB: 09263-22L01-000		 BEARING (22X29X30) 2 Rp103.000
3 61211-48H10-000
SUB: 61211-48H00-000		 SHAFT, PIVOT 1 Rp190.000
4 61251-48H00-000 SPACER, PIVOT BEARING 2 Rp126.500
5 61262-48H10-000
SUB: 61262-48H00-000		 COVER, PIVOT DUST 2 Rp29.500
6 61273-48H00-000 BUFFER, CHAIN TOUCH DEFENSE 1 Rp231.500
7 61282-48H00-000 SPACER, PIVOT CENTER 1 Rp83.000
8 09111-06072-000 BOLT (6X17.8) 2 Rp3.500
9 09159-14019-000 NUT 1 Rp88.500
10 09160-14067-000 WASHER (14.5X29X2.3) 1 Rp18.500
11 09160-14068-000 WASHER (14X34X1) 2 Rp17.000
12 61310-48H01-000
SUB: 61310-48H00-000		 CASE, CHAIN 1 Rp197.000
13 09111-06065-000 BOLT (6X16) 1 Rp4.000
14 09139-06168-000 SCREW (6X16) 2 Rp20.000
15 61410-48H00-000 ADJUSTER, CHAIN 2 Rp43.000
16 61421-48H10-000
SUB: 61421-48H00-000		 PLATE, CHAIN ADJUSTER GUIDE 2 Rp29.000
17 08319-3108A-000 NUT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
