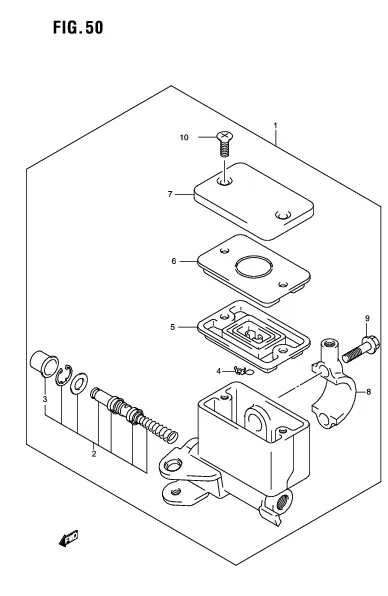

FIG. 50 FRONT MASTER CYLINDER

FIG. 50 FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59600-48H01-000
SUB: 59600-48H00-000		 CYLINDER ASSY, FRONT MASTER 1 Rp2.261.500
2 59600-03820-000 .PISTON & CUP SET 1 Rp221.500
3 59666-44300-000 ..BOOT 1 Rp16.000
4 59664-32F00-000 .PROTECTOR 1 Rp20.500
5 DISCONTINUE
SUB: 59667-49460-000		 .DIAPHRAGM 1 -
6 DISCONTINUE
SUB: 59668-41C00-000		 .PLATE, DIAPHRAGM 1 -
7 59669-48H00-000 .CAP 1 Rp109.500
8 59671-32F00-000 .HOLDER 1 Rp147.000
9 59675-02FA0-000 .BOLT 2 Rp9.000
10 69689-49300-000 .SCREW 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
