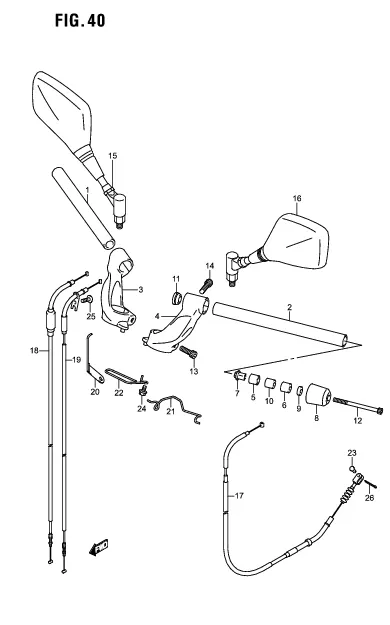

FIG. 40 HANDLE BAR

FIG. 40 HANDLE BAR
No No. Part Description Qty Price Per Pcs Remarks
1 56111-48H02-000
SUB: 56111-48H00-000		 HANDLEBAR RH 1 Rp418.000
2 56151-48H02-000
SUB: 56151-48H00-000		 HANDLEBAR LH 1 Rp418.000
3 56211-48H20-000
SUB: 56211-48H00-000		 HOLDER, HANDLEBAR RH 1 Rp1.584.500
4 56221-48H20-000
SUB: 56221-48H00-000		 HOLDER, HANDLEBAR LH 1 Rp1.272.000
5 56272-10G01-000
SUB: 56272-10G00-000		 EXPANDER, HANDLE BALANCER 2 Rp5.000
6 56272-42F00-000 EXPANDER, HANDLE BALANCER 2 Rp33.500
7 56273-10G10-000 NUT, HANDLE BALANCER 2 Rp20.500
8 56278-48H00-000 BALANCER, HANDLEBAR 2 Rp112.500
9 09160-06131-000 WASHER (6.5X16X4) 2 Rp19.000
10 09180-06161-000 SPACER (6.5X16X15) 2 Rp41.000
11 09250-18003-000 PLUG (OD:22) 2 Rp17.000
12 07130-0680B-000 BOLT 2 Rp29.000
13 07130-0825A-000 BOLT 2 Rp4.000
14 07130-0830A-000 BOLT 2 Rp33.500
15 56500-48H00-000 MIRROR ASSY, REAR VIEW RH 1 Rp399.500
16 56600-48H00-000 MIRROR ASSY, REAR VIEW LH 1 Rp399.500
17 58200-48HC0-000
SUB: 58200-48H00-000		 CABLE ASSY, CLUTCH 1 Rp806.000
18 58300-48HE0-000
SUB: 58300-48H00-000		 CABLE ASSY, THROTTLE NO.1 1 Rp562.000
19 58300-48HF0-000
SUB: 58300-48H10-000		 CABLE ASSY, THROTTLE NO.2 1 Rp641.500
20 58620-48H31-000 GUIDE, GUIDE 1 Rp44.000
21 58621-48H00-000 GUIDE, CLUTCH CABLE 1 Rp20.000
22 58621-48H10-000 GUIDE, CABLE 1 Rp25.500
23 09200-06071-000 PIN 1 Rp15.000
24 01550-0612B-000 BOLT 2 Rp16.500
25 02142-0510A-000
SUB: 02142-0510B-000		 SCREW 1 Rp4.000
26 04111-2015A-000 PIN 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
