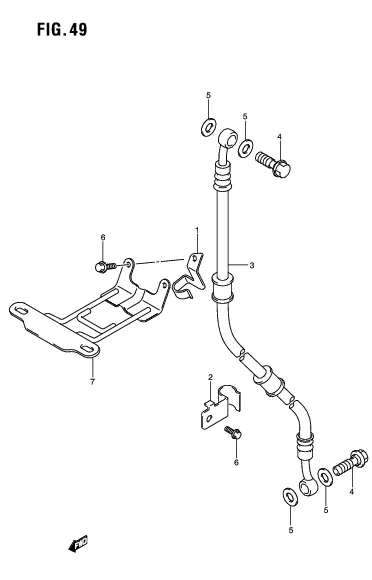

FIG. 49 FRONT BRAKE HOSE

FIG. 49 FRONT BRAKE HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 59261-48H00-000 CLAMP, FRONT BRAKE HOSE NO.1 1 Rp19.500
2 59269-48H00-000 CLAMP, FRONT BRAKE HOSE NO.2 1 Rp19.500
3 59480-48H00-000 HOSE, FRONT BRAKE 1 Rp418.000
4 59492-48H00-000 BOLT, BRAKE FLUID 2 Rp33.000
5 59464-48H00-000 WASHER, BRAKE FLUID 4 Rp18.000
6 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 3 Rp3.000
7 48190-48H10-000 PLATE, FRONT LICENSE 1 Rp191.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
