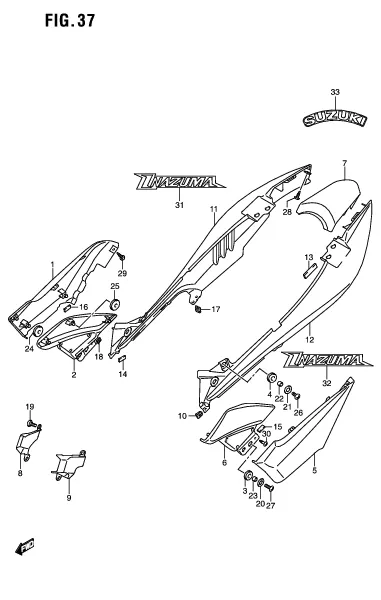

FIG. 37 FRAME COVER

FIG. 37 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 47111-48H00-YKV COVER, FRAME RH (BLACK) 1 Rp614.500
1-Dec 47841-48H00-YAY COVER, FRAME UPPER LH (BLACK) 1 Rp1.817.000
1-Nov 47831-48H00-YAY COVER, FRAME UPPER RH (BLACK) 1 Rp1.817.000
1-Jul 47311-48H00-YAY COVER, FRAME UPPER CENTER (BLACK) 1 Rp639.000
2 47121-48H00-AB4 COVER, FRAME FRONT RH 1 Rp547.000
2-Dec 47841-48H00-PDD COVER, FRAME UPPER LH (RED) 1 Rp1.943.500
2-Nov 47831-48H00-PDD COVER, FRAME UPPER RH (RED) 1 Rp1.943.500
2-Jul 47311-48H00-PDD COVER, FRAME UPPER CENTER (RED) 1 Rp522.500
3 47161-35F00-000 CUSHION, COVER FRONT 2 Rp68.000
4 47161-35F00-000 CUSHION, COVER UPPER 2 Rp68.000
5 47211-48H00-YKV COVER, FRAME LH (BLACK) 1 Rp614.500
6 47221-48H00-AB4 COVER, FRAME FRONT LH 1 Rp547.000
8 47351-48H00-000 COVER, FRAME HEAD RH 1 Rp30.500
9 47361-48H00-000 COVER, FRAME HEAD LH 1 Rp29.500
10 47399-48H00-000 NUT 4 Rp17.500
13 47845-48H00-000 CUSHION, COVER UPPER REAR 1 Rp25.000
14 47846-48H00-000 CUSHION, COVER UPPER 2 Rp14.500
15 47846-48H00-000 CUSHION, COVER FRONT 2 Rp14.500
16 47846-48H00-000 CUSHION, FRAME COVER 2 Rp14.500
17 48292-32GH0-000 CLIP, COVER UPPER 4 Rp18.000
18 93162-37G00-000 NUT, COVER FRAME FRONT 2 Rp21.000
19 47353-48H00-000 SCREW, FRAME HEAD COVER 4 Rp24.500
20 09160-06027-000
SUB: 09160-06077-000		 WASHER (6.5X20X1.2) 2 Rp6.500
21 09160-06027-000
SUB: 09160-06077-000		 WASHER (6.5X20X1.2) 2 Rp6.500
22 09180-06283-000 SPACER (6.5X10X7) 2 Rp13.000
23 09180-06283-000 SPACER (6.5X10X7) 2 Rp13.000
24 48169-12JA0-000
SUB: 09320-08018-000		 CUSHION 6 Rp15.000
25 48169-12JA0-000
SUB: 09320-08018-000		 CUSHION 4 Rp15.000
26 02142-0616A-000 SCREW 2 Rp3.000
27 02142-0620A-000 SCREW 2 Rp5.500
28 03541-0516A-000 SCREW 4 Rp3.500
29 03541-0516A-000 SCREW 2 Rp3.500
30 03541-0516A-000 SCREW 2 Rp3.500
31-1 68131-48H21-CRT
SUB: 68131-48H20-CRT		 EMBLEM, FRAME COVER RH (GRAY) FOR YAY 1 Rp36.500
31-2 68131-48H20-CUJ EMBLEM, FRAME COVER RH (GRAY/BLACK) FOR PDD 1 Rp43.500
32-1 68141-48H21-CRT
SUB: 68141-48H20-CRT		 EMBLEM, FRAME COVER LH (GRAY) FOR YAY 1 Rp36.500
32-2 68141-48H20-CUJ EMBLEM, FRAME COVER LH (GRAY/BLACK) FOR PDD 1 Rp43.500
33-1 68131-48H10-YMD EMBLEM, "SUZUKI" (SILVER) FOR YAY 1 Rp34.500
33-2 68131-48H10-YGA EMBLEM, "SUZUKI" (BLACK) FOR PDD 1 Rp34.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
