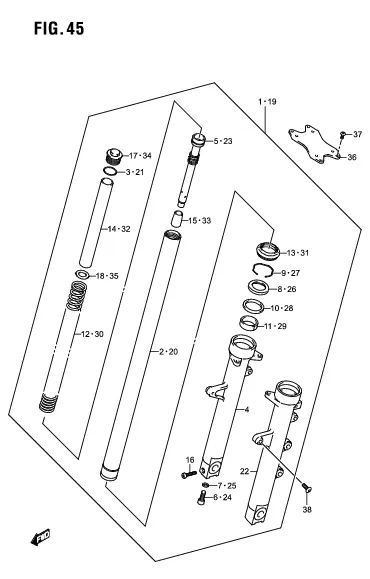

FIG. 45 FRONT FORK DAMPER

FIG. 45 FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-48H00-000 DAMPER ASSY, FRONT FORK RH 1 Rp15.140.000
2 51110-48H00-000 .TUBE, INNER 1 Rp3.469.000
3 51117-38260-000 .O RING 1 Rp22.500
4 51130-48H00-000 .TUBE, OUTER 1 Rp11.254.000
5 51146-48H00-000 .CYLINDER 1 Rp814.500
6 51147-05H00-000 .BOLT 1 Rp35.500
7 51148-41310-000 .GASKET 1 Rp8.500
8 51153-26F00-000 .OIL SEAL 1 Rp117.000
9 51156-40301-000 .RING, STOPPER 1 Rp38.000
10 51158-48H00-000 .WASHER 1 Rp25.000
11 51167-01D00-000 .METAL, SLIDE 1 Rp93.500
12 51171-48H00-000 .SPRING 1 Rp444.500
13 51173-26F00-000 .SEAL, DUST 1 Rp153.000
14 51176-48H00-000 .SPACER 1 Rp282.000
15 51195-48H00-000 .PIECE, OIL LOCK 1 Rp119.500
16 51328-48H00-000 .BOLT 1 Rp121.500
17 51351-48H00-000 .CAP 1 Rp814.500
18 51356-48H00-000 .WASHER 1 Rp61.000
19 51104-48H00-000 DAMPER ASSY, FRONT FORK LH 1 Rp15.140.000
20 51110-48H00-000 .TUBE, INNER 1 Rp3.469.000
21 51117-38260-000 .O RING 1 Rp22.500
22 51140-48H00-000 .TUBE, OUTER 1 Rp11.254.000
23 51146-48H00-000 .CYLINDER 1 Rp814.500
24 51147-05H00-000 .BOLT 1 Rp35.500
25 51148-41310-000 .GASKET 1 Rp8.500
26 51153-26F00-000 .OIL SEAL 1 Rp117.000
27 51156-40301-000 .RING, STOPPER 1 Rp38.000
28 51158-48H00-000 .WASHER 1 Rp25.000
29 51167-01D00-000 .METAL, SLIDE 1 Rp93.500
30 51171-48H00-000 .SPRING 1 Rp444.500
31 51173-26F00-000 .SEAL, DUST 1 Rp153.000
32 51176-48H00-000 .SPACER 1 Rp282.000
33 51195-48H00-000 .PIECE, OIL LOCK 1 Rp119.500
34 51351-48H00-000 .CAP 1 Rp814.500
35 51356-48H00-000 .WASHER 1 Rp61.000
36 51471-48H00-000 STABILIZER, FRONT 1 Rp344.500
37 09139-06030-000 SCREW (6X16) 4 Rp26.000
38 09139-06027-000 SCREW (6X12) 2 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
