  5. FIG. 36 FUEL TANK COVER

Inazuma

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 32 FRAMEFIG. 33 STANDFIG. 34 FOOTRESTFIG. 35 FUEL TANKFIG. 36 FUEL TANK COVERFIG. 37 FRAME COVERFIG. 38 HEAD LAMP HOUSINGFIG. 39 FRONT FENDERFIG. 40 HANDLE BARFIG. 41 HANDLE LEVERFIG. 42 REAR FENDERFIG. 43 LABELFIG. 44 SEATFIG. 45 FRONT FORK DAMPERFIG. 46 STEERING STEMFIG. 47 FRONT WHEELFIG. 48 FRONT CALIPERFIG. 49 FRONT BRAKE HOSEFIG. 50 FRONT MASTER CYLINDERFIG. 51 REAR SWINGINGARMFIG. 52 REAR CUSHIONFIG. 53 REAR WHEELFIG. 54 REAR CALIPERFIG. 55 REAR MASTER CYLINDERFIG. 56 OPTIONAL

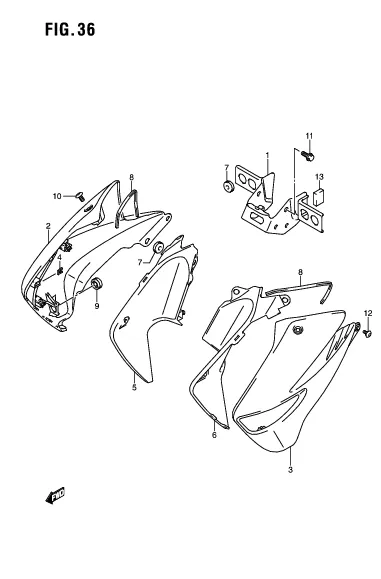

FIG. 36 FUEL TANK COVER

FIG. 36 FUEL TANK COVER
No No. Part Description Qty Price Per Pcs Remarks
1 44150-48H00-000 BRACKET, FRONT SIDE COVER 1 Rp155.000
1-Feb 44171-48H00-YAY COVER, FUEL TANK RH (BLACK) 1 Rp3.487.000
1-Mar 44181-48H00-YAY COVER, FUEL TANK LH (BLACK) 1 Rp3.487.000
2-Feb 44171-48H00-PDD COVER, FUEL TANK RH (RED) 1 Rp3.996.500
2-Mar 44181-48H00-PDD COVER, FUEL TANK LH (RED) 1 Rp3.996.500
4 44261-48H00-000 NUT, FUEL TANK COVER 2 Rp17.500
5 44271-48H00-000 COVER, FUEL TANK FRONT RH 1 Rp128.500
6 44281-48H00-000 COVER, FUEL TANK FRONT LH 1 Rp128.500
7 44274-48H00-000 CUSHION, FUEL TANK COVER 4 Rp21.000
8 44278-48H00-000 CUSHION, FUEL TANK COVER SIDE 2 Rp24.500
9 44279-48H00-000 CUSHION, FUEL TANK COVER 2 Rp18.500
10 09139-06172-000 SCREW (6X10) 4 Rp23.000
11 01550-0616B-000 BOLT 3 Rp5.500
12 44514-48H00-000 SCREW (6X12) 2 Rp37.000
13 44153-48H00-000 CUSHION, COVER BRACKET 2 Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
