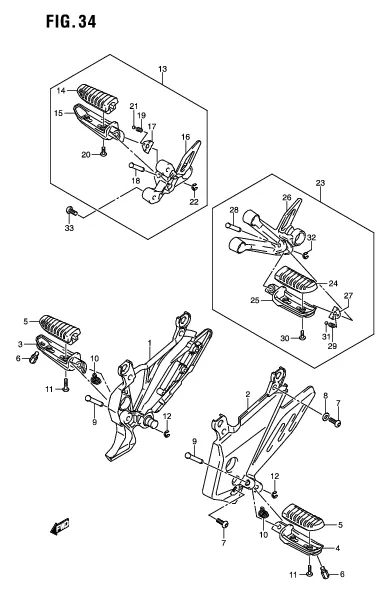

FIG. 34 FOOTREST

FIG. 34 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43510-48H10-000
SUB: 43510-48H00-000		 BRACKET, FOOTREST RH 1 Rp1.125.500
2 43521-48H10-000
SUB: 43521-48H00-000		 BRACKET, FOOTREST LH 1 Rp1.007.500
3 43511-44G10-000 BAR, FRONT FOOTREST RH 1 Rp357.500
4 43521-44G10-000 BAR, FRONT FOOTREST LH 1 Rp357.500
5 43550-44G20-000 RUBBER, FOOTREST 2 Rp293.500
6 43576-48H00-000 BOLT, BANK SENSOR 2 Rp21.000
7 09106-08194-000 BOLT (8X20) 6 Rp24.500
8 09160-09015-000 WASHER (9X19X1.0) 4 Rp16.500
9 09208-08022-000 PIN 2 Rp9.000
10 09448-16033-000 SPRING 2 Rp8.500
11 02142-0512A-000 SCREW 4 Rp3.500
12 08332-1106A-000 E RING 2 Rp8.500
13 43600-48H00-000 FOOTREST ASSY, PILLION RH 1 Rp594.500
14 43550-44G00-000 .RUBBER, FOOTREST 1 Rp213.000
15 43611-44G00-000 .BAR, PILLION FOOTREST RH 1 Rp346.000
16 43811-48H10-000
SUB: 43811-48H00-000		 .BRACKET, PILLION FOOTREST RH 1 Rp482.500
17 43816-01H10-000 .PLATE, PILLION FOOTREST 1 Rp49.500
18 09208-08021-000 .PIN 1 Rp9.500
19 09440-05003-000 .SPRING 1 Rp12.000
20 02142-0512A-000 .SCREW 2 Rp3.500
21 06111M07004-000
SUB: 06111-07004-000		 .BALL 1 Rp3.000
22 08332-1106A-000 .E RING 1 Rp8.500
23 43700-48H00-000 FOOTREST ASSY, PILLION LH 1 Rp594.500
24 43550-44G00-000 .RUBBER, FOOTREST 1 Rp213.000
25 43621-44G00-000 .BAR, PILLION FOOTREST LH 1 Rp346.000
26 43821-48H10-000
SUB: 43821-48H00-000		 .BRACKET, PILLION FOOTREST LH 1 Rp432.500
27 43816-01H10-000 .PLATE, PILLION FOOTREST 1 Rp49.500
28 09208-08021-000 .PIN 1 Rp9.500
29 09440-05003-000 .SPRING 1 Rp12.000
30 02142-0512A-000 .SCREW 2 Rp3.500
31 06111M07004-000
SUB: 06111-07004-000		 .BALL 1 Rp3.000
32 08332-1106A-000 .E RING 1 Rp8.500
33 09106-08150-000 BOLT (8X23) 4 Rp26.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
