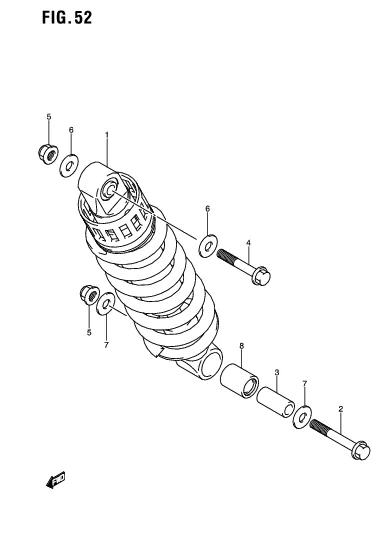

FIG. 52 REAR CUSHION

FIG. 52 REAR CUSHION
No No. Part Description Qty Price Per Pcs Remarks
1 62100-48H20-28W ABSORBER ASSY, REAR SHOCK (WHITE) 1 Rp8.831.500
2 62658-02B50-000 BOLT, REAR SHOCK ABS LOWER 1 Rp69.000
3 62317-48H00-000 SPACER, REAR SHOCK ABS LOWER 1 Rp35.000
4 09103-10213-000 BOLT (10X52) 1 Rp30.500
5 09159-10115-000 NUT 2 Rp23.000
6 09160-10020-000 WASHER (10.5X24X1) 2 Rp13.500
7 09160-10093-000 WASHER (10.5X24X2.3) 2 Rp12.500
8 09263-17056-000
SUB: 09263-17L01-000		 BEARING (17X24X32) 1 Rp70.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
