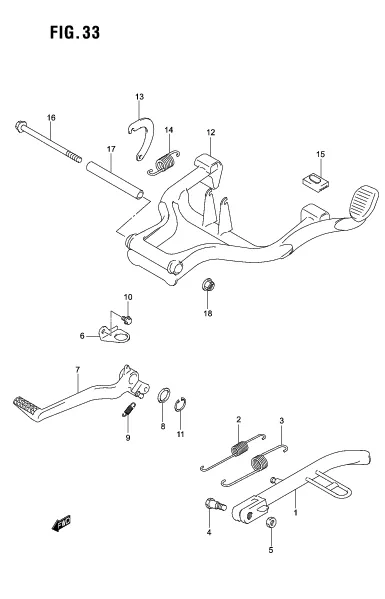

FIG. 33 STAND

FIG. 33 STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42310-48H00-000 STAND, PROP 1 Rp446.500
2 42421-48H00-000 SPRING, PROP STAND 1 Rp37.000
3 42422-48H00-000 SPRING, PROP STAND OUTER 1 Rp41.000
4 09111-10036-000 BOLT (10X38) 1 Rp34.500
5 42321-48H00-000 NUT 1 Rp44.000
6 41577-48H00-000 BRACKET, STOP LAMP SWITCH 1 Rp21.500
7 43111-48H00-000 PEDAL, BRAKE 1 Rp2.672.000
8 09160-18040-000 WASHER (18X24X1) 1 Rp14.000
9 09443-11033-000 SPRING 1 Rp28.500
10 01550-0508A-000 BOLT 1 Rp15.000
11 08331-3118A-000 CIRCLIP 1 Rp14.500
12 42100-48H20-000
SUB: 42100-48H00-000		 STAND, CENTER 1 Rp1.085.500
13 42192-48H00-000 HOOK, CENTER STAND SPRING 2 Rp20.500
14 42196-48H00-000 SPRING, CENTER STAND 2 Rp46.500
15 42278-26H10-000 CUSHION, CENTER STAND 1 Rp30.000
16 09103-10241-000 BOLT (10X143) 1 Rp60.500
17 09180-10162-000 SPACER (10.2X16X120) 1 Rp54.500
18 08319-3110A-000
SUB: 08319-3110B-000		 NUT 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
