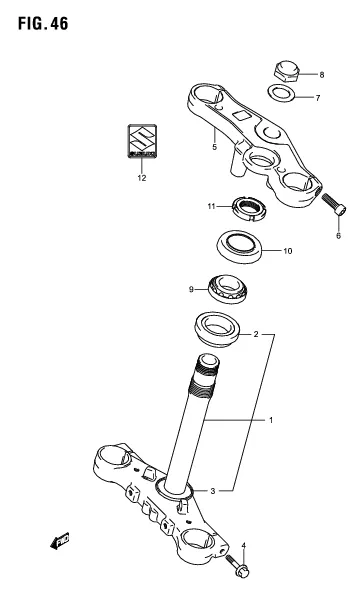

FIG. 46 STEERING STEM

FIG. 46 STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 51410-48H20-000 BRACKET, UNDER 1 Rp3.570.500
2 51610-48H00-000
SUB: 09267-30L01-000		 .BEARING (30X55X17) 1 Rp326.500
3 51644-48H00-000 .SEAL, STEERING LOWER 1 Rp19.500
4 51451-48H00-000 BOLT BRACKET, UNDER 2 Rp121.500
5 51311-48H00-000 BRACKET, UPPER 1 Rp10.721.500
6 51166-48H00-000 BOLT BRACKET, UPPER 2 Rp74.500
7 51172-48H00-000 WASHER 1 Rp60.000
8 51353-24B00-000 NUT, CAP 1 Rp196.000
9 09267-25L01-000 BEARING (25X47X15) 1 Rp345.500
10 51643-49002-000 SEAL, STEERING UPPER DUST 1 Rp76.000
11 51631-48H00-000 NUT, STEERING STEM 1 Rp36.500
12 68281-35F00-000 EMBLEM, "S" 1 Rp127.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
