Inazuma

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 32 FRAMEFIG. 33 STANDFIG. 34 FOOTRESTFIG. 35 FUEL TANKFIG. 36 FUEL TANK COVERFIG. 37 FRAME COVERFIG. 38 HEAD LAMP HOUSINGFIG. 39 FRONT FENDERFIG. 40 HANDLE BARFIG. 41 HANDLE LEVERFIG. 42 REAR FENDERFIG. 43 LABELFIG. 44 SEATFIG. 45 FRONT FORK DAMPERFIG. 46 STEERING STEMFIG. 47 FRONT WHEELFIG. 48 FRONT CALIPERFIG. 49 FRONT BRAKE HOSEFIG. 50 FRONT MASTER CYLINDERFIG. 51 REAR SWINGINGARMFIG. 52 REAR CUSHIONFIG. 53 REAR WHEELFIG. 54 REAR CALIPERFIG. 55 REAR MASTER CYLINDERFIG. 56 OPTIONAL

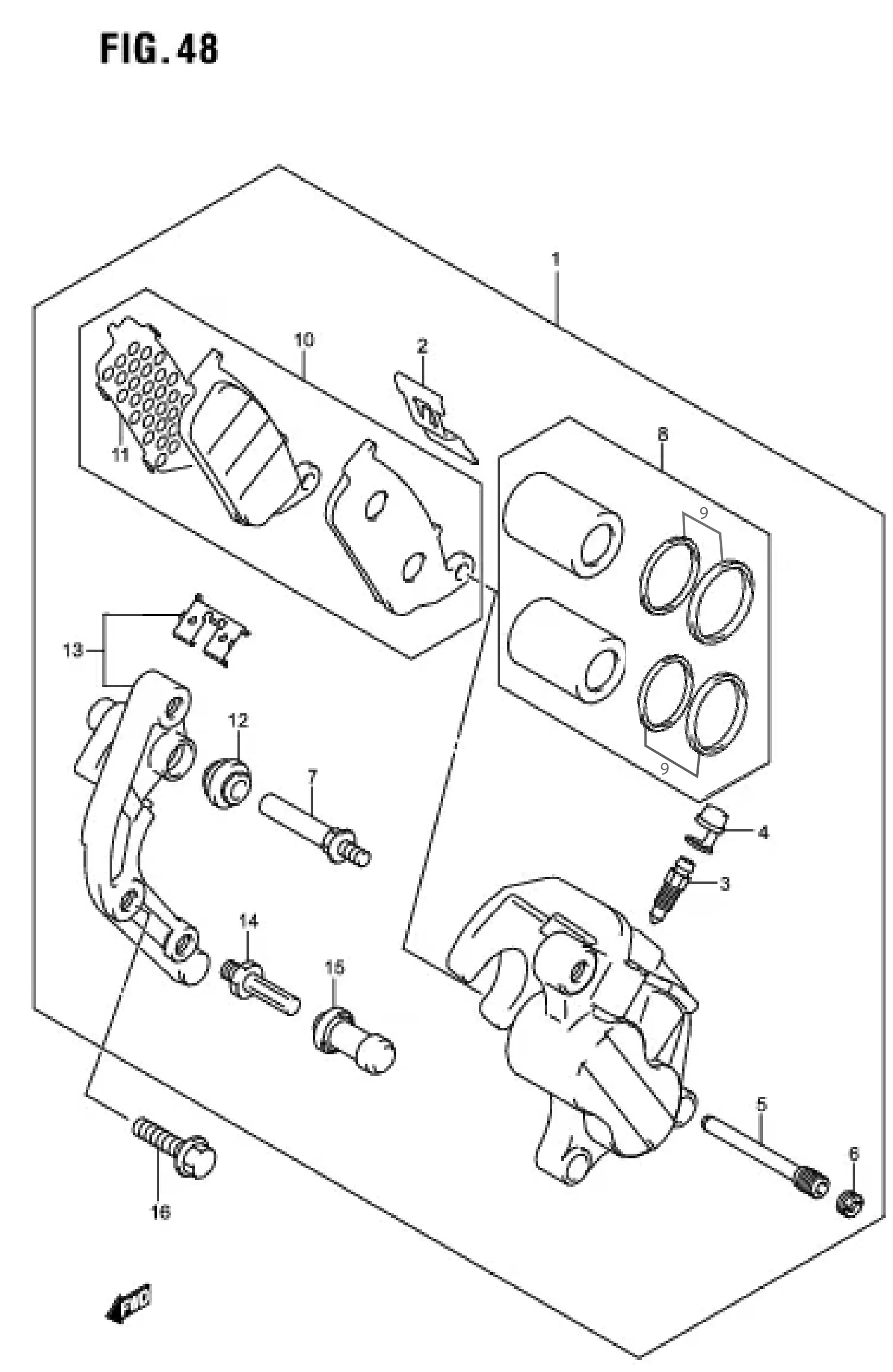

FIG. 48 FRONT CALIPER

FIG. 48 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59300-48H10-000 CALIPER ASSY, FRONT LH 1 Rp3.348.000
2 59115-21E10-000 .SPRING, PAD 1 Rp36.000
3 59121-01A00-000 .BLEEDER 1 Rp14.500
4 59122-01A00-000 .CAP, BLEEDER 1 Rp3.000
5 59145-21E10-000 .PIN, HANGER 1 Rp138.500
6 59146-21E10-000 .PLUG, PIN 1 Rp5.500
7 59187-21E10-000 .PIN 1 Rp165.000
8 59300-48820-000 .PISTON SET 1 Rp1.079.500
9 59300-13820-000 ..SEAL SET, PISTON 1 Rp37.000
10 59300-48830-000
SUB: 59301-48810-000		 .PAD SET 1 Rp760.500
11 59113-48H00-000 ..SHIM 1 Rp108.500
12 59303-14500-000 .BOOT 1 Rp12.500
13 59350-48H00-000 .BRACKET 1 Rp340.000
14 59382-14500-000 .PIN 1 Rp13.500
15 59386-13A00-000 .BOOT 1 Rp14.000
16 01550-0830A-000 BOLT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
