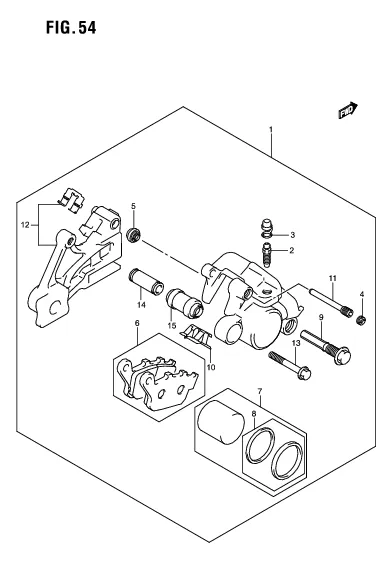

FIG. 54 REAR CALIPER

FIG. 54 REAR CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 69100-48H00-000 CALIPER ASSY, REAR 1 Rp4.003.500
2 59121-01A00-000 .BLEEDER 1 Rp14.500
3 59122-01A00-000 .CAP, BLEEDER 1 Rp3.000
4 59146-21E10-000 .PLUG, PIN 1 Rp5.500
5 59303-14500-000 .BOOT 1 Rp12.500
6 69100-48820-000 .PAD SET 1 Rp931.000
7 69101-44860-000 .PISTON SET 1 Rp417.000
8 69100-04820-000 ..SEAL SET, PISTON 1 Rp114.000
9 69105-04F00-000 .BOLT 1 Rp107.000
10 69115-06G00-000 .SPRING, PAD 1 Rp95.500
11 69141-40F00-000 .PIN, PAD 1 Rp228.000
12 69150-48H00-000 .BRACKET 1 Rp379.000
13 69182-04F00-000 .BOLT 1 Rp68.000
14 69185-04F00-000 .SLEEVE 1 Rp118.500
15 69186-04F00-000 .BOOT, SLEEVE 1 Rp94.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
