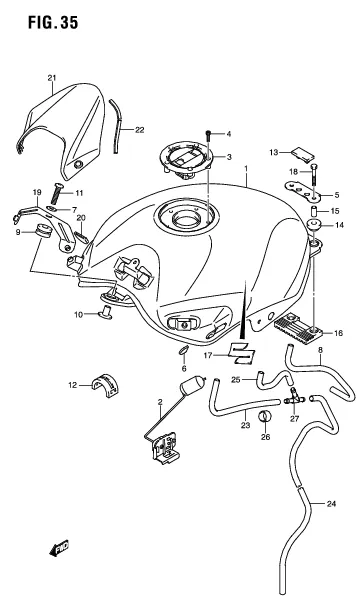

FIG. 35 FUEL TANK

FIG. 35 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1-Jan 44100-48H30-YAY TANK ASSY, FUEL (BLACK) 1 Rp14.807.500
2-Jan 44100-48H30-PDD TANK ASSY, FUEL (RED) 1 Rp9.710.000
2 34810-48H01-000
SUB: 34810-48H00-000		 GAUGE ASSY, FUEL LEVEL SENDER 1 Rp676.500
3 44200-48H00-000 CAP ASSY, FUEL TANK FILLER 1 Rp614.000
4 44211-48H00-000 BOLT (5X20) 3 Rp18.000
5 44146-48H00-000 WASHER, FUEL TANK REAR BRACKET 1 Rp38.000
6 44276-48H00-000 CUSHION, FUEL TANK COVER 3 Rp16.500
7 44262-48H00-000 WASHER, FUEL TANK FRONT 1 Rp22.000
8 44423-48H00-000 HOSE, FUEL TANK WATER DRAIN 1 Rp47.000
9 44511-48H00-000 CUSHION, FUEL TANK FRONT 1 Rp17.000
10 44512-48H00-000 SPACER, FUEL TANK FRONT 1 Rp23.500
11 44513-48H00-000 SCREW, FUEL TANK FRONT 1 Rp43.500
12 44541-48H00-000 CUSHION, FUEL TANK SIDE 2 Rp38.000
13 44542-48H01-000
SUB: 44542-48H00-000		 CUSHION, FUEL TANK REAR BRKT 1 Rp7.500
14 44543-48H00-000 CUSHION, FUEL TANK REAR UPPER 2 Rp21.000
15 44544-48H00-000 SPACER, FUEL TANK REAR 2 Rp18.000
16 44545-48H01-000
SUB: 44545-48H00-000		 CUSHION, FUEL TANK REAR LOWER 1 Rp51.000
17 68111-18G20-000 EMBLEM, "S" 2 Rp208.500
18 01500-0635A-000 BOLT 2 Rp17.500
19 44160-48H00-000 BRACKET, FUEL TANK COVER 1 Rp50.000
20 44164-48H00-000 CUSHION, FUEL TANK COVER BRKT 1 Rp18.000
21 44191-48H00-YMD COVER, FUEL TANK CENTER (SILVER) 1 Rp564.000
22 44277-48H00-000 CUSHION, FUEL TANK COVER CENTER 1 Rp28.000
23 44424-48H00-000 HOSE, FUEL TANK BREATHER NO.1 1 Rp24.500
24 44424-48H10-000 HOSE, FUEL TANK BREATHER NO.2 1 Rp26.000
25 44424-48H20-000 HOSE, FUEL TANK BREATHER NO.3 1 Rp20.000
26 44424-48H30-000 HOSE, FUEL TANK BREATHER NO.4 1 Rp25.500
27 44438-48H00-000 JOINT, 3 WAY 1 Rp25.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
