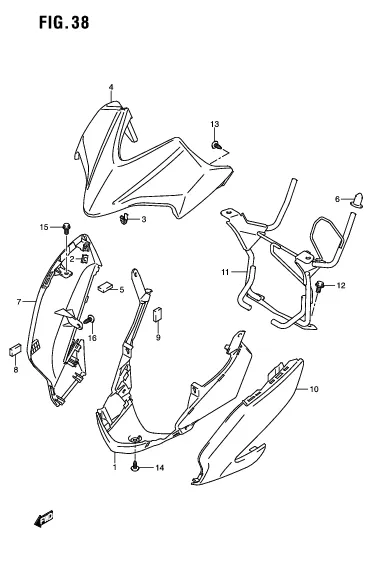

FIG. 38 HEAD LAMP HOUSING

FIG. 38 HEAD LAMP HOUSING
No No. Part Description Qty Price Per Pcs Remarks
1-Jul 51831-48H00-YAY COVER, HEADLAMP SIDE RH (BLACK) 1 Rp417.500
1 51811-48H00-FJA COVER, HEADLAMP LOWER (SILVER/BLACK) 1 Rp1.336.000
1-Oct 51841-48H00-YAY COVER, HEADLAMP SIDE LH (BLACK) 1 Rp417.500
2 35157-48H00-000 NUT, HEADLAMP SIDE 2 Rp19.500
2-Jul 51831-48H00-PDD COVER, HEADLAMP SIDE RH (RED) 1 Rp671.500
2-Oct 51841-48H00-PDD COVER, HEADLAMP SIDE LH (RED) 1 Rp671.500
3 48291-32GH0-000 CLIP, HEADLAMP UPPER 2 Rp19.000
4 51821-48H01-YAY
SUB: 51821-48H00-YAY		 COVER, HEADLAMP UPPER (BLACK) 1 Rp369.000
5 51822-48H00-000 CUSHION, HEADLAMP UPPER 1 Rp15.000
6 51827-48H00-000 CUSHION, HOUSING BRACE 4 Rp15.500
8 51832-48H00-000 CUSHION, HEADLAMP SIDE 2 Rp20.000
9 51832-48H00-000 CUSHION, HEADLAMP LOWER 2 Rp20.000
11 51850-48H10-000
SUB: 51850-48H00-000		 BRACE, HEADLAMP HOUSING 1 Rp309.500
12 01550-0612B-000 BOLT 2 Rp16.500
13 03541-0516B-000 SCREW 2 Rp13.000
14 03541-0516B-000 SCREW 3 Rp13.000
15 03541-0516B-000 SCREW 2 Rp13.000
16 03541-0520A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
