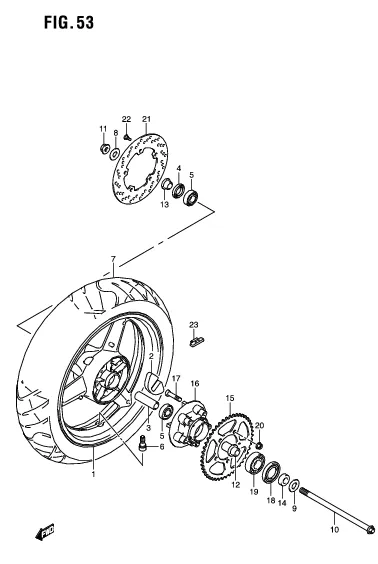

FIG. 53 REAR WHEEL

FIG. 53 REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64111-48H00-YGA WHEEL, REAR (17M/CXMT4.00) (BLACK) 1 Rp2.843.500
2 64651-48H01-000
SUB: 64651-48H00-000		 ABSORBER, REAR HUB SHOCK 5 Rp58.500
3 09180-17116-000 SPACER (17.5X25X78) 1 Rp61.000
4 09283-25L02-000 SEAL 1 Rp63.500
5 08123-6303B-000
SUB: 08123-63037-000		 BEARING 2 Rp154.500
6 43130-24A00-000 VALVE ASSY, WHEEL RIM (TR412) 1 Rp50.500
7 DISCONTINUE
SUB: 65110-48H00-000		 TIRE, REAR (140/70-17M/C 66H) 1 -
8 61445-48H00-000 WASHER, REAR AXLE RH 1 Rp32.500
9 61455-48H00-000 WASHER, REAR AXLE LH 1 Rp32.500
10 64711-48H10-000
SUB: 64711-48H00-000		 AXLE, REAR 1 Rp158.500
11 64721-48H00-000 NUT, REAR AXLE 1 Rp32.000
12 64733-10D00-000 RETAINER, REAR SPROCKET DRUM 1 Rp191.500
13 64741-48H00-000 SPACER, REAR AXLE RH 1 Rp54.500
14 64751-48H00-000 SPACER, REAR AXLE LH 1 Rp46.000
15 64511-48H10-000 SPROCKET, REAR (NT:46) 1 Rp344.000
16 64611-17C10-000 DRUM, REAR SPROCKET 1 Rp603.000
17 09119-10088-000 BOLT (10X43.5) 5 Rp15.500
18 09285-35L01-000 SEAL 1 Rp36.500
19 09262-25073-000 BEARING (25X62X17) 1 Rp184.000
20 08319-3110A-000 NUT 5 Rp4.500
21 69211-48H00-000 DISC, REAR BRAKE 1 Rp1.042.000
22 69222-48H00-000 BOLT, REAR BRAKE DISC 5 Rp26.000
23-1 55411-22H00-000
SUB: 55411-48H00-000		 BALANCER, WHEEL NO.1 0 Rp46.000
23-2 55412-22H00-000
SUB: 55412-48H00-000		 BALANCER, WHEEL NO.2 0 Rp55.000
23-3 55413-22H00-000
SUB: 55413-48H00-000		 BALANCER, WHEEL NO.3 0 Rp62.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
