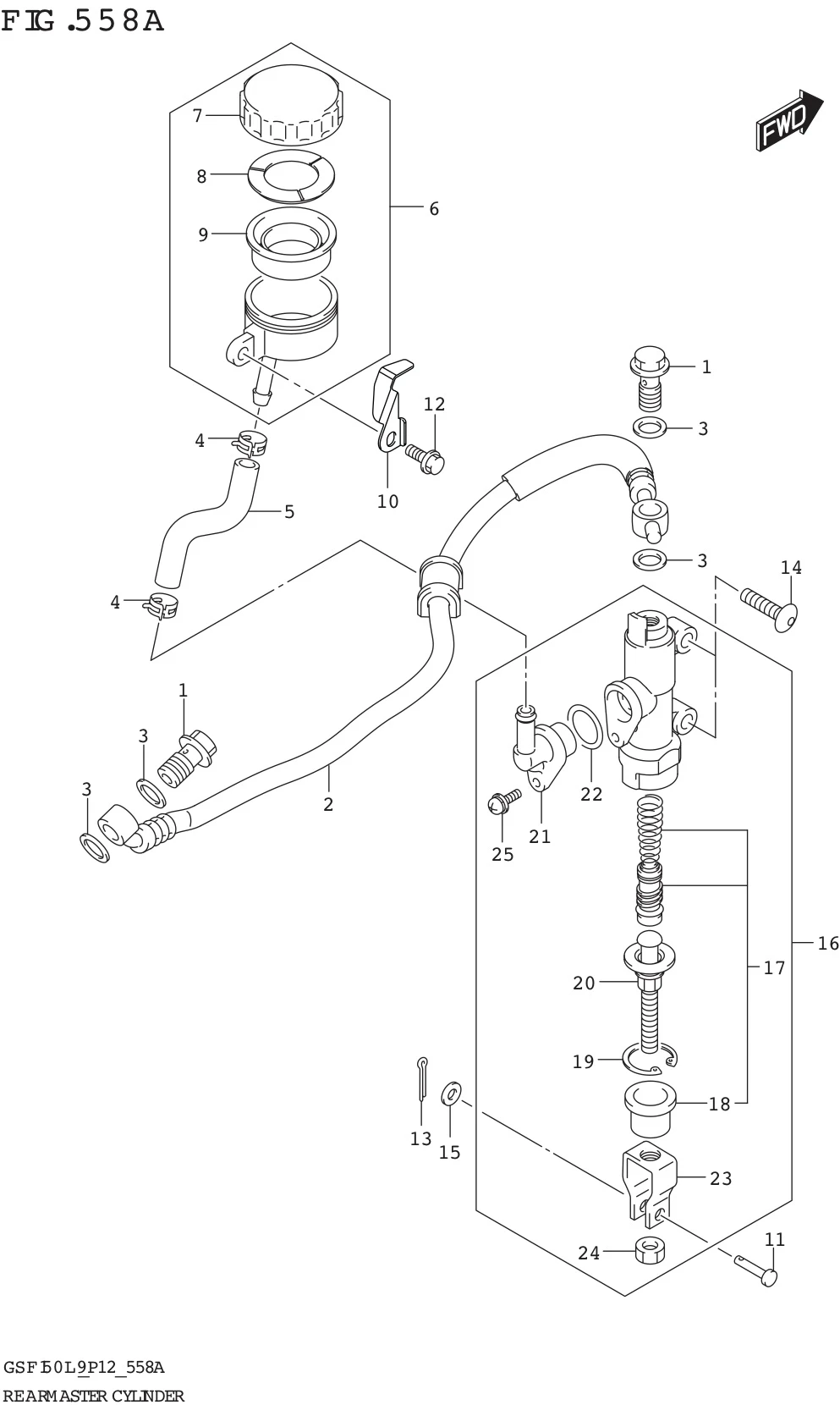

FIG. 558A REAR MASTER CYLINDER

FIG. 558A REAR MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59492-22J00-000
SUB: 59492B22J00N000		 BOLT,BRAKE FLUID 2 Rp19.500
2 69480-23K00-000 HOSE, REAR BRAKE 1 Rp116.500
3 09168-10033-000
SUB: 09168B10033N000		 WASHER (10.2X15X1.4) 4 Rp8.500
4 DISCONTINUE
SUB: 59735-17C00-000		 CLAMP,RESERVOIR TANK,FRONT 2 -
5 69731-23K00-000 HOSE, REAR RESERVOIR TANK 1 Rp24.000
6 69740-20G10-000 TANK ASSY, REAR RESERVOIR 1 Rp22.500
7 69669-20G10-000 .CAP 1 Rp7.500
8 59668-18441-000
SUB: 59668B18441N000		 .PLATE,DIAPHRAGM 1 Rp3.000
9 59667-18441-000
SUB: 59667B18441N000		 .DIAPHRAGM 1 Rp13.500
10 69743-23K00-000 GUARD, RSVR TANK CAP 1 Rp5.500
11 09200-06037-000
SUB: 09200B06037N000		 PIN (6X18.2) 1 Rp3.500
12 01547-0616A-000 BOLT 1 Rp6.500
13 04111-2015A-000 PIN 1 Rp4.500
14 09139-06057-000 SCREW (6X25) 2 Rp4.500
15 08322-0106A-000 WASHER 1 Rp2.500
16 69600-23K00-000 CYLINDER ASSY, REAR MASTER 1 Rp246.000
17 69600-34840-000 .PISTON/CUP SET 1 Rp120.000
18 69691-04A00-000 ..BOOT 1 Rp21.500
19 69665-47H00-000 .CIRCLIP 1 Rp32.000
20 69670-34J00-000 .ROD, PUSH 1 Rp33.500
21 69672-34J00-000 .CONNECTOR 1 Rp14.500
22 69686-34200-000
SUB: 69686B34200N000		 .O RING 1 Rp8.000
23 69692-44H00-000
SUB: 69692B44H00N000		 .YOKE 1 Rp41.000
24 69693-05A00-000
SUB: 69693-05A00L000		 .NUT 2 Rp5.500
25 02112-74125-000 .SCREW 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
