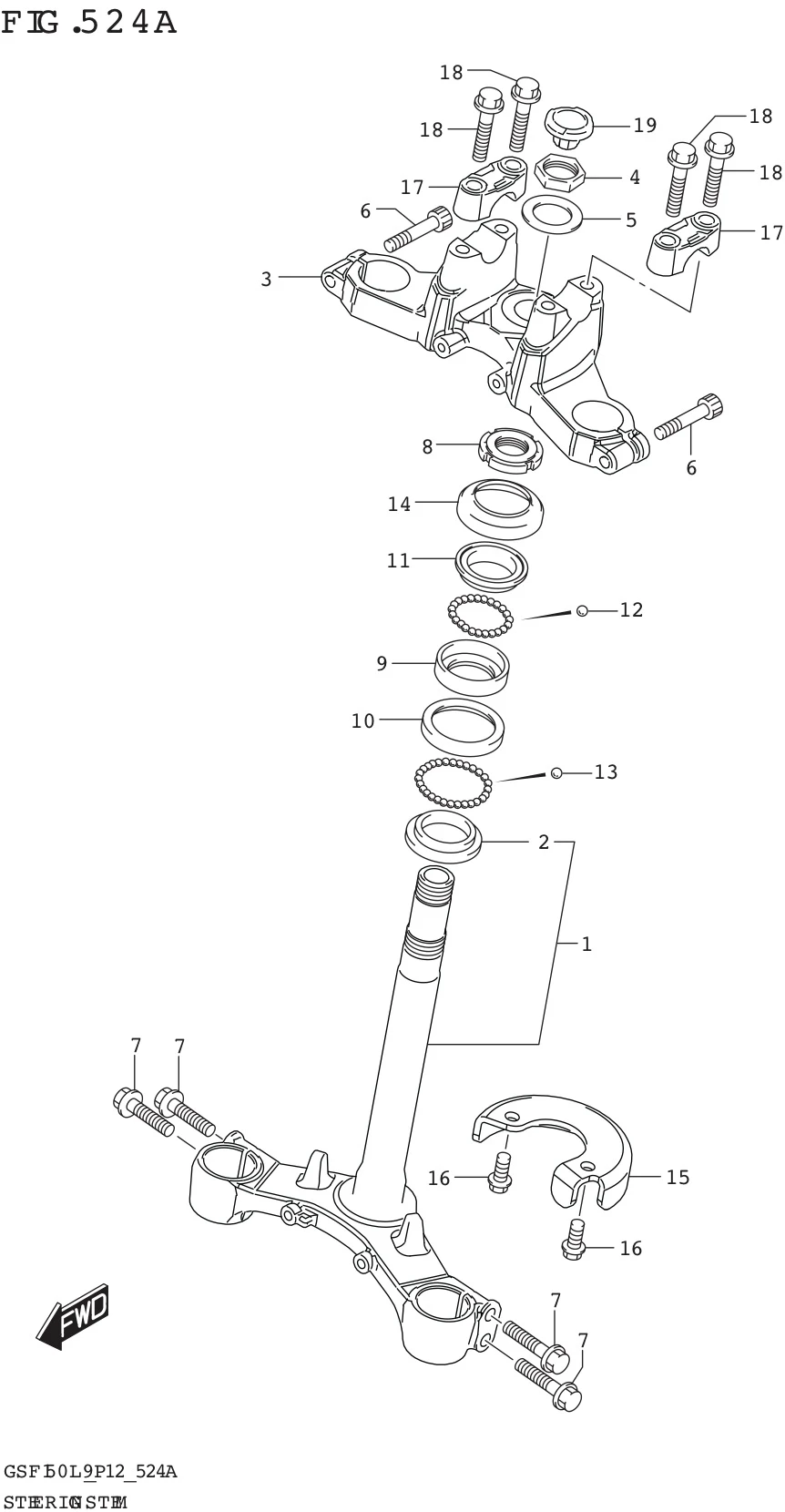

FIG. 524A STEERING STEM

FIG. 524A STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 51410-23K30-000 STEM,STEERING 1 Rp293.500
2 51622-25G00-000
SUB: 51622B25G00N000		 .RACE,STEERING LOWER 1 Rp48.000
3 51311-23K00-000 BRACKET, UPPER 1 Rp346.000
4 51353-12K00-000 NUT 1 Rp44.000
5 51354-49G00-000
SUB: 51354B49G00N000		 WASHER 1 Rp6.500
6 51328-23K00-000 BOLT 2 Rp5.500
7 51434-12K00-000 BOLT 4 Rp5.500
8 51631-05000-000 NUT 1 Rp20.000
9 51611-41H01-000 RACE,STEERING INNER UPPER 1 Rp20.500
10 51612-41H01-000 RACE,STEERING INNER LOWER 1 Rp20.500
11 51621-41H00-000 RACE,STEERING OUTER UPPER 1 Rp31.000
12 06111-06004-000
SUB: 06111-06004L000		 BALL 23 Rp1.000
13 06111-06004-000
SUB: 06111-06004L000		 BALL 28 Rp1.000
14 51643-06001-000 DUST SEAL,STEERING UPR 1 Rp3.000
15 51910-23K00-000 PLATE, STEERING LOCK 1 Rp32.500
16 09103-08351-000 BOLT (8X16) 2 Rp19.500
17 56211-23K00-000 HOLDER, HANDLE UPPER 2 Rp29.000
18 51321-13E00-000
SUB: 51321B13E00N000		 BOLT,HANDLE HOLDER 4 Rp4.500
19 51344-23K00-000 CAP,STEERING STEM 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
