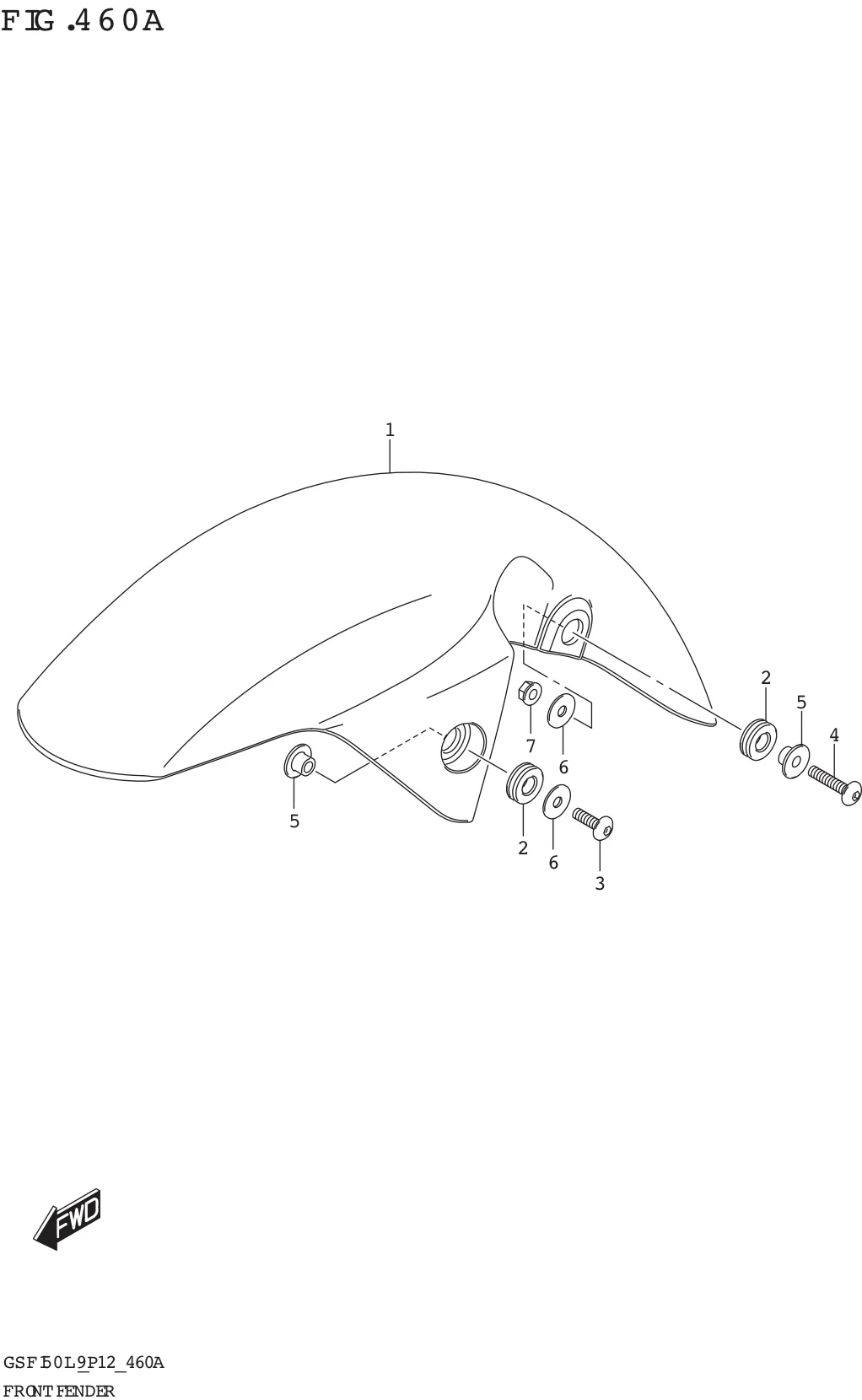

FIG. 460A FRONT FENDER

FIG. 460A FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1-1 53111-23K00-YVU FENDER, FRONT (BLACK) 1 Rp152.000
1-2 53111-23K00-YMC FENDER,FRONT (SILVER) 1 Rp165.000
2 47161-23J00-000 CUSHION,FRAME COVER UPPER 4 Rp4.000
3 53121-23K00-000 SCREW, FRONT FENDER FR 2 Rp7.000
4 53122-23K00-000 SCREW, FRONT FENDER RR 2 Rp7.000
5 53275-34J00-000 SPACER,FRONT FENDER 4 Rp5.500
6 09160-06027-000
SUB: 09160B06027N000		 WASHER (6.5X20X1.2) 4 Rp6.500
7 08316-1006A-000 NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
