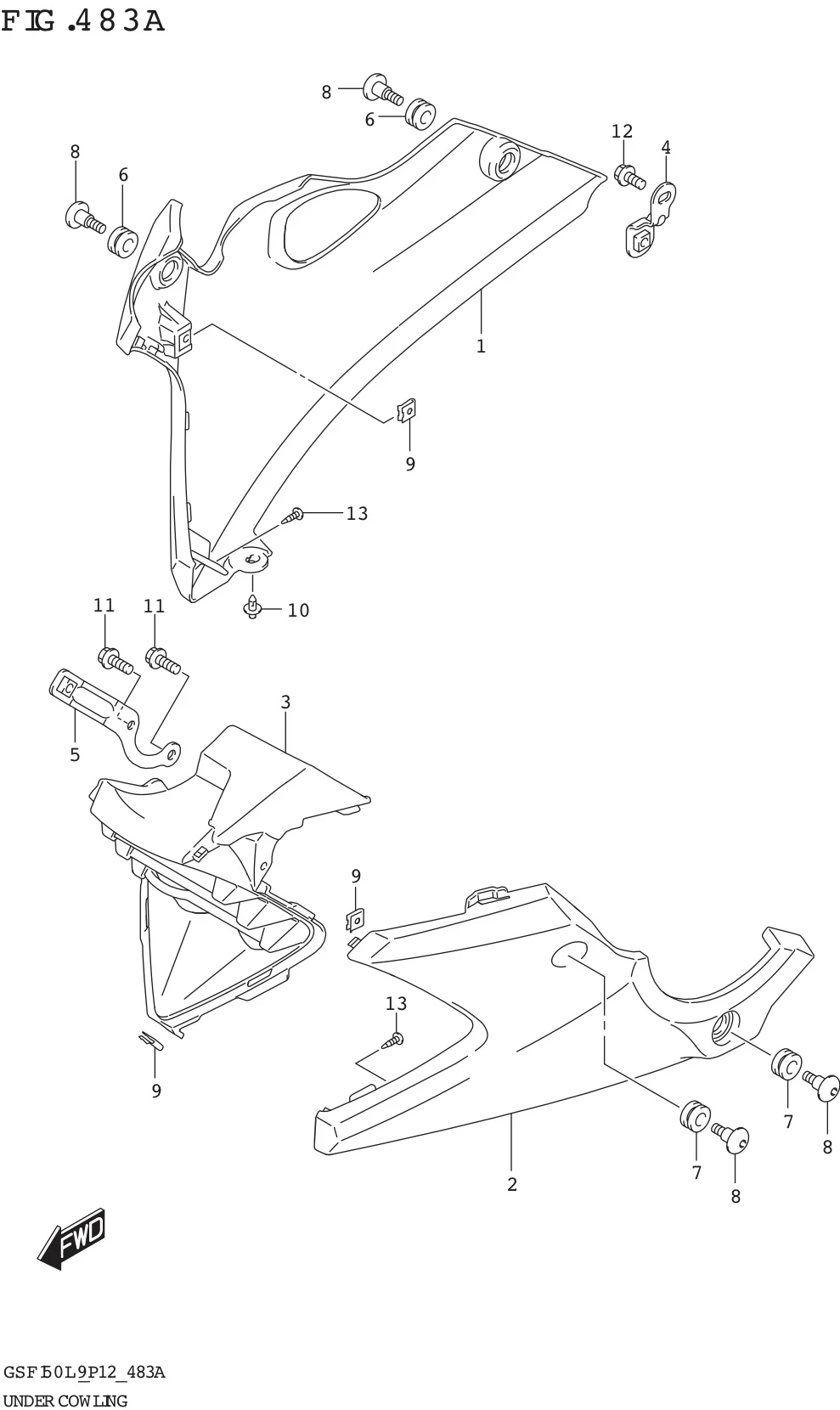

FIG. 483A UNDER COWLING

FIG. 483A UNDER COWLING
No No. Part Description Qty Price Per Pcs Remarks
1-2 94491-23KA0-YMC COWLING,UNDER RH (SILVER) 1 Rp173.000
1-3 94491-23KA0-YZE COWLING, UNDER RH (RED) 1 Rp173.000
1-4 94491-23KA0-PQE COWLING,UNDER RH (YELLOW) 1 Rp173.000
1-1 94491-23KA0-YVU COWLING,UNDER RH (BLACK) 1 Rp173.000
2-1 94492-23KA0-YVU COWLING,UNDER LH (BLACK) 1 Rp173.000
2-2 94492-23KA0-YMC COWLING,UNDER LH (SILVER) 1 Rp173.000
2-3 94492-23KA0-YZE COWLING,UNDER LH (RED) 1 Rp173.000
2-4 94492-23KA0-PQE COWLING,UNDER LH (YELLOW) 1 Rp173.000
3 94493-23KA0-000 COWLING, UNDER CTR 1 Rp15.500
4 94570-23K00-000 BRACKET, SIDE COWL LWR RR 1 Rp7.000
5 94580-23KA0-000 BRACKET, UNDER COWL FR RH 1 Rp8.500
6 94436-23K00-000 CUSHION, SIDE COWLING LOWER 2 Rp4.000
7 09320-09016-000 CUSHION 2 Rp4.000
8 09139-06190-000
SUB: 09139B06190N000		 BOLT (6X20) 4 Rp7.000
9 09148-04019-000
SUB: 09148B04019N000		 NUT 3 Rp6.500
10 09409-06314-5PK CLIP 1 Rp3.500
11 01550-0612A-000 BOLT 2 Rp3.500
12 01550-0612B-000 BOLT 1 Rp16.500
13 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 3 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
