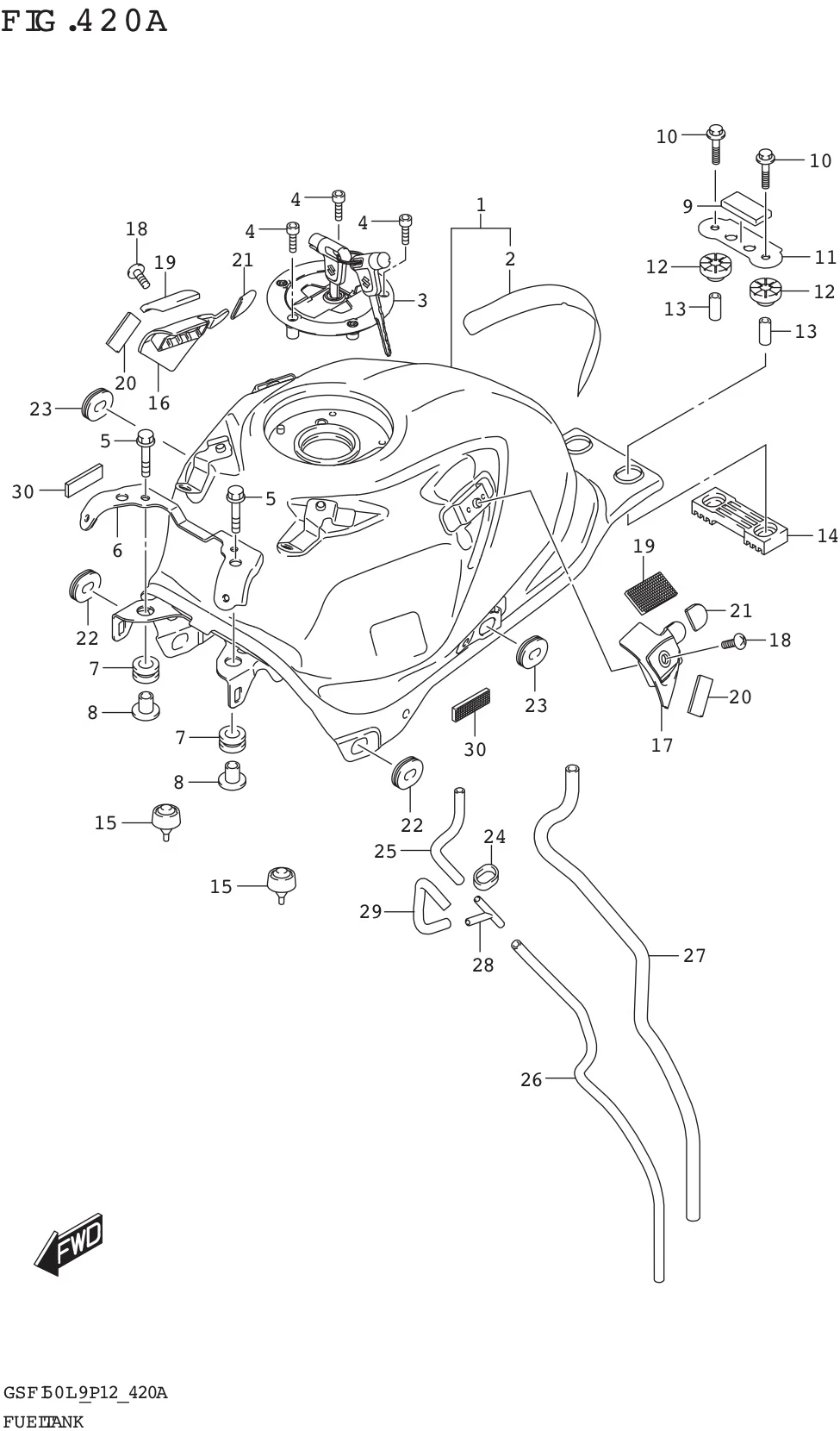

FIG. 420A FUEL TANK (FOR YMC)

FIG. 420A FUEL TANK (FOR YMC)
No No. Part Description Qty Price Per Pcs Remarks
1 44100-23K20-291 TANK ASSY, FUEL (BLACK) 1 Rp1.922.500
2 44283-23K00-000 .PROTECTOR,FUEL TANK 1 Rp45.500
3 44200-23870-000 CAP SET, FUEL TANK 1 Rp426.000
4 44244-23K00-000 BOLT, FUEL TANK FILLER CAP 3 Rp9.000
5 DISCONTINUE
SUB: 01550B0625AN000		 BOLT 2 -
6 47130-23KA0-000 BRACKET, FRM FR INR COVER 1 Rp15.000
7 44511-16G01-000
SUB: 44511-16G00-000		 CUSHION,FUEL TANK,FR 2 Rp7.500
8 44512-16G00-000 SPACER,FUEL TANK,FR 2 Rp52.000
9 44542-48H01-000
SUB: 44542-48H00-000		 CUSHION,FUEL TANK REAR BRKT 1 Rp7.500
10 01550-0635A-000
SUB: 01550B0635AN000		 BOLT 2 Rp3.000
11 44146-48H00-000 WASHER,FUEL TANK REAR BRKT 1 Rp38.000
12 44541-23K00-000 CUSHION, FUEL TANK RR UPPER 2 Rp9.500
13 44544-05J00-000 SPACER,REAR 2 Rp7.000
14 44542-23K10-000 CUSHION, FUEL TANK REAR LOWER 1 Rp9.500
15 44542-23K00-000 CUSHION, FUEL TANK SIDE 2 Rp4.500
16 44179-23KA0-000 BRACKET, FUEL TANK COVER RH 1 Rp22.500
17 44189-23KA0-000 BRACKET, FUEL TANK COVER LH 1 Rp22.500
18 02142-0610A-000 SCREW 2 Rp3.500
19 44572-13G00-000 FASTENER,FUEL TANK (33X25X3.0) 2 Rp64.500
20 44183-23K00-000 CUSHION, FUEL TANK SIDE COVER 2 Rp6.500
21 44294-23K00-000 CUSHION, FUEL TANK COVER REAR 2 Rp4.500
22 94478-14J00-000 CUSHION,UNDER COWL RH 2 Rp4.000
23 94478-14J00-000 CUSHION,UNDER COWL RH 2 Rp4.000
24 09352-12163-010 HOSE, BRTHR CLAMP 1 Rp4.500
25 09352-50823-160 HOSE (5X8.2X160) 1 Rp4.500
26 09352-50823-480 HOSE (5X8.2X480) 1 Rp8.000
27 09352-70L05-650 HOSE (7X11X650) 1 Rp15.000
28 09367-06007-000 3 WAY 1 Rp30.500
29 44424-23K50-000
SUB: 44424-23K10-000		 HOSE, FUEL TANK BRTHR NO.3 1 Rp7.000
30 44572-23KA0-000 FASTENER, FUEL TANK 2 Rp10.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
