Suzuki Bandit

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANK (FOR YMC)FIG. 420B FUEL TANK (FOR GTA,YVU,ATZ)FIG. 423A FUEL TANK COVERFIG. 424A FUEL TANK SIDE COVERFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 543A REAR CUSHION LEVERFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

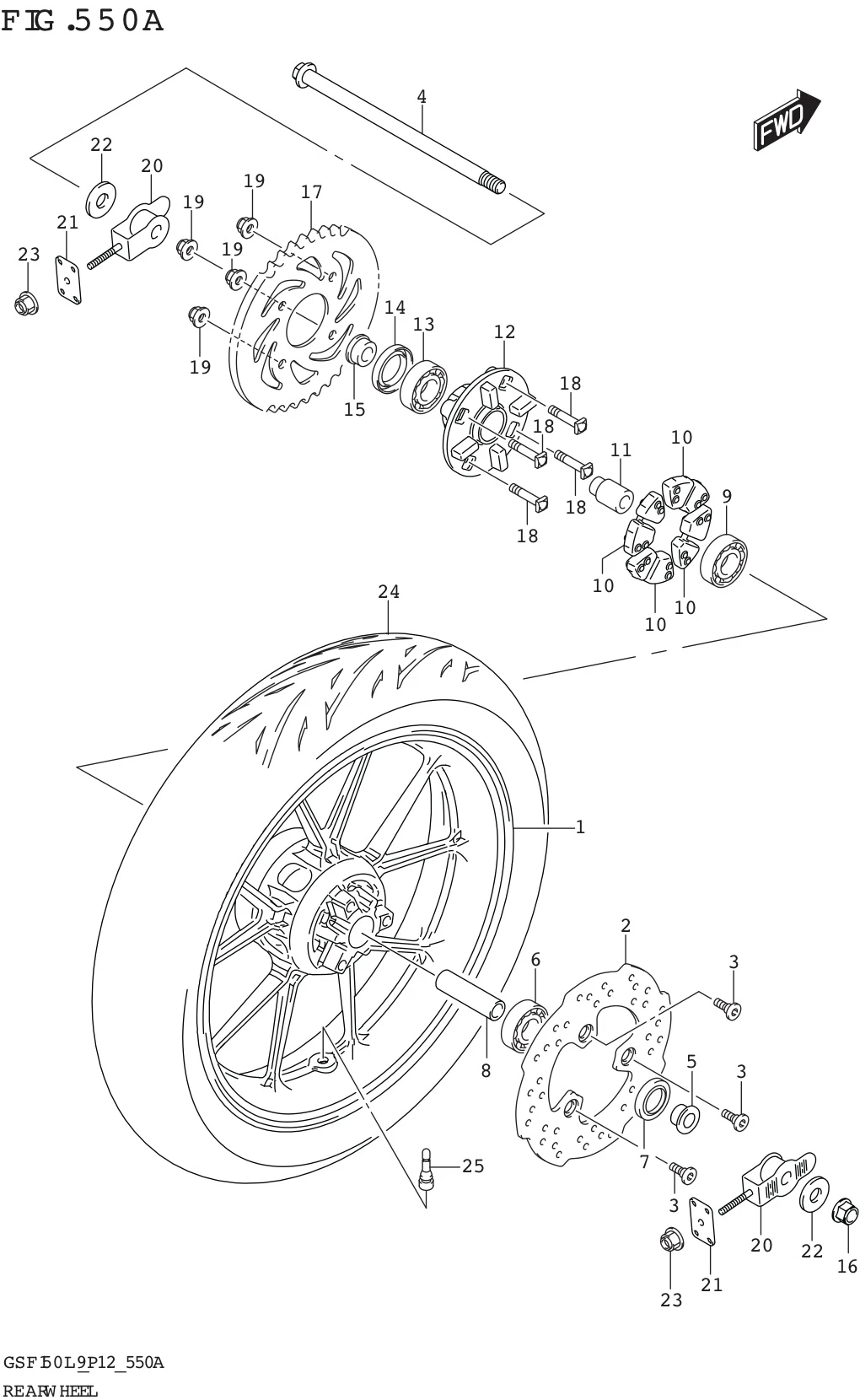

FIG. 550A REAR WHEEL

FIG. 550A REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64111-23K00-019 WHEEL, REAR (17X3.50,BLACK) 1 Rp976.000
2 69211-25G50-000 DISC,REAR BRAKE 1 Rp120.500
3 59218-09G10-000 BOLT,FRONT BRAKE DISC (8X21) 3 Rp7.000
4 64711-23K00-000 AXLE, REAR 1 Rp47.000
5 64741-23K00-000 SPACER, REAR AXLE, RH 1 Rp12.000
6 08123-6202B-000
SUB: 08123-62027-000		 BEARING 1 Rp39.500
7 64841-23K00-000 SEAL, WHEEL BEARING RH 1 Rp9.500
8 64731-23K00-000 SPACER, REAR WHEEL BEARING 1 Rp15.500
9 08123-6202B-000
SUB: 08123-62027-000		 BEARING 1 Rp39.500
10 64651-35J00-000 ABSORBER,REAR HUB SHOCK 4 Rp8.000
11 64761-23K00-000 RETAINER, REAR SPROCKET DRUM 1 Rp33.500
12 64611-23K00-000 DRUM, REAR SPROCKET 1 Rp95.000
13 08123-60047-000 BEARING 1 Rp39.000
14 64841-34J00-000 SEAL, RR SPROCKET MTG DRUM 1 Rp9.500
15 64742-23K00-000 SPACER, REAR SPROCKET DRUM 1 Rp12.500
16 08319-3114A-000 NUT 1 Rp53.000
17 64511-23K00-000 SPROCKET, REAR (NT:45) 1 Rp111.000
18 09105-08011-000
SUB: 09105-08011L000		 BOLT (8X36) 4 Rp6.500
19 08319-3108A-000
SUB: 08319B3108AN000		 NUT 4 Rp4.000
20 61410-34J00-000 ADJUSTER,CHAIN 2 Rp20.500
21 61421-30H00-000 PLATE,CHAIN ADJUSTER GUIDE 2 Rp8.000
22 61445-34J00-000 WASHER,REAR AXLE 2 Rp9.500
23 08319-3106A-000
SUB: 08319B3106AN000		 NUT 2 Rp6.500
24 65110-23K21-000
SUB: 65110-23K20-000		 TIRE,REAR 1 Rp865.500
25 43130-40J00-000 VALVE ASSY,WHEEL RIM (TR413) 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
