Suzuki Bandit

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANK (FOR YMC)FIG. 420B FUEL TANK (FOR GTA,YVU,ATZ)FIG. 423A FUEL TANK COVERFIG. 424A FUEL TANK SIDE COVERFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 543A REAR CUSHION LEVERFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

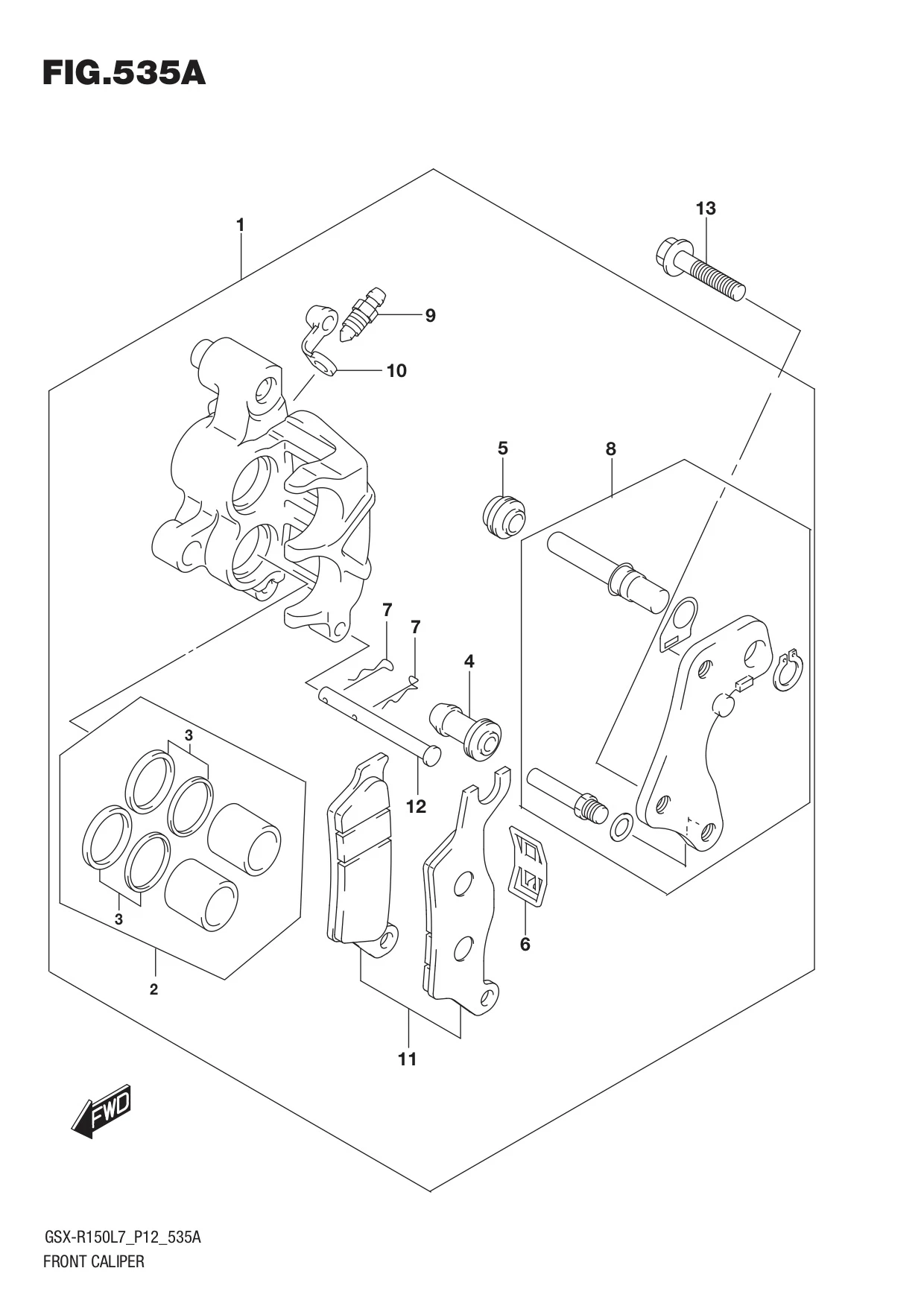

FIG. 535A FRONT CALIPER

FIG. 535A FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-12K10-000 CALIPER ASSY, FRONT RH 1 Rp618.000
2 59100-34870-000 .PISTON SET 1 Rp117.500
3 59100-34860-000 ..SEAL SET, PISTON 1 Rp78.500
4 59109-34J00-000 .INSULATOR 1 Rp15.500
5 59108-34J00-000 .DUST COVER 1 Rp13.500
6 59315-34J00-000 .SPRING 1 Rp18.000
7 59746-34J00-000 .CLIP 2 Rp11.500
8 59351-34J00-000 BRACKET ASSY 1 Rp75.000
9 59121-30H00-000 .SCREW,BLEEDER 1 Rp18.000
10 59122-30H00-000 .CAP,BLEEDER 1 Rp11.000
11 59101-34820-000 .PAD SET 1 Rp112.000
12 59141-34J10-000 .PIN 1 Rp21.500
13 01550-0825A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
