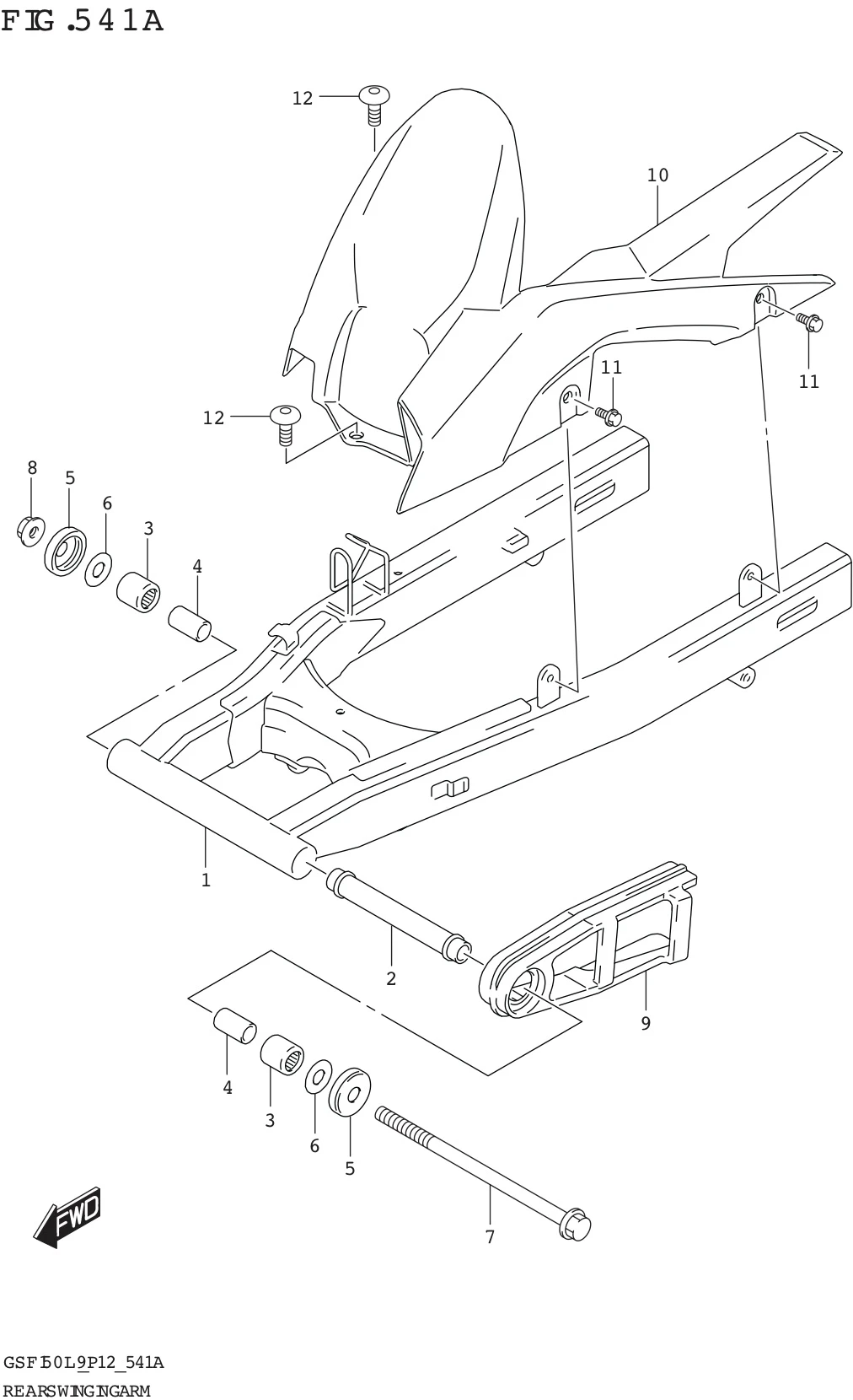

FIG. 541A REAR SWINGINGARM

FIG. 541A REAR SWINGINGARM
No No. Part Description Qty Price Per Pcs Remarks
1 61100-23K10-000
SUB: 61100-23K10-019		 SWINGINGARM,REAR (BLACK) 1 Rp633.500
2 61280-23K00-000 SPACER, RR SWGARM PIVOT 1 Rp19.500
3 09263-17053-000 BEARING (17X24X25) 2 Rp38.000
4 61251-34J00-000 SPACER,RR SWGARM PIVOT 2 Rp19.500
5 61262-23K01-000
SUB: 61262-23K00-000		 COVER, RR SWGARM PIVOT DUST 2 Rp12.500
6 09181-12010-000 SHIM (12.5X27.8X0.8) 2 Rp8.500
7 61211-23K00-000 SHAFT, REAR SWINGING ARM 1 Rp31.500
8 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
9 61273-23K00-000 BUFFER, CHAIN TOUCH DEFENSE 1 Rp28.500
10 61311-23K00-000 CASE, CHAIN 1 Rp87.000
11 61361-09G30-000
SUB: 61361B09G30N000		 BOLT,CHAIN CASE 2 Rp4.000
12 09409-06314-5PK CLIP 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
