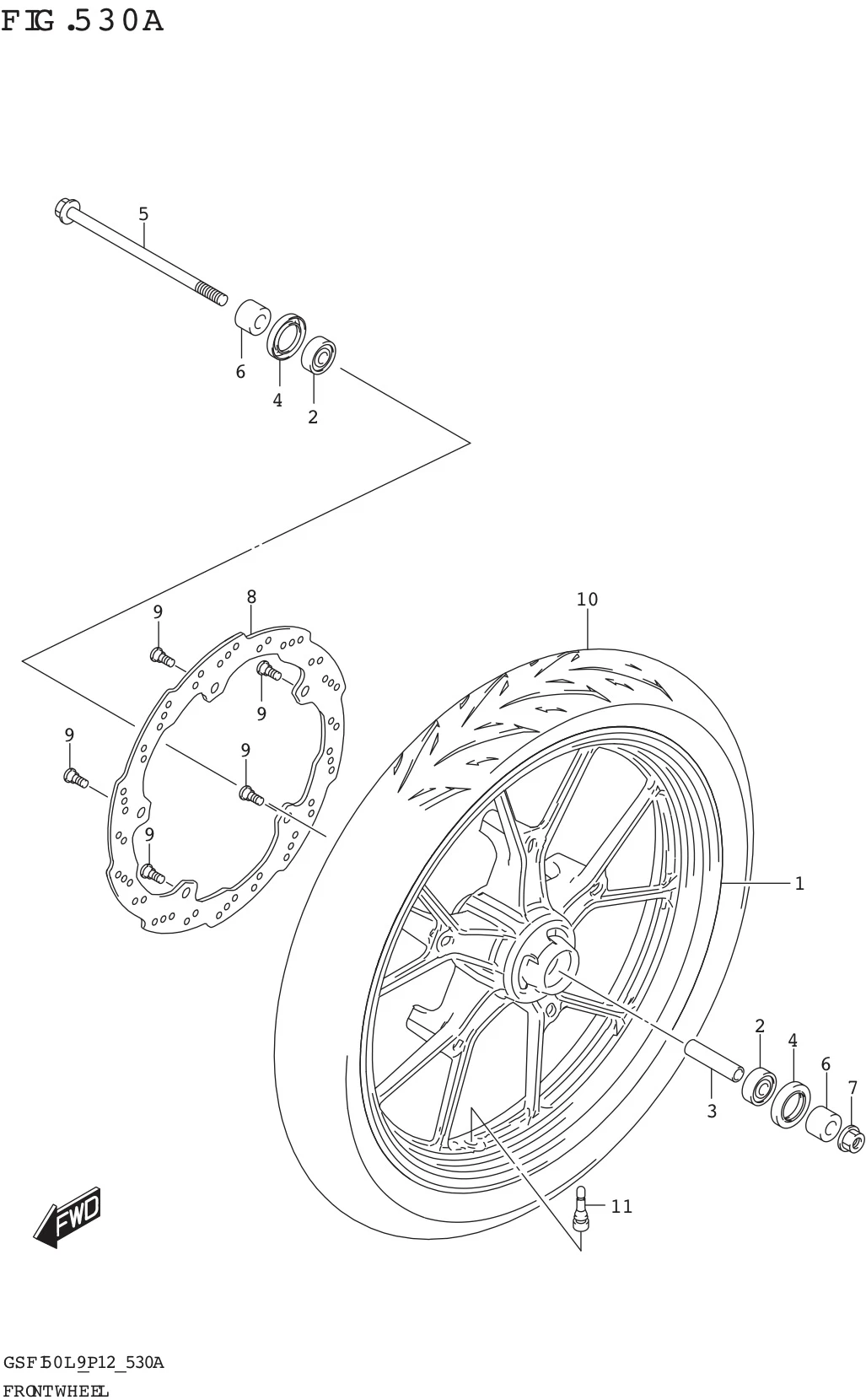

FIG. 530A FRONT WHEEL

FIG. 530A FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54111-23K00-019 WHEEL, FRONT (17X2.15,BLACK) 1 Rp851.500
2 08123-6301B-000
SUB: 08123B63017N000		 BEARING 2 Rp39.500
3 54731-23K00-000 SPACER, FR WHEEL BEARING 1 Rp13.000
4 09285-25008-000
SUB: 09285-25003L000		 OIL SEAL (25X40X6) 2 Rp8.000
5 54711-23K00-000 AXLE, FRONT 1 Rp27.500
6 54751-25G01-000
SUB: 54751B25G01N000		 SPACER,FRONT AXLE 2 Rp17.500
7 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
8 59211-25G60-000 DISC,FRONT BRAKE 1 Rp324.000
9 59218-09G10-000 BOLT,FRONT BRAKE DISC (8X21) 5 Rp7.000
10 55110-23K21-000
SUB: 55110-23K20-000		 TIRE,FRONT 1 Rp688.500
11 43130-40J00-000 VALVE ASSY,WHEEL RIM (TR413) 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
