Suzuki Bandit

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANK (FOR YMC)FIG. 420B FUEL TANK (FOR GTA,YVU,ATZ)FIG. 423A FUEL TANK COVERFIG. 424A FUEL TANK SIDE COVERFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 543A REAR CUSHION LEVERFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

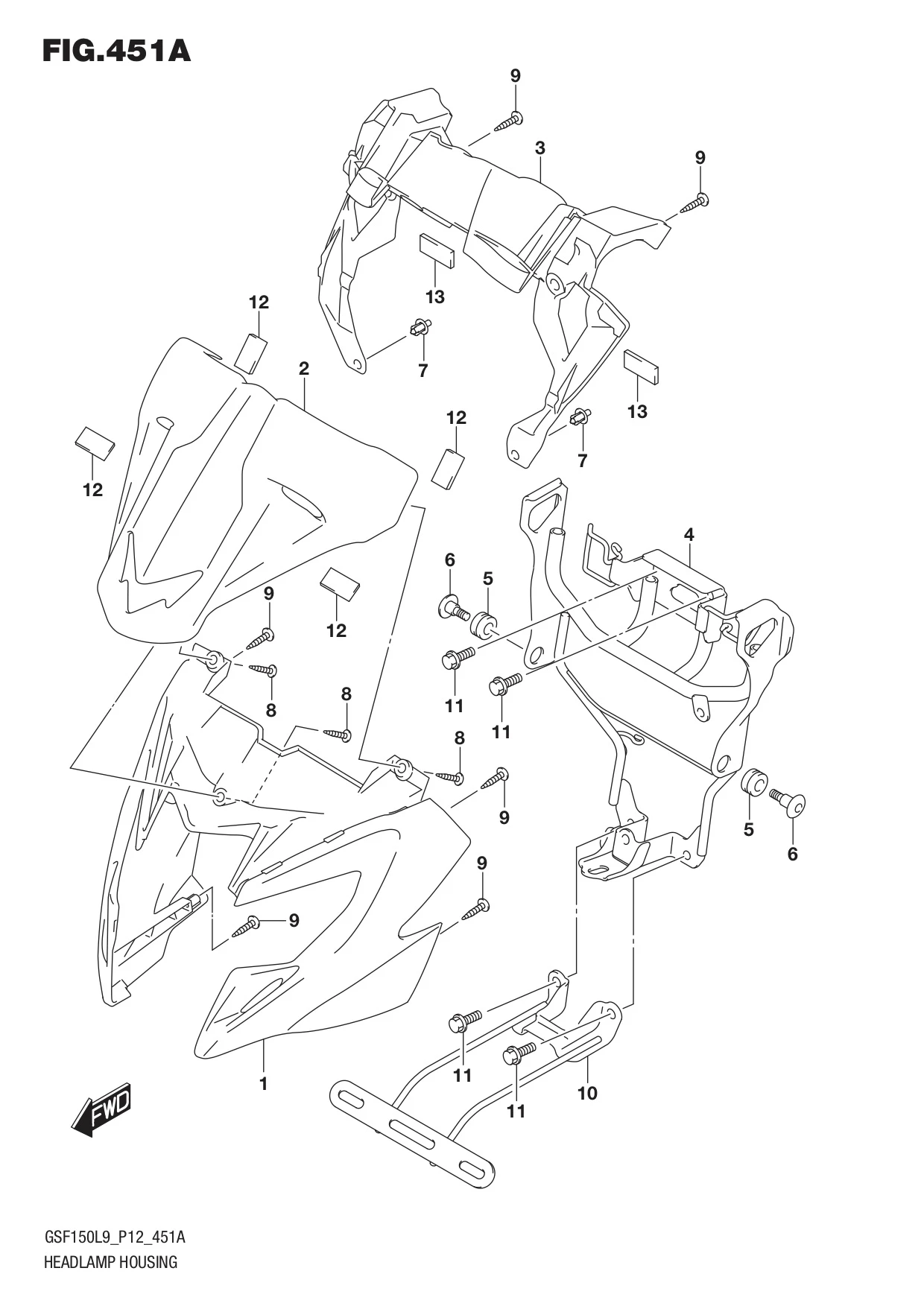

FIG. 451A HEADLAMP HOUSING

FIG. 451A HEADLAMP HOUSING
No No. Part Description Qty Price Per Pcs Remarks
1-2 51811-23KB0-YVU COVER,HEADLAMP (BLACK) 1 Rp128.500
1-2 51811-23KB0-YVU COVER,HEADLAMP (BLACK) 1 Rp128.500
1-1 51811-23KB0-291 COVER,HEADLAMP (BLACK) 1 Rp128.500
1-1 51811-23KB0-291 COVER,HEADLAMP (BLACK) 1 Rp128.500
2-3 51812-23KB0-YUH COVER,METER (WHITE) 1 Rp96.000
2-4 51812-23KB0-YZE COVER,METER (RED) 1 Rp100.000
2-3 51812-23KB0-YUH COVER,METER (WHITE) 1 Rp96.000
2-2 51812-23KB0-YVU COVER,METER (BLACK) 1 Rp95.500
2-1 51812-23KB0-YMC COVER,METER (SILVER) 1 Rp96.500
2-1 51812-23KB0-YMC COVER,METER (SILVER) 1 Rp96.500
2-4 51812-23KB0-YZE COVER,METER (RED) 1 Rp100.000
2-2 51812-23KB0-YVU COVER,METER (BLACK) 1 Rp95.500
3 51861-23KB0-000 BRACKET,METER 1 Rp54.500
3 51861-23KB0-000 BRACKET,METER 1 Rp54.500
4 51850-23KB0-000 BRACE,HEADLAMP 1 Rp153.000
4 51850-23KB0-000 BRACE,HEADLAMP 1 Rp153.000
5 09320-09016-000 CUSHION 2 Rp4.000
5 09320-09016-000 CUSHION 2 Rp4.000
6 09139-06211-000 SCREW,FRAME COVER 2 Rp6.500
6 09139-06211-000 SCREW,FRAME COVER 2 Rp6.500
7 09409-06314-5PK CLIP 2 Rp3.500
7 09409-06314-5PK CLIP 2 Rp3.500
8 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 3 Rp3.500
8 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 3 Rp3.500
9 03541-0516B-000 SCREW 6 Rp13.000
9 03541-0516B-000 SCREW 6 Rp13.000
10 51890-23KB0-000 BRACKET,FRONT LICENSE 1 Rp30.000
10 51890-23KB0-000 BRACKET,FRONT LICENSE 1 Rp30.000
11 01550-0616B-000
SUB: 01550B0616BN000		 BOLT 4 Rp5.500
11 01550-0616B-000
SUB: 01550B0616BN000		 BOLT 4 Rp5.500
12 48161-27J00-000 CUSHION 4 Rp8.000
12 48161-27J00-000 CUSHION 4 Rp8.000
13 63152-23K00-000 CUSHION, REAR FENDER FR COV LW 2 Rp4.000
13 63152-23K00-000 CUSHION, REAR FENDER FR COV LW 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
