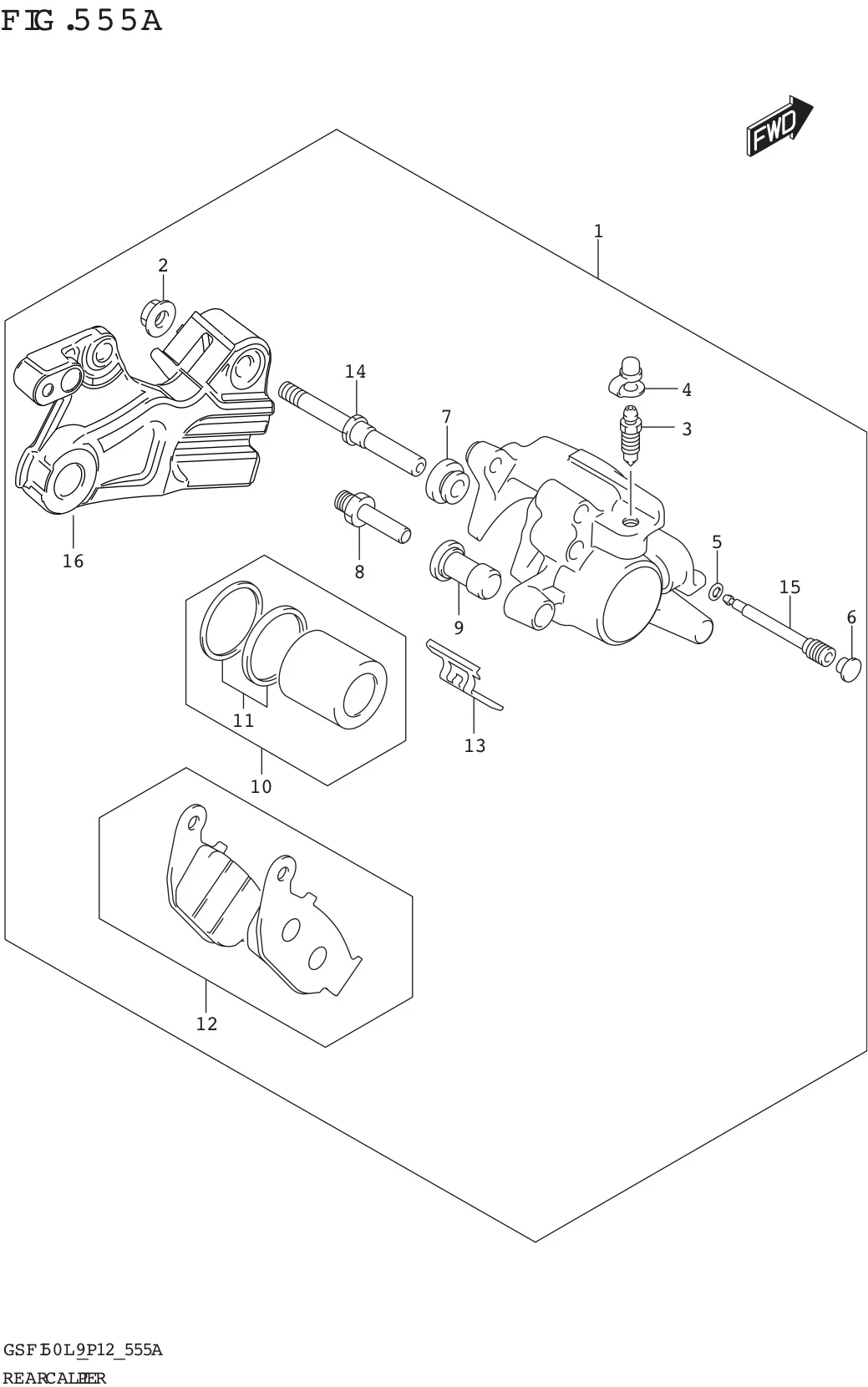

FIG. 555A REAR CALIPER

FIG. 555A REAR CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 69100-23K00-000 CALIPER ASSY, REAR 1 Rp522.000
2 51315-61J00-000 .NUT,CYLINDER PUSH ROD 1 Rp6.000
3 59121-01A00-000
SUB: 59121-01A00L000		 .BLEEDER 1 Rp14.500
4 59122-01A00-000
SUB: 59122B01A00N000		 .CAP,BLEEDER 1 Rp3.000
5 59145-37F00-000 .RING,STOPPER 1 Rp27.000
6 59146-20G00-000
SUB: 59146B20G00N000		 .PLUG,PIN 1 Rp5.500
7 59303-14500-000
SUB: 59303B14500N000		 .BOOT 1 Rp12.500
8 59382-14500-000
SUB: 59382B14500N000		 .PIN 1 Rp13.500
9 59386-13A00-000
SUB: 59386B13A00N000		 .BOOT 1 Rp14.000
10 69100-20850-000 .PISTON SET 1 Rp137.000
11 59100-38860-000
SUB: 59100B38860N000		 ..SEAL SET,PISTON 1 Rp37.500
12 69101-34810-000 .PAD SET 1 Rp85.000
13 69115-20G01-000
SUB: 69115B20G01N000		 .SPRING,PAD 1 Rp35.000
14 69187-34J00-000 .PIN 1 Rp20.500
15 69345-20G00-000
SUB: 69345B20G00N000		 .PIN,HANGER 1 Rp25.000
16 69720-23K00-000 .BRACKET 1 Rp185.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
