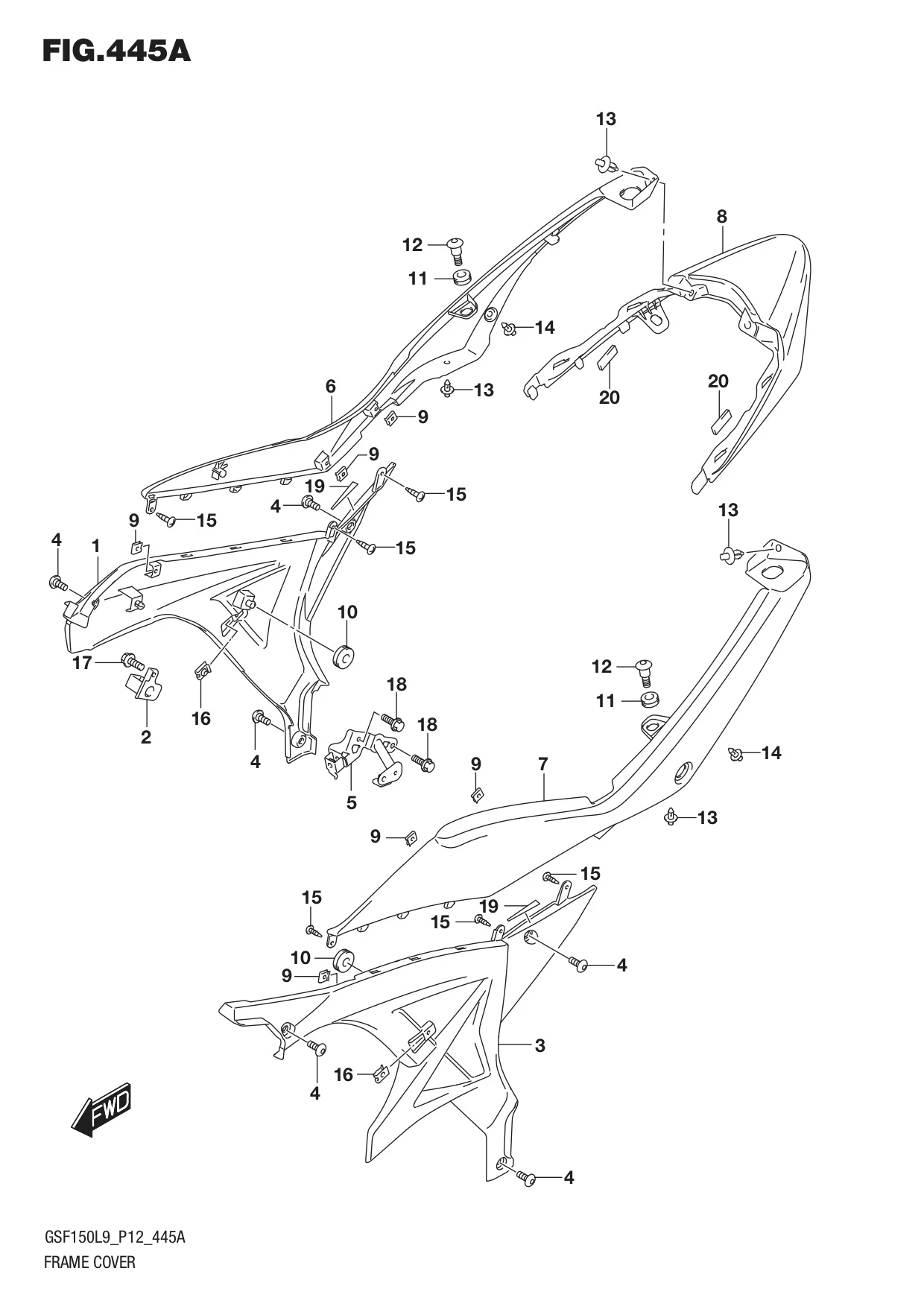

FIG. 445A FRAME COVER

FIG. 445A FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 47111-23K00-291 COVER, FRAME RH (BLACK) 1 Rp194.500
2 47160-23KA0-000 BRACKET, FRAME COVER FR RH 1 Rp22.500
3 47211-23K00-291 COVER, FRAME LH (BLACK) 1 Rp194.500
4 44513-23K00-000 SCREW, FRAME COVER 6 Rp6.500
5 47260-23KA0-000 BRACKET, FRAME COVER FR LH 1 Rp22.500
6-1 47311-23KB0-YMC COVER,FRAME UPPER RH (SILVER) 1 Rp237.000
6-2 47311-23KB0-YVU COVER,FRAME UPPER RH (BLACK) 1 Rp237.000
7-1 47411-23KB0-YMC COVER,FRAME UPPER LH (SILVER) 1 Rp237.000
7-2 47411-23KB0-YVU COVER,FRAME UPPER LH (BLACK) 1 Rp237.000
8-4 47511-23KB0-PQE COVER,FRAME UPPER CTR (YELLOW) 1 Rp88.500
8-3 47511-23KB0-YZE COVER,FRAME UPPER CTR (RED) 1 Rp88.500
8-2 47511-23KB0-291 COVER,FRAME UPPER CTR (BLACK) 1 Rp88.500
8-1 47511-23KB0-YVU COVER,FRAME UPPER CTR (BLACK) 1 Rp88.500
9 09148-04019-000
SUB: 09148B04019N000		 NUT 6 Rp6.500
10 48169-12JA0-000
SUB: 09320-08018-000		 CUSHION (8X13/2.5X26) 2 Rp15.000
11 09320-09016-000 CUSHION 2 Rp4.000
12 09139-06190-000
SUB: 09139B06190N000		 BOLT (6X20) 2 Rp7.000
13 09409-06314-5PK CLIP 4 Rp3.500
14 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 2 Rp4.000
15 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 6 Rp3.500
16 09148-05058-000
SUB: 09148B05058N000		 NUT 2 Rp15.000
17 01550-0612A-000 BOLT 1 Rp3.500
18 01550-0612A-000 BOLT 2 Rp3.500
19 47112-23K00-000 TAPE, FRAME COVER 2 Rp5.500
20 47114-23KB0-000 CUSHION,FRAME COVER SIDE 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
