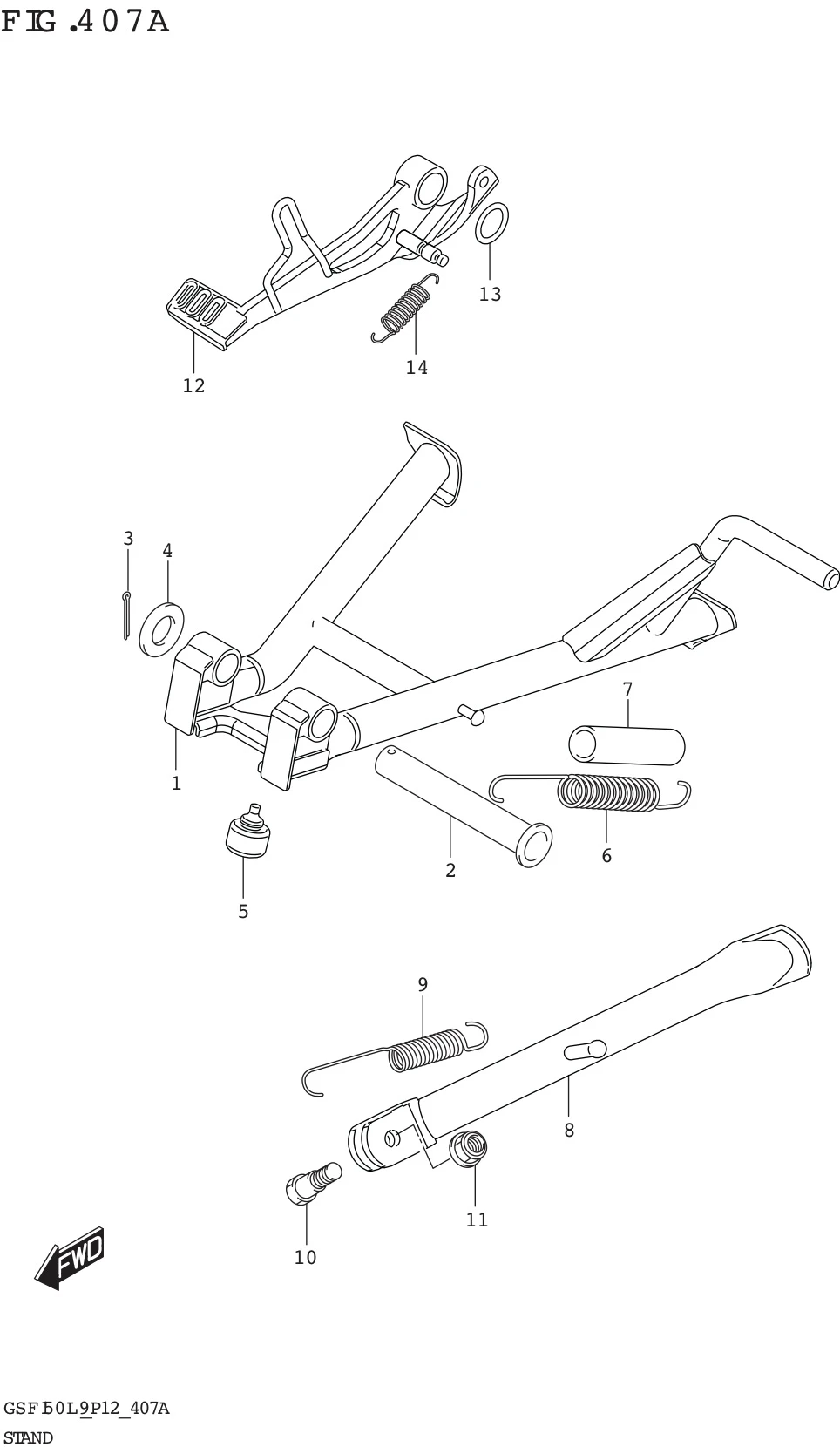

FIG. 407A STAND

FIG. 407A STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-23K00-000 STAND, CENTER 1 Rp377.500
2 42211-25G00-000
SUB: 42211B25G00N000		 SHAFT,CENTER STAND 1 Rp23.500
3 04111-3025A-000
SUB: 04111B3025AN000		 PIN 1 Rp3.500
4 08322-0116A-000
SUB: 08322B0116AN000		 WASHER 1 Rp6.500
5 42272-09J00-000 CUSHION,CTR STAND 1 Rp6.000
6 42241-23K10-000 SPRING,CENTER STAND 1 Rp23.500
7 42197-23K00-000 RUBBER,SPRING 1 Rp5.500
8 42310-23K00-000 STAND, PROP 1 Rp45.000
9 09443-14077-000 SPRING 1 Rp6.000
10 42341-40J00-000 BOLT,PROP STAND 1 Rp11.500
11 08319-3110A-000 NUT 1 Rp4.500
12 43110-23K01-000
SUB: 43110-23K00-000		 PEDAL, BRAKE 1 Rp70.500
13 09160-18022-000 WASHER (18X24X1.0) 1 Rp19.500
14 09443-11033-000 SPRING 1 Rp28.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
