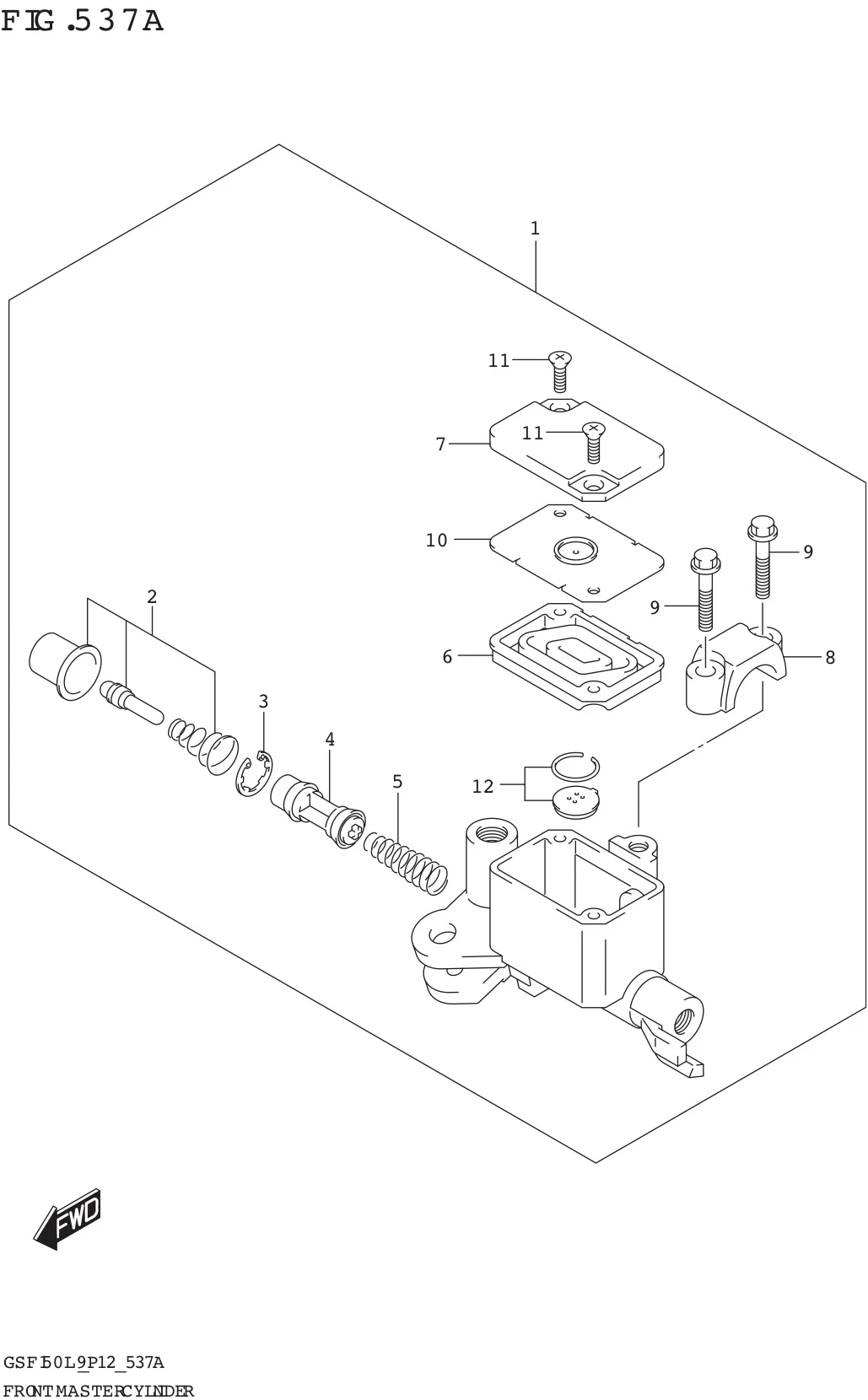

FIG. 537A FRONT MASTER CYLINDER

FIG. 537A FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59600-12K10-000 CYLINDER ASSY, FRONT MASTER 1 Rp431.500
2 59870-30H00-000 .PUSH ROD ASSY 1 Rp21.000
3 59665-30H00-000 .CIRCLIP 1 Rp10.500
4 59610-12K00-000 .PISTON ASSY 1 Rp59.500
5 57318-12K00-000 .SPRING 1 Rp8.500
6 59667-12K00-000 .DIAPHRAGM 1 Rp18.000
7 59687-23K00-000 .COVER 1 Rp44.500
8 59671-30H00-000 .CLAMP 1 Rp32.000
9 59688-30H00-000 .SCREW 2 Rp12.500
10 59668-30H00-000 .PLATE,DIAPHRAGM 1 Rp9.500
11 59691-30H00-000 .FLAT SCREW 2 Rp5.500
12 59669-30H00-000 .CAP 1 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
