Suzuki Bandit

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANK (FOR YMC)FIG. 420B FUEL TANK (FOR GTA,YVU,ATZ)FIG. 423A FUEL TANK COVERFIG. 424A FUEL TANK SIDE COVERFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 543A REAR CUSHION LEVERFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

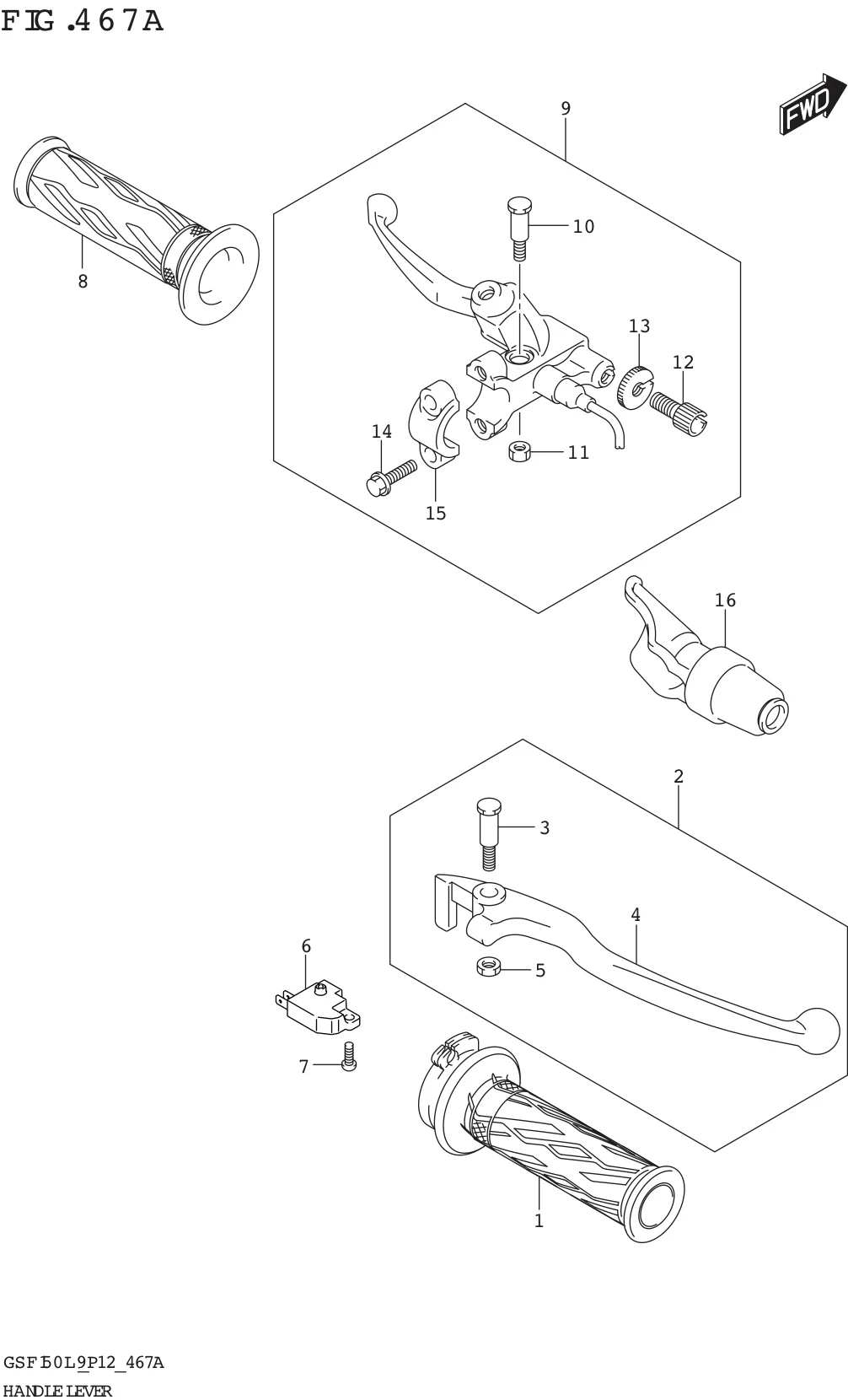

FIG. 467A HANDLE LEVER

FIG. 467A HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-23K01-000
SUB: 57110-23K00-000		 GRIP, THROTTLE 1 Rp28.500
2 57300-30H21-000 LEVER ASSY,BRAKE 1 Rp103.000
3 57431-30H20-000 .BOLT,BRAKE LEVER PIVOT 1 Rp20.500
4 57421-30H10-000 .LEVER,BRAKE 1 Rp70.000
5 57433-30H10-000 .NUT,BRAKE LEVER PIVOT 1 Rp8.500
6 57460-30H00-000 SWITCH ASSY,FRONT BRAKE 1 Rp36.500
7 57465-30H00-000 .SCREW 1 Rp6.500
8 57211-40J01-000
SUB: 57211-40J00-000		 GRIP LH 1 Rp18.500
9 57500-25G80-000 LEVER ASSY, CLUTCH 1 Rp138.000
10 57431-23F10-000
SUB: 57431B23F10N000		 .BOLT,LEVER SET 1 Rp4.500
11 57513-23F10-000
SUB: 57513B23F10N000		 .NUT,LEVER SET 1 Rp4.000
12 57441-25G00-000
SUB: 57441B25G00N000		 .ADJUSTER,WIRE 1 Rp12.500
13 57442-25G00-000
SUB: 57442B25G00N000		 .NUT,LOCK 1 Rp9.000
14 01547-0625A-000 .BOLT 2 Rp6.500
15 59671-09G30-000 .HOLDER 1 Rp14.500
16 57661-25G00-000
SUB: 57661B25G00N000		 COVER,CLUTCH LEVER 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
