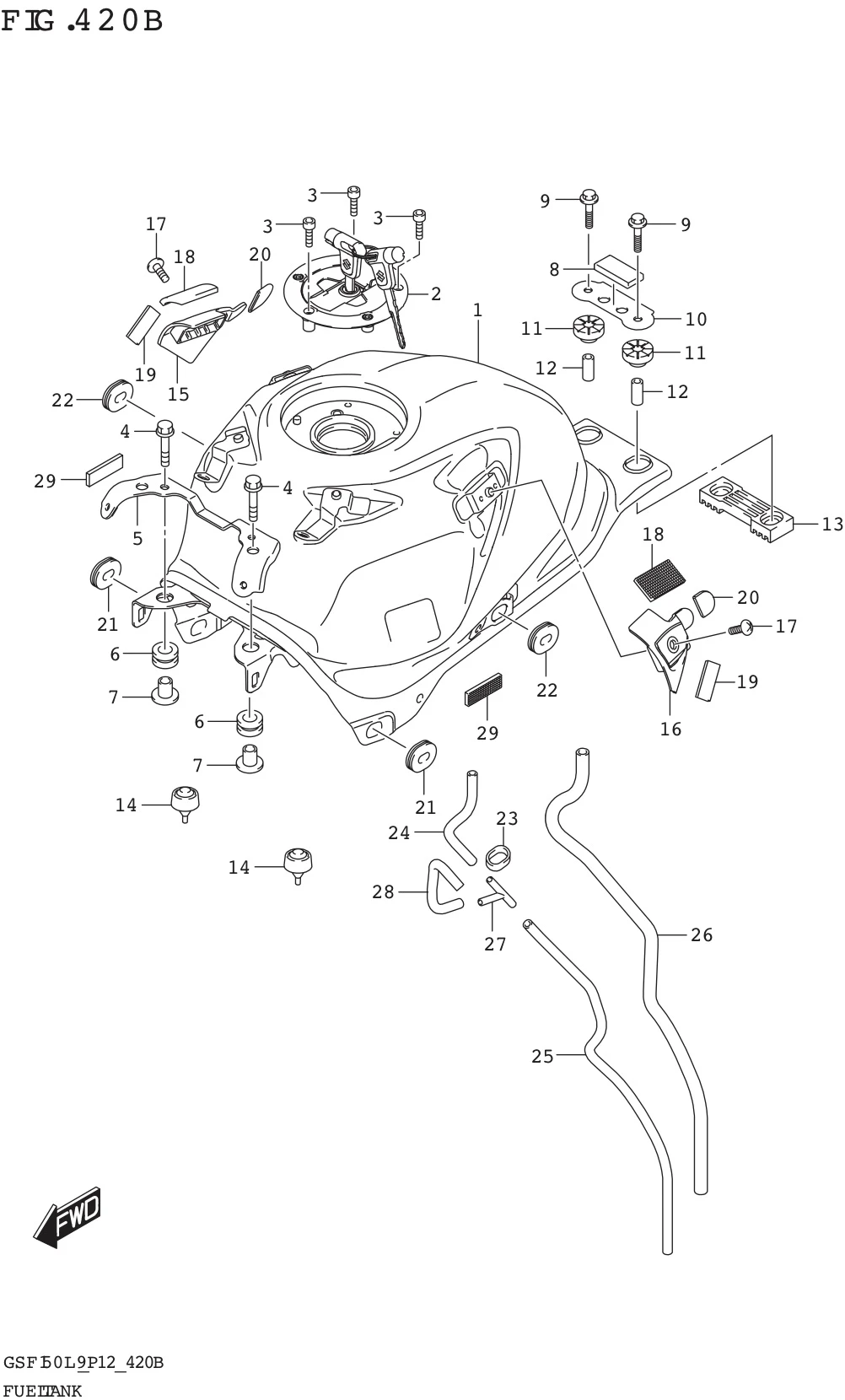

FIG. 420B FUEL TANK (FOR GTA,YVU,ATZ)

FIG. 420B FUEL TANK (FOR GTA,YVU,ATZ)
No No. Part Description Qty Price Per Pcs Remarks
1-2 44110-23K00-YVU TANK ASSY, FUEL (BLACK) 1 Rp1.912.500
1-3 44110-23K00-YUH TANK ASSY, FUEL (WHITE) 1 Rp1.912.500
1-1 44110-23K00-YZE TANK ASSY, FUEL (RED) 1 Rp1.912.500
2 44200-23870-000 CAP SET, FUEL TANK 1 Rp426.000
3 44244-23K00-000 BOLT, FUEL TANK FILLER CAP 3 Rp9.000
4 DISCONTINUE
SUB: 01550B0625AN000		 BOLT 2 -
5 47130-23KA0-000 BRACKET, FRM FR INR COVER 1 Rp15.000
6 44511-16G01-000
SUB: 44511-16G00-000		 CUSHION,FUEL TANK,FR 2 Rp7.500
7 44512-16G00-000 SPACER,FUEL TANK,FR 2 Rp52.000
8 44542-48H01-000
SUB: 44542-48H00-000		 CUSHION,FUEL TANK REAR BRKT 1 Rp7.500
9 01550-0635A-000
SUB: 01550B0635AN000		 BOLT 2 Rp3.000
10 44146-48H00-000 WASHER,FUEL TANK REAR BRKT 1 Rp38.000
11 44541-23K00-000 CUSHION, FUEL TANK RR UPPER 2 Rp9.500
12 44544-05J00-000 SPACER,REAR 2 Rp7.000
13 44542-23K10-000 CUSHION, FUEL TANK REAR LOWER 1 Rp9.500
14 44542-23K00-000 CUSHION, FUEL TANK SIDE 2 Rp4.500
15 44179-23KA0-000 BRACKET, FUEL TANK COVER RH 1 Rp22.500
16 44189-23KA0-000 BRACKET, FUEL TANK COVER LH 1 Rp22.500
17 02142-0610A-000 SCREW 2 Rp3.500
18 44572-13G00-000 FASTENER,FUEL TANK (33X25X3.0) 2 Rp64.500
19 44183-23K00-000 CUSHION, FUEL TANK SIDE COVER 2 Rp6.500
20 44294-23K00-000 CUSHION, FUEL TANK COVER REAR 2 Rp4.500
21 94478-14J00-000 CUSHION,UNDER COWL RH 2 Rp4.000
22 94478-14J00-000 CUSHION,UNDER COWL RH 2 Rp4.000
23 09352-12163-010 HOSE, BRTHR CLAMP 1 Rp4.500
24 09352-50823-160 HOSE (5X8.2X160) 1 Rp4.500
25 09352-50823-480 HOSE (5X8.2X480) 1 Rp8.000
26 09352-70L05-650 HOSE (7X11X650) 1 Rp15.000
27 09367-06007-000 3 WAY 1 Rp30.500
28 44424-23K50-000
SUB: 44424-23K10-000		 HOSE, FUEL TANK BRTHR NO.3 1 Rp7.000
29 44572-23KA0-000 FASTENER, FUEL TANK 4 Rp10.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
