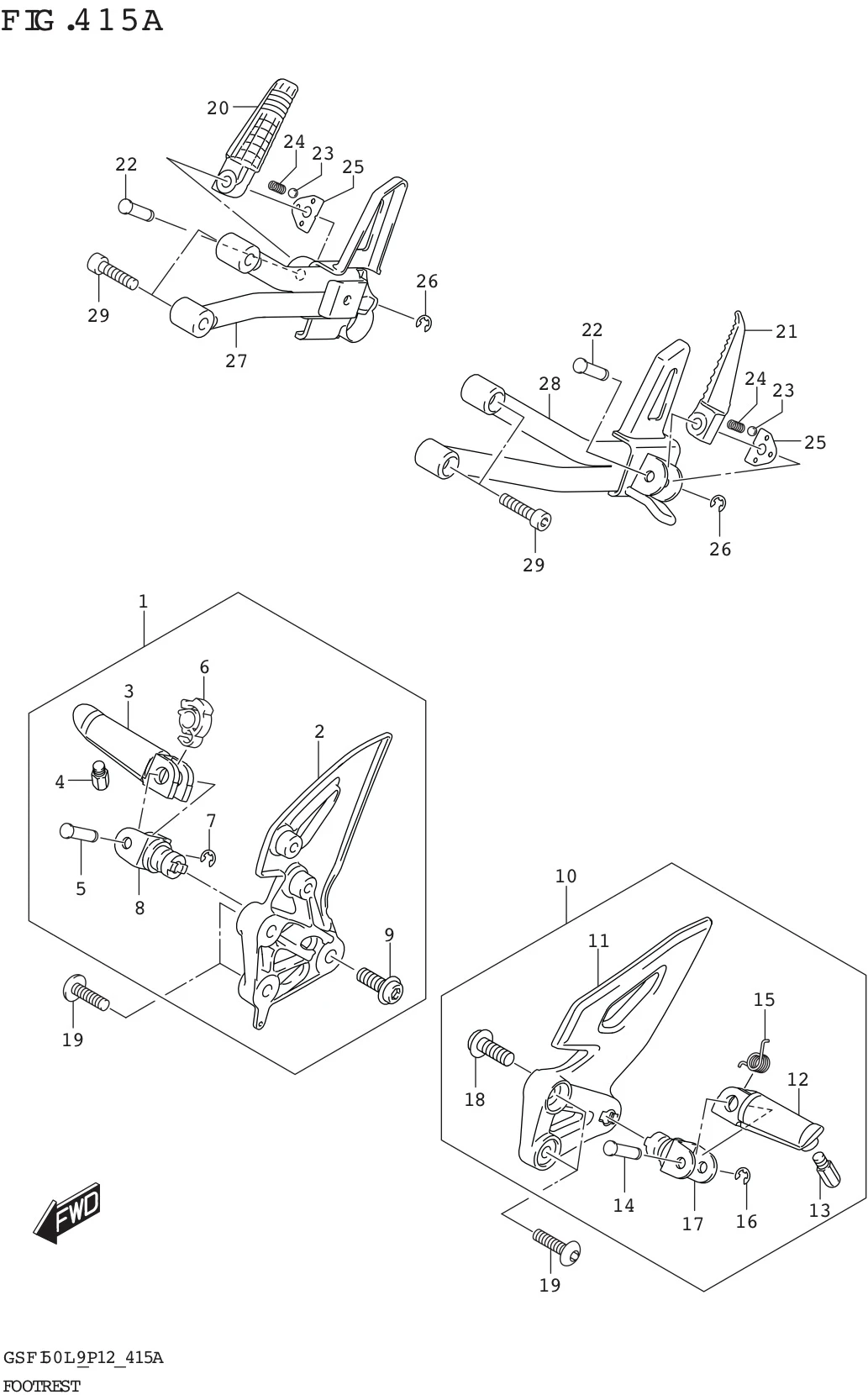

FIG. 415A FOOTREST

FIG. 415A FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43501-23K00-000 FOOTREST ASSY, FR RH 1 Rp194.000
2 43511-23K00-000
SUB: 43511-23K00-13L		 .BRACKET, FR FTRST RH 1 Rp77.500
3 43516-35F10-000 .BAR,FRONT FOOTREST RH 1 Rp67.000
4 43576-48B02-000 .BOLT,BANK SENSOR 1 Rp45.000
5 09208-08018-000 .PIN 1 Rp4.500
6 43532-34J00-000 .STOPPER,FR FOOTREST BAR 1 Rp4.500
7 08332-1106A-000
SUB: 08332B1106AN000		 .E RING 1 Rp8.500
8 43530-23K00-000 .HOLDER, FOOTREST 1 Rp37.000
9 09106-10064-000 .BOLT (10X28) 1 Rp8.000
10 43502-23K00-000 FOOTREST ASSY, FR LH 1 Rp194.000
11 43521-23K00-000
SUB: 43521-23K00-13L		 .BRACKET, FR FTRST LH 1 Rp77.500
12 43526-35F10-000 .BAR,FRONT FOOTREST LH 1 Rp65.500
13 43576-48B02-000 .BOLT,BANK SENSOR 1 Rp45.000
14 09208-08018-000 .PIN 1 Rp4.500
15 09448-14037-000 .SPRING 1 Rp4.500
16 08332-1106A-000
SUB: 08332B1106AN000		 .E RING 1 Rp8.500
17 43530-23K00-000 .HOLDER, FOOTREST 1 Rp37.000
18 09106-10064-000 .BOLT (10X28) 1 Rp8.000
19 09106-08196-000
SUB: 09106B08196N000		 BOLT (6X23) 4 Rp7.500
20 43611-23K01-000
SUB: 43611-23K00-000		 BAR, PILLION RH 1 Rp33.500
21 43621-23K01-000
SUB: 43621-23K00-000		 BAR, PILLION LH 1 Rp33.500
22 09208-08020-000
SUB: 09208B08020N000		 PIN 2 Rp6.000
23 06112-07004-000
SUB: 06112B07004N000		 BALL 2 Rp3.000
24 09440-05005-000 SPRING 2 Rp6.500
25 43816-01H02-000
SUB: 43816B01H02N000		 PLATE,PILLION FOOTREST 2 Rp8.500
26 08332-1106A-000
SUB: 08332B1106AN000		 E RING 2 Rp8.500
27 43810-23K20-000 BRACKET,PILLION FTRST RH 1 Rp183.000
28 43820-23K20-000 BRACKET,PILLION FTRST LH 1 Rp183.000
29 07130-0830A-000 BOLT 4 Rp33.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
