  5. FIG. 423A FUEL TANK COVER

Suzuki Bandit

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANK (FOR YMC)FIG. 420B FUEL TANK (FOR GTA,YVU,ATZ)FIG. 423A FUEL TANK COVERFIG. 424A FUEL TANK SIDE COVERFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 543A REAR CUSHION LEVERFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

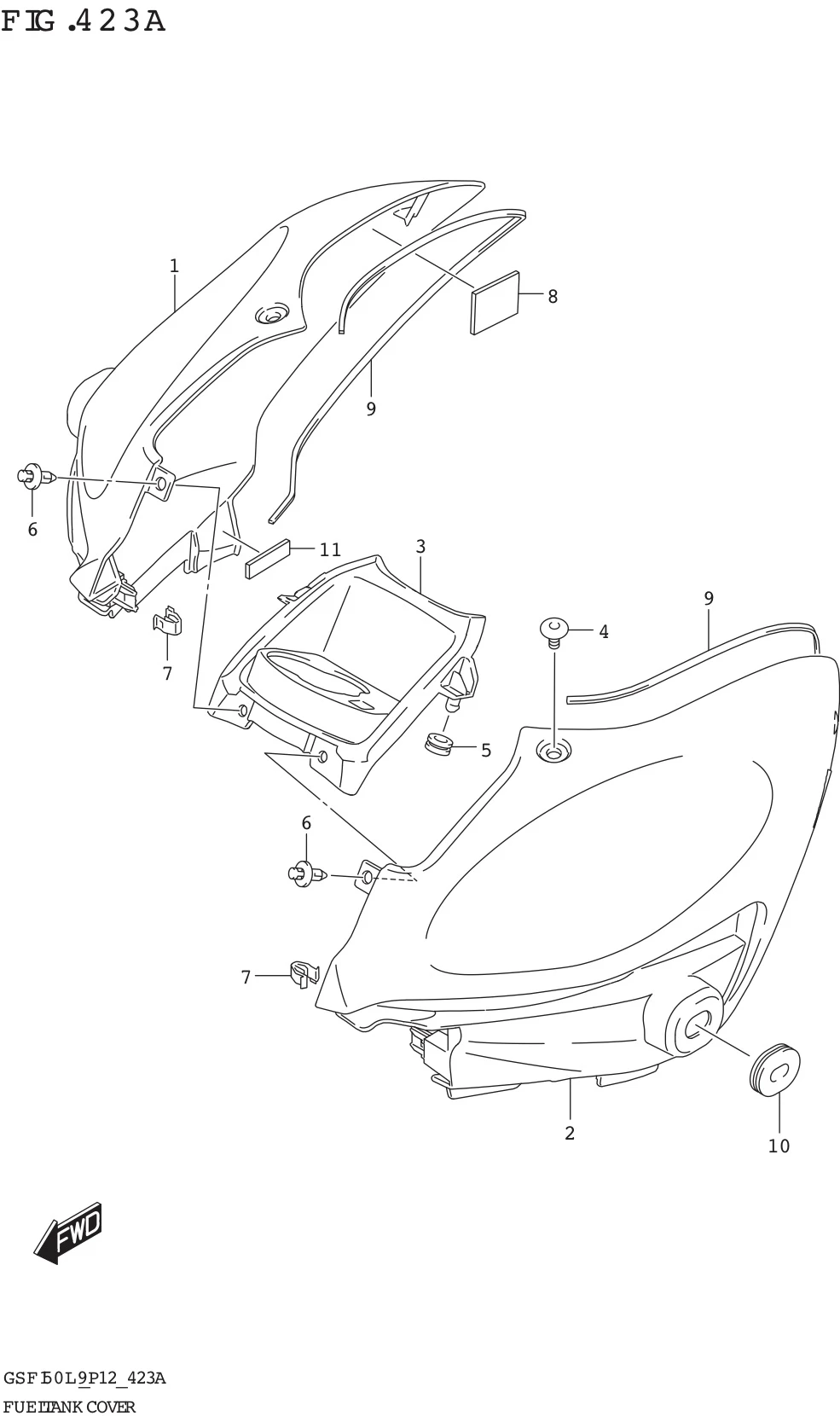

FIG. 423A FUEL TANK COVER

FIG. 423A FUEL TANK COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 44292-23KA0-YVU COVER, FUEL TANK RH (BLACK) 1 Rp154.000
1-2 44292-23KA0-YVU COVER, FUEL TANK RH (BLACK) 1 Rp154.000
1-1 44292-23KA0-YMC COVER, FUEL TANK RH (SILVER) 1 Rp154.000
1-1 44292-23KA0-YMC COVER, FUEL TANK RH (SILVER) 1 Rp154.000
2-2 44293-23KA0-YVU COVER, FUEL TANK LH (BLACK) 1 Rp154.000
2-2 44293-23KA0-YVU COVER, FUEL TANK LH (BLACK) 1 Rp154.000
2-1 44293-23KA0-YMC COVER, FUEL TANK LH (SILVER) 1 Rp154.000
2-1 44293-23KA0-YMC COVER, FUEL TANK LH (SILVER) 1 Rp154.000
3 44291-23KA0-000 COVER, FUEL TANK CENTER 1 Rp56.000
3 44291-23KA0-000 COVER, FUEL TANK CENTER 1 Rp56.000
4 44295-23K00-000 SCREW, FUEL TANK COVER 2 Rp7.500
4 44295-23K00-000 SCREW, FUEL TANK COVER 2 Rp7.500
5 09320-06027-000
SUB: 09320-06016-000		 CUSHION 2 Rp3.500
5 09320-06027-000
SUB: 09320-06016-000		 CUSHION 2 Rp3.500
6 09409-06314-5PK CLIP 2 Rp3.500
6 09409-06314-5PK CLIP 2 Rp3.500
7 09409-08326-000 CLIP (10.5X14.3) 2 Rp8.000
7 09409-08326-000 CLIP (10.5X14.3) 2 Rp8.000
8 44572-13G00-000 FASTENER,FUEL TANK (33X25X3.0) 4 Rp64.500
8 44572-13G00-000 FASTENER,FUEL TANK (33X25X3.0) 4 Rp64.500
9 44277-23K00-000 CUSHION, FUEL TANK SIDE COVER 2 Rp5.500
9 44277-23K00-000 CUSHION, FUEL TANK SIDE COVER 2 Rp5.500
10 94478-14J00-000 CUSHION,UNDER COWL RH 2 Rp4.000
10 94478-14J00-000 CUSHION,UNDER COWL RH 2 Rp4.000
11 44572-23KA0-000 FASTENER, FUEL TANK 2 Rp10.000
11 44572-23KA0-000 FASTENER, FUEL TANK 2 Rp10.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
