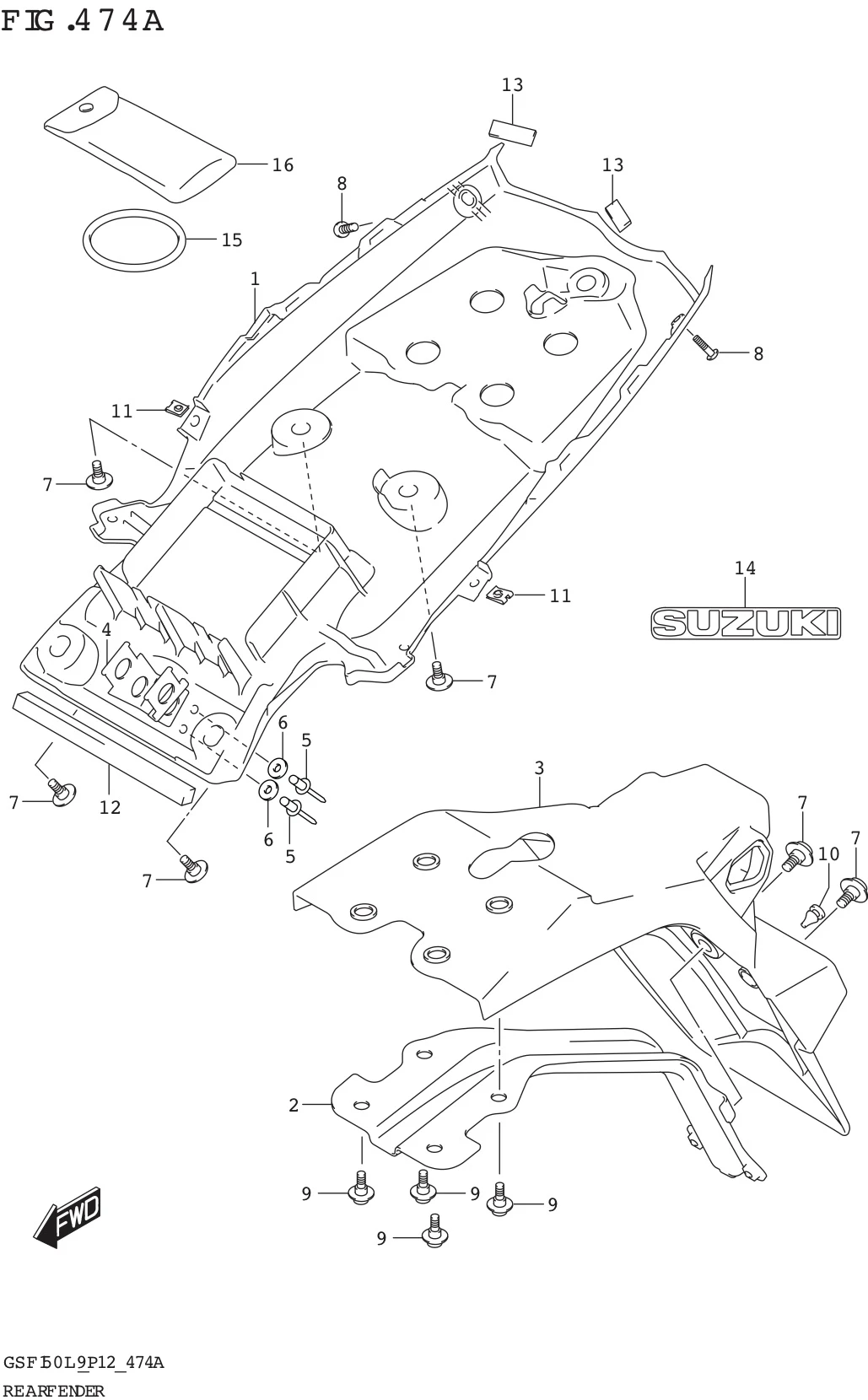

FIG. 474A REAR FENDER

FIG. 474A REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-23KB0-000 FENDER,REAR FRONT 1 Rp73.000
2 63130-23KB0-000 BRACE,REAR FENDER 1 Rp106.500
3 63141-23KB0-000 FENDER,REAR REAR 1 Rp83.500
4 63112-23K00-000 BRACKET, REAR FENDER FRONT 1 Rp10.500
5 09229-03019-000 RIVET 2 Rp15.500
6 63113-23K00-000 WASHER, REAR FENDER FR BRKT 2 Rp5.000
7 09111-06102-000 BOLT (6X14.8) 6 Rp3.500
8 03541-0516B-000 SCREW 2 Rp13.000
9 09111-06072-000 BOLT (6X17.8) 4 Rp3.500
10 63312-23K00-000 CUSHION, LICENSE PLATE 1 Rp7.500
11 09148-05038-000
SUB: 09148B05038N000		 NUT (M5) 2 Rp4.000
12 63151-23K00-000 CUSHION, REAR FENDER FRONT 1 Rp4.000
13 63152-23K00-000 CUSHION, REAR FENDER FR COV LW 2 Rp4.000
14 68171-23K20-000
SUB: 68171-23K00-000		 EMBLEM,"SUZUKI" 1 Rp11.000
15 47435-23KB0-000 BAND,TOOL 1 Rp87.000
16 96510-23K00-000 TOOL ASSY 1 Rp42.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
