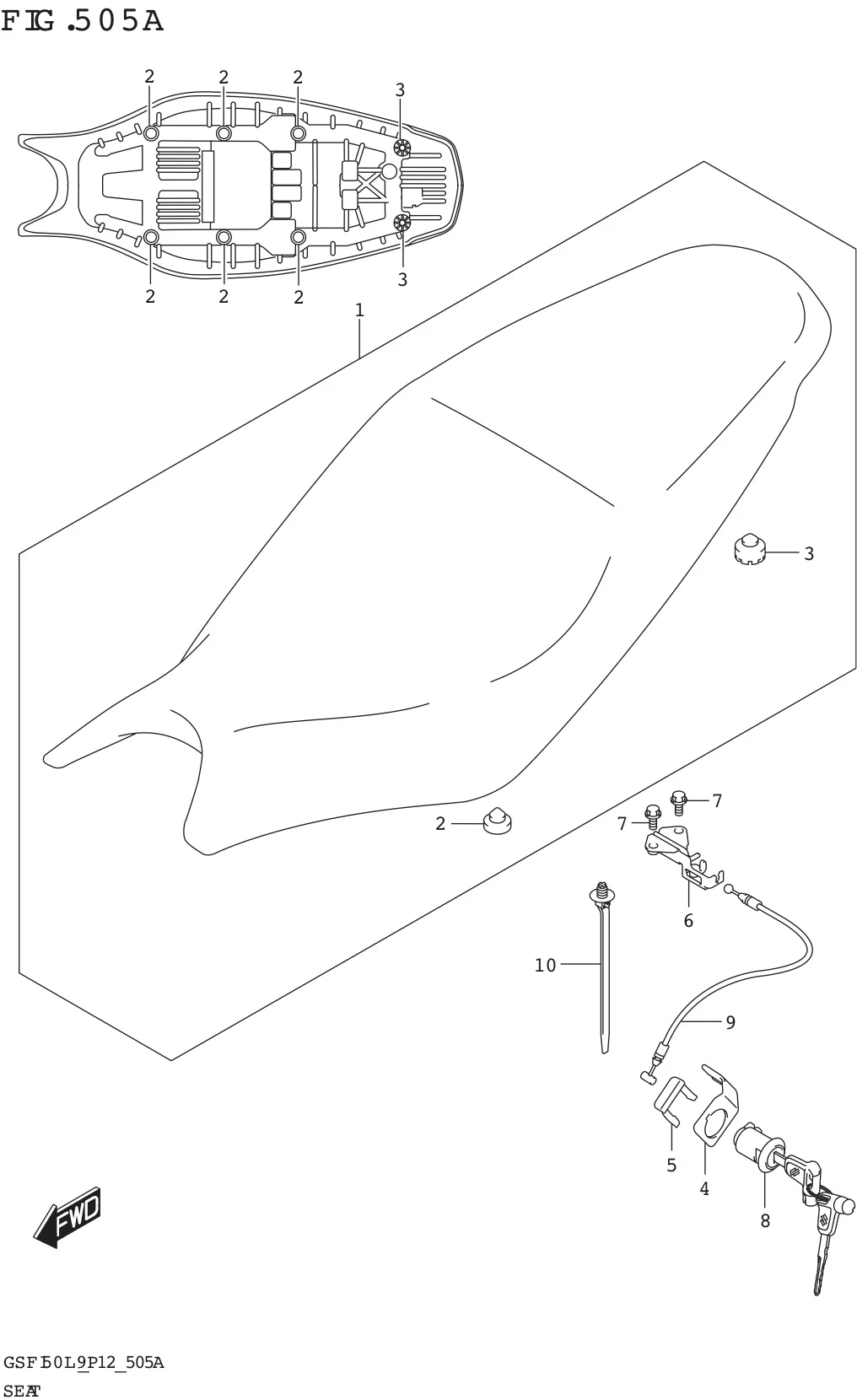

FIG. 505A SEAT

FIG. 505A SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-23KB0-W7T SEAT ASSY (BLACK) 1 Rp336.500
2 45148-23J00-000 .CUSHION,SEAT MOUNT 6 Rp4.500
3 45148-20G80-000
SUB: 45148B20G80N000		 .CUSHION,SEAT MOUNT 2 Rp3.500
4 45288-20G10-000 GUIDE,SEAT LOCK CABLE 1 Rp5.500
5 45289-11F00-000
SUB: 45289B11F00N000		 PLATE,SEAT LOCK ASSY 1 Rp4.000
6 45220-04K50-000 BRACKET,STRIKER SUPPORT 1 Rp23.500
7 01550-0612A-000 BOLT 2 Rp3.500
8 95700-09890-000 LOCK ASSY,SEAT 1 Rp135.500
9 45280-23KB0-000 CABLE,SEAT LOCK 1 Rp17.500
10 09407-17403-000 CLAMP (L:154) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
