Suzuki Bandit

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANK (FOR YMC)FIG. 420B FUEL TANK (FOR GTA,YVU,ATZ)FIG. 423A FUEL TANK COVERFIG. 424A FUEL TANK SIDE COVERFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 543A REAR CUSHION LEVERFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

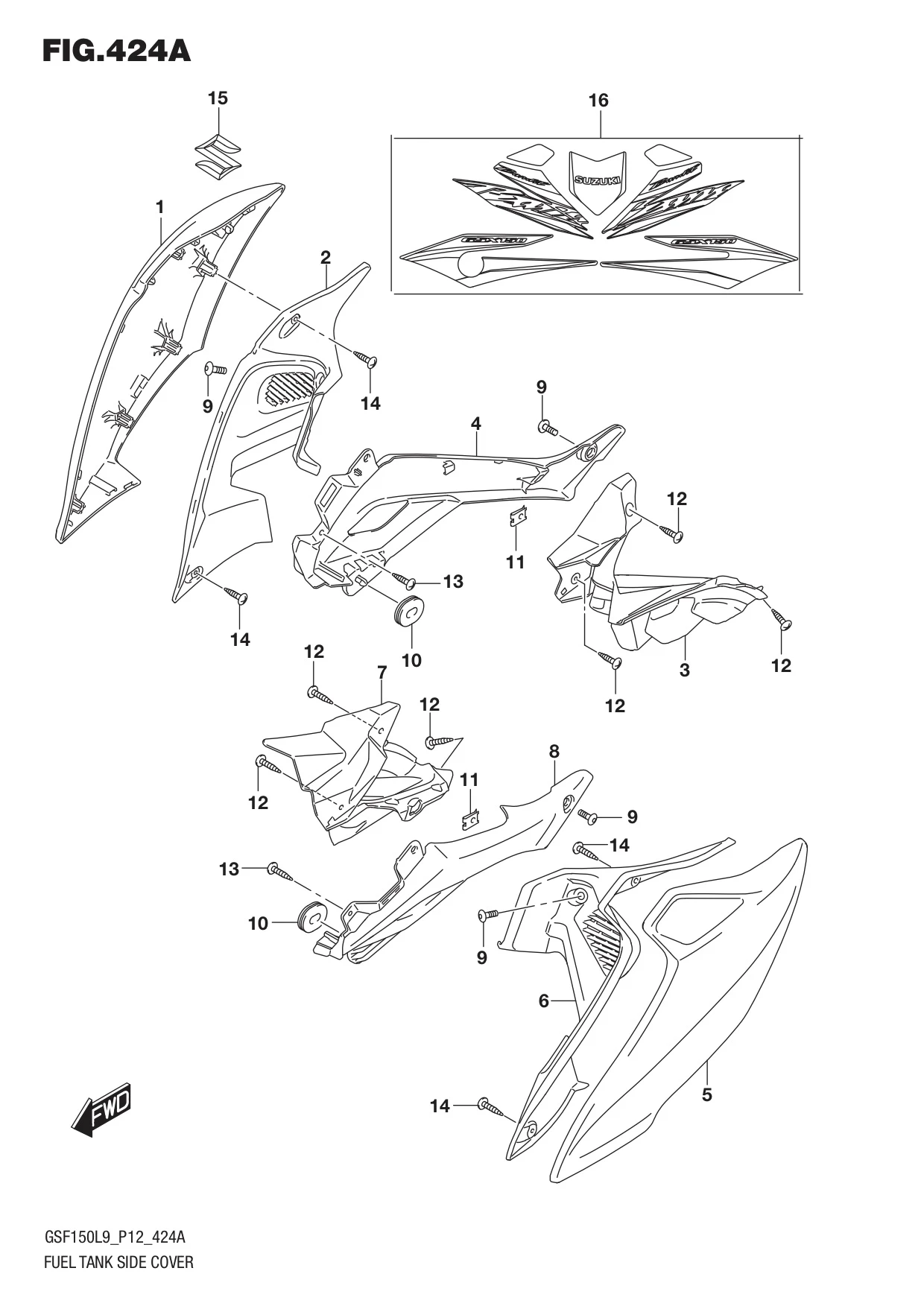

FIG. 424A FUEL TANK SIDE COVER

FIG. 424A FUEL TANK SIDE COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 47121-23KA0-YMC COVER, FRAME FRONT RH (SILVER) 1 Rp125.500
1-3 47121-23KA0-YZE COVER, FRAME FRONT RH (RED) 1 Rp125.500
1-4 47121-23KA0-YUH COVER, FRAME FRONT RH (WHITE) 1 Rp125.500
1-1 47121-23KA0-YVU COVER, FRAME FRONT RH (BLACK) 1 Rp125.500
2 47131-23KA0-000 COVER, FRAME FRONT INNER RH 1 Rp107.500
3 47141-23KA0-000 COVER, FRAME FRONT MIDDLE RH 1 Rp107.500
4 47151-23KA0-000 COVER, FRAME FRONT LOWER RH 1 Rp107.500
5-1 47221-23KA0-YVU COVER, FRAME FRONT LH (BLACK) 1 Rp125.500
5-2 47221-23KA0-YMC COVER, FRAME FRONT LH (SILVER) 1 Rp125.500
5-3 47221-23KA0-YZE COVER, FRAME FRONT LH (RED) 1 Rp125.500
5-4 47221-23KA0-YUH COVER, FRAME FRONT LH (WHITE) 1 Rp125.500
6 47231-23KA0-000 COVER, FRAME FRONT INNER LH 1 Rp107.500
7 47241-23KA0-000 COVER, FRAME FRONT MIDDLE LH 1 Rp107.500
8 47251-23KA0-000 COVER, FRAME FRONT LOWER LH 1 Rp107.500
9 44514-23K00-000 SCREW, FRAME COVER FRONT 4 Rp6.500
10 94478-14J00-000 CUSHION,UNDER COWL,RH 2 Rp4.000
11 09148-04019-000
SUB: 09148B04019N000		 NUT 2 Rp6.500
12 03541-0416A-000 SCREW 6 Rp3.500
13 03541-0416A-000 SCREW 2 Rp3.500
14 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 4 Rp4.500
15 68641-23K10-000 EMBLEM, "S" 2 Rp21.500
16-1 68018-23K60-YVU STRIPPING SET (TITAN BLACK) 1 Rp100.500
16-2 68018-23K60-YMC STRIPPING SET (MET.MAT TITANIUM SILVER) 1 Rp100.500
16-3 68018-23K60-GTA STRIPPING SET (RED/BLACK) 1 Rp100.500
16-4 68018-23K60-ATZ STRIPPING SET (YELLOW/WHITE) 1 Rp100.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
