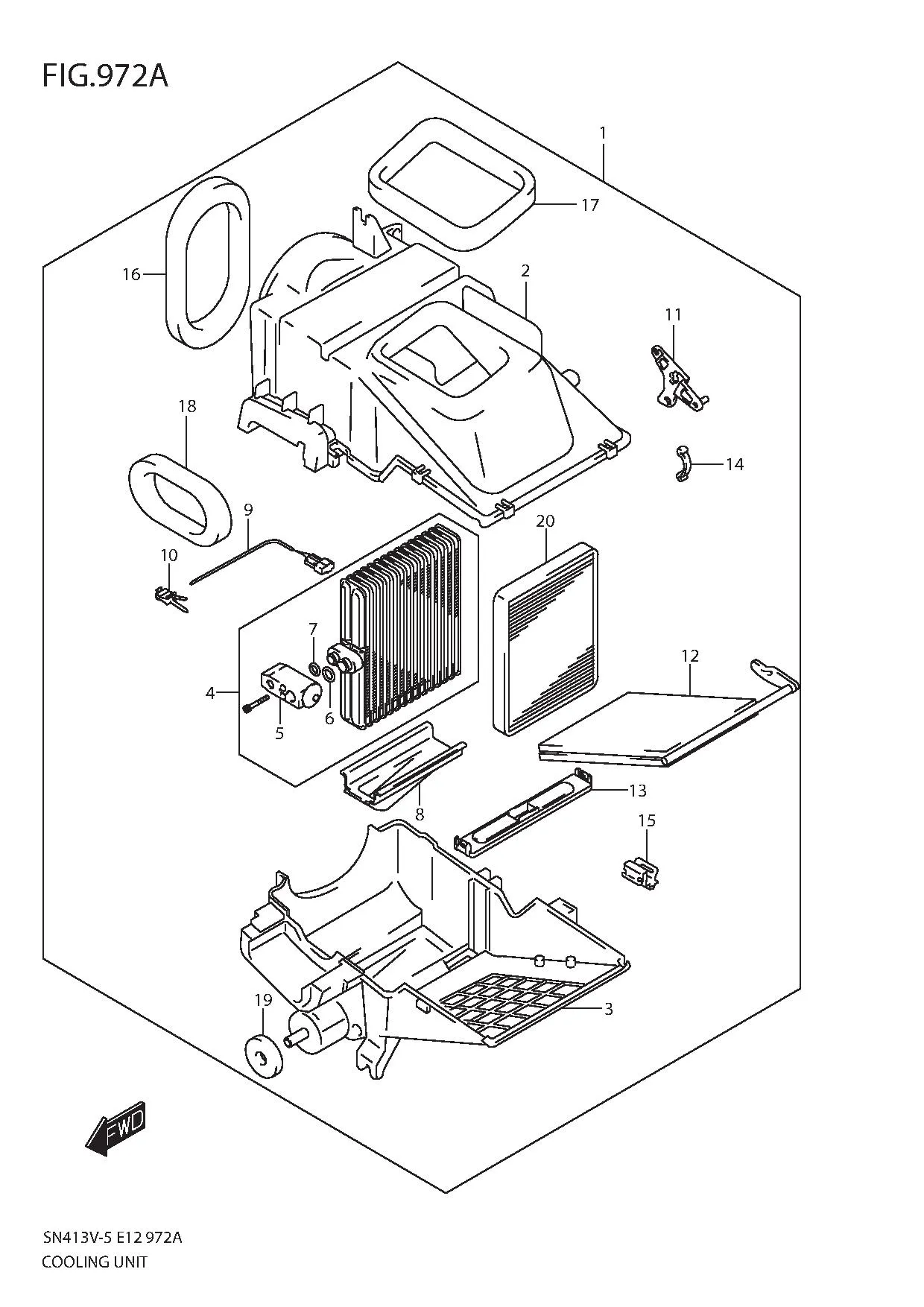

FIG.972A COOLING UNIT

FIG.972A COOLING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 95400-81815-000 COOLING UNIT 1 Rp9.069.500
2 95421-81A01-000 •CASE, EVAP UPPER 1 Rp905.500
3 95422-81A00-000 •CASE, EVAP LOWER 1 Rp905.500
4 DISCONTINUE
SUB: 95410-81A50-000		 •EVAPORATOR ASSY 1 -
5 DISCONTINUE
SUB: 95431-81A00-000		 ••VALVE, EXPANSION 1 -
6 95895-50G00-000
SUB: 95895B50G00N000		 ••O RING (D:2.4,ID:10.8) 1 Rp12.500
7 95896-50G00-000
SUB: 95896B50G00N000		 ••O RING (D:2.4,ID:13.4) 1 Rp19.000
8 95461-81A02-000 •PACKING, CORE LOWER 1 Rp138.000
9 95541-81A02-000 •THERMISTOR 1 Rp277.500
10 DISCONTINUE
SUB: 95452-70B21L000		 •CLAMP, THERMISTOR 1 -
11 74281-81A00-000 •LINK, DOOR 1 Rp100.500
12 74270-81A01-000 •DOOR SET, AIR INLET 1 Rp440.000
13 DISCONTINUE
SUB: 95423-81A01-000		 •COVER, FILTER 1 -
14 DISCONTINUE
SUB: 74316-85500L000		 •CLAMP 9 -
15 DISCONTINUE
SUB: 74151-50F00-000		 •CLAMP 1 -
16 DISCONTINUE
SUB: 95461-70B01-000		 •PACKING 1 -
17 95462-80F00-000 •PACKING (420X10X20) 1 Rp167.000
18 95465-78F10-000 •PACKING, DASH 1 Rp149.500
19 95466-81A00-000 •PACKING, DRAIN 1 Rp63.500
20 95860-81A10-000 •FILTER 1 Rp609.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
